high speed comparator, SGM8745 Replace TP1962.
SGM8745
SGM8745.pdf
SGM8745.pdfFEATURES
? Fast, 6ns Propagation Delay (100mV Overdrive)
? Low Power Consumption:2.6mA (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Internal Hysteresis for Clean Switching
? Output Swing to within 195mV from Rails with
4mA Output Current
? CMOS/TTL-Compatible Outputs
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages
PIN CONFIGUTION
優勢替代
FEATURES
? Ultra-Fast, 7ns Propagation Delay
? Ideal for +3V and +5V Single-Supply Applications
? Offset Voltage: ± 6.0 mV Maximum
? Rail to Rail Input and Output
? 7.5mV Internal Hysteresis for Clean Switching
? Push-Pull, CMOS/TTL Compatible Output
? Input Common-Mode Range Extends 300 mV
? No Phase Reversal for Overdriven Inputs
? Shut-down Function (TP1961N Only)
? Supply Voltage: 2.5V to 5.5V
? Green, Space-Saving SOT23-5 Package Available

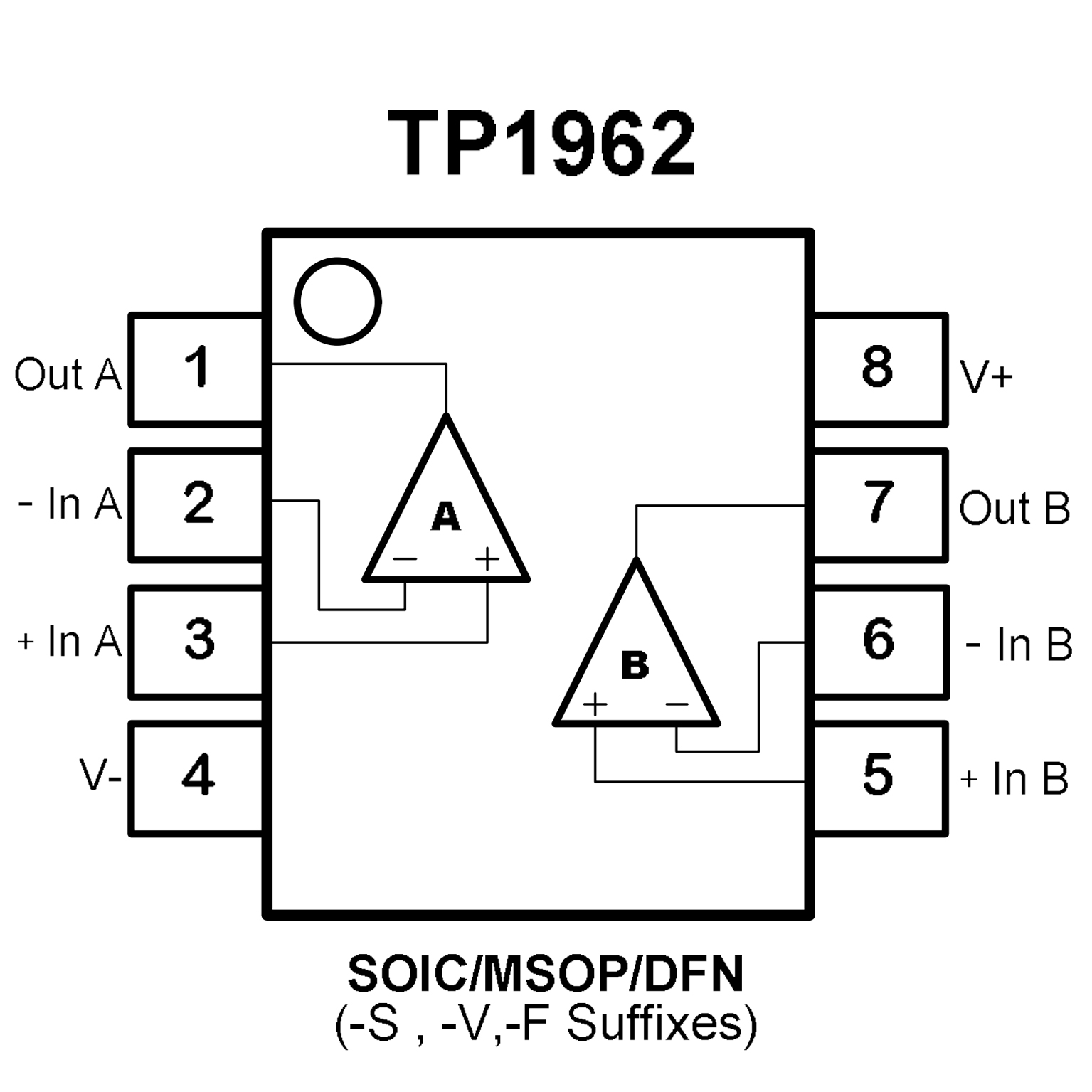

PIN CONFIGUTION
