Low power comparator,SGM8712 Replace TP2012.
SGM8712
SGM8712.pdf
SGM8712.pdfFEATURES
? Ultra Low Power Consumption:
300nA/Channel (TYP) at VS = 1.4V
? Wide Supply Voltage Range: 1.4V to 5.5V
? Propagation Delay: 6μs (TYP) at VS = 1.4V
? Push-Pull Output Current Drive:
19mA (TYP) at VS = 5V
? Rail-to-Rail Input and Output
? -40℃ to +85℃ Operating Temperature Range
? Available in Green MSOP-8 Package
PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Ultra-Low Supply Current: 200 nA per channel
? Fast Response Time: 13 μs Propagation Delay,
with 100 mV Overdrive
? Internal Hysteresis for Clean Switching
? Offset Voltage: ± 2.0 mV Maximum
? Offset Voltage Temperature Drift: 0.3 μV/°C
? Input Bias Current: 6 pA Typical
? Input Common-Mode Range Extends 200 mV
? Push-Pull Output with ±25 mA Drive Capability
? Output Latch (TP2011N Only)
? No Phase Reversal for Overdriven Inputs
? Low Supply Voltage: 1.6V to 5.5V

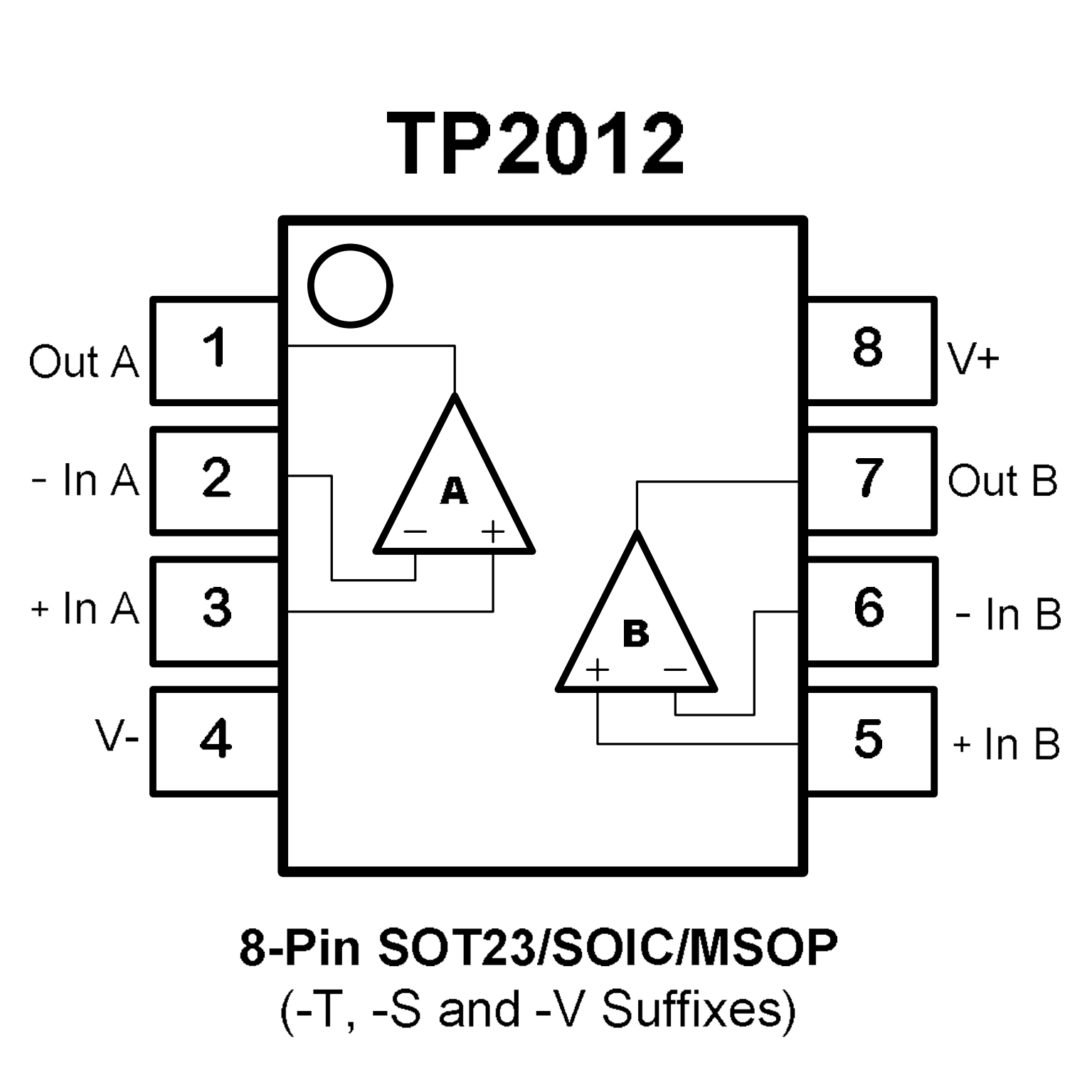

PIN CONFIGUTION
