Low power comparator, SGM8701 Replace TP2021.
SGM8701
SGM8701.pdf
SGM8701.pdfFEATURES
? Ultra Low Power Consumption:
300nA (TYP) at VS = 1.4V
? Wide Supply Voltage Range: 1.4V to 5.5V
? Propagation Delay: 6μs (TYP) at VS = 1.4V
? Push-Pull Output Current Drive:
19mA (TYP) at VS = 5V
? Rail-to-Rail Input
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and SC70-5 Packages
PIN CONFIGUTION
優勢替代
FEATURES
? Ultra-Low Supply Current:
390 nA Comparator with Reference
? Internal 1.248V ± 1.4% Reference
? Fast Response Time: 13 μs Propagation Delay,
with 100 mV Overdrive
? Internal Hysteresis for Clean Switching
? Offset Voltage: ± 2.0 mV Maximum
? Offset Voltage Temperature Drift: 0.3 μV/°C
? Input Bias Current: 6 pA Typical
? Input Common-Mode Range Extends 200 mV
? Push-Pull Output with ±25 mA Drive Capability
? Open-Drain Output Version Available: TP2025
? No Phase Reversal for Overdriven Inputs
? Low Supply Voltage: 1.8V to 5.5V
? Green, Space-Saving SC70/SOT23 Package

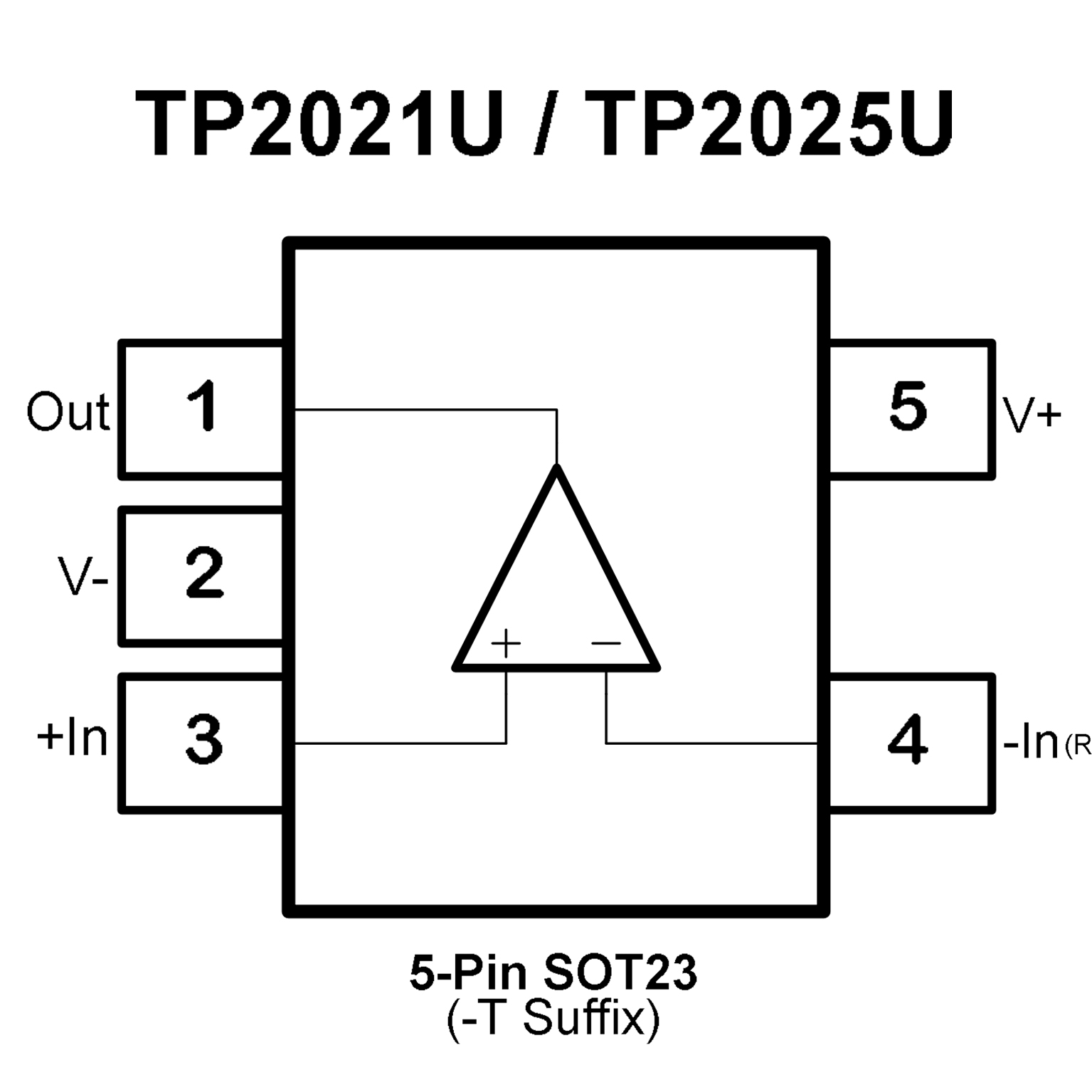

PIN CONFIGUTION
