470μA, 6MHz, Rail-to-Rail I/OCMOS Operational Amplifier,SGM8634XS14 Replace OPA4340UA.
SGM8634XS14
SGM8634XS14.pdf
SGM8634XS14.pdfFEATURES
? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 2.1μs
? Overload Recovery Time: 0.9μs
? Low Noise: 12nV/Hz
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 470μA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TSSOP-14 and SOIC-14 Packages

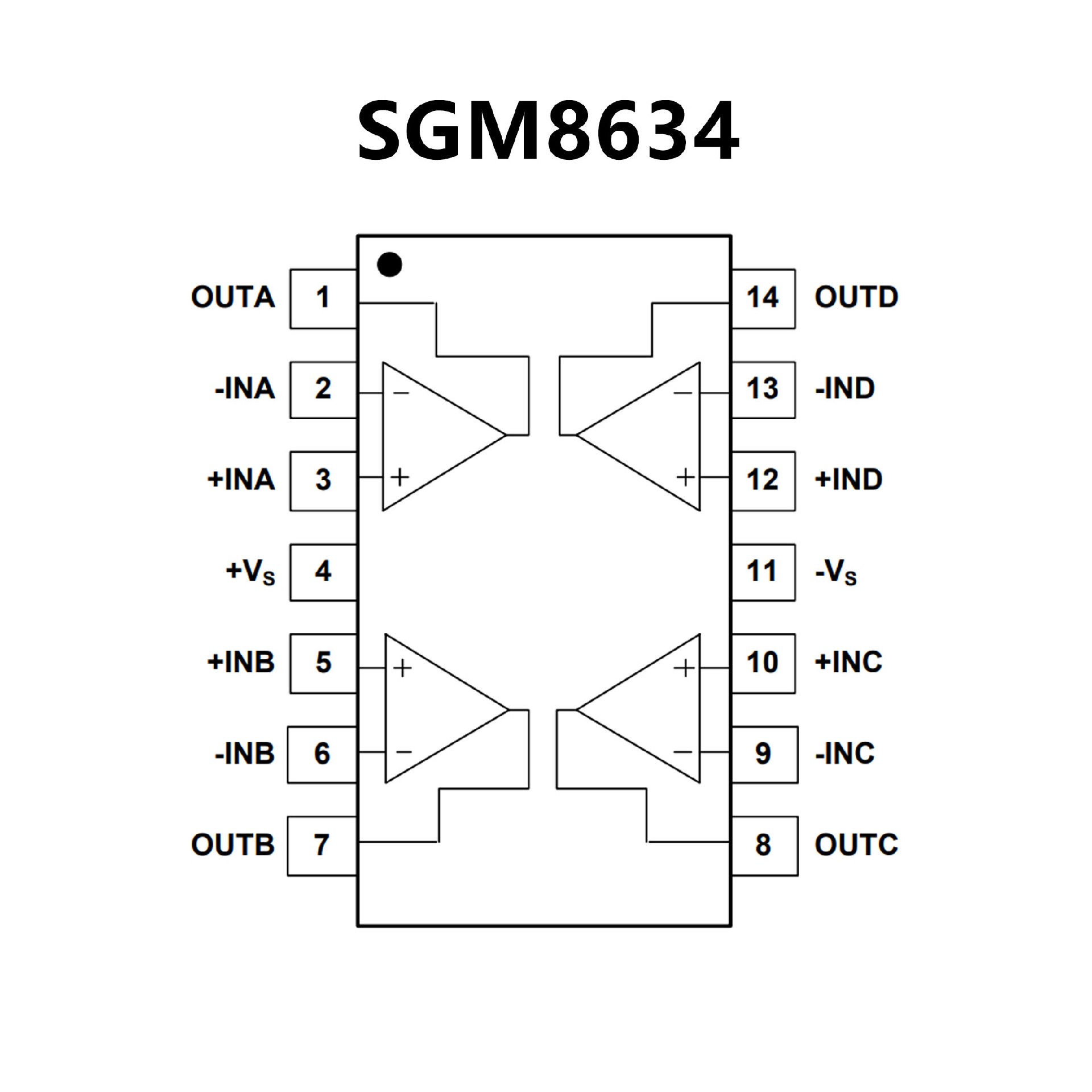

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Rail-to-Rail Input
? Rail-to-Rail Output (Within 1 mV)
? MicroSize Packages
? Wide Bandwidth: 5.5 MHz
? High Slew Rate: 6 V/μs
? Low THD + Noise: 0.0007% (f = 1 kHz)
? Low Quiescent Current: 750 μA/Channel
? Single, Dual, and Quad Versions

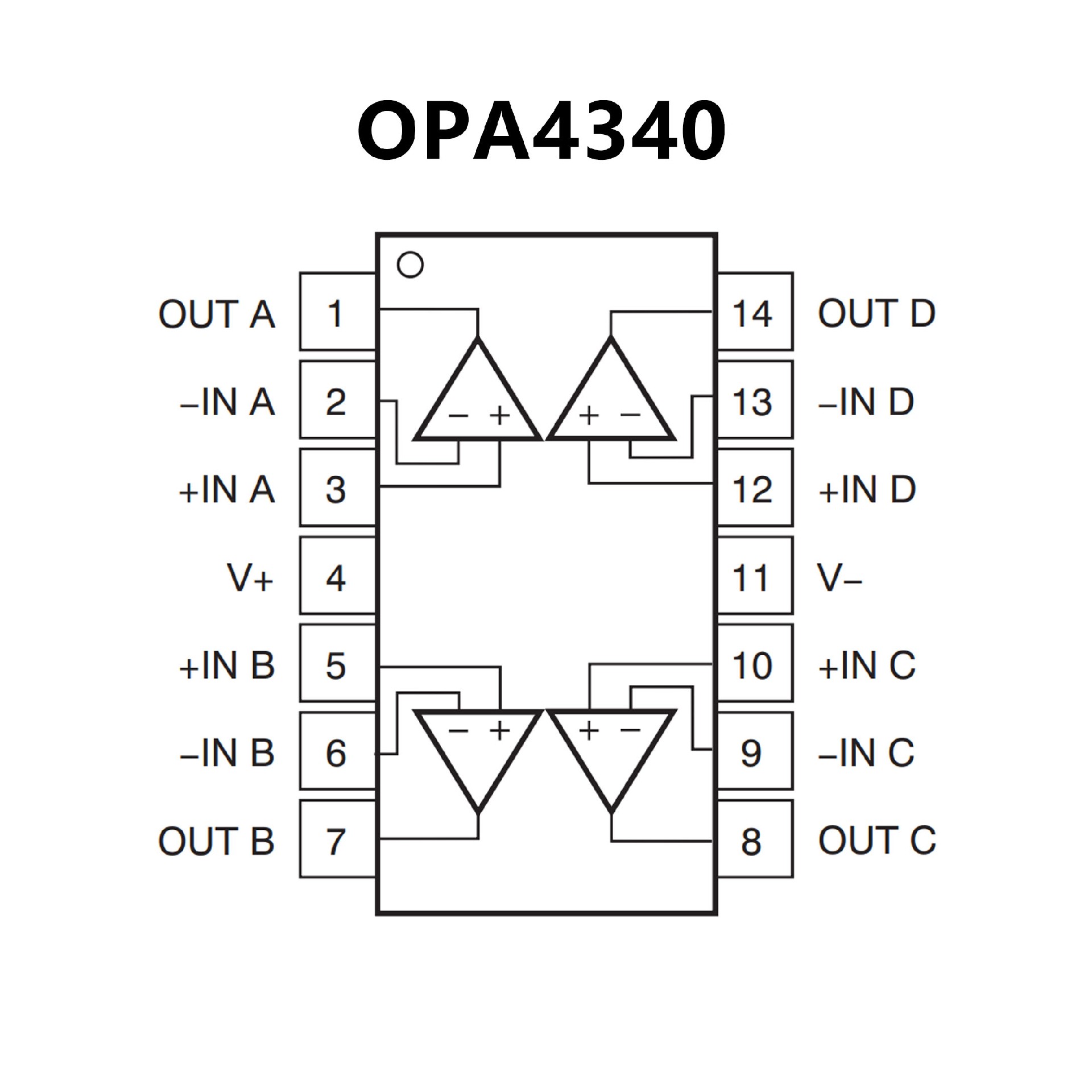

PIN CONFIGUTION
