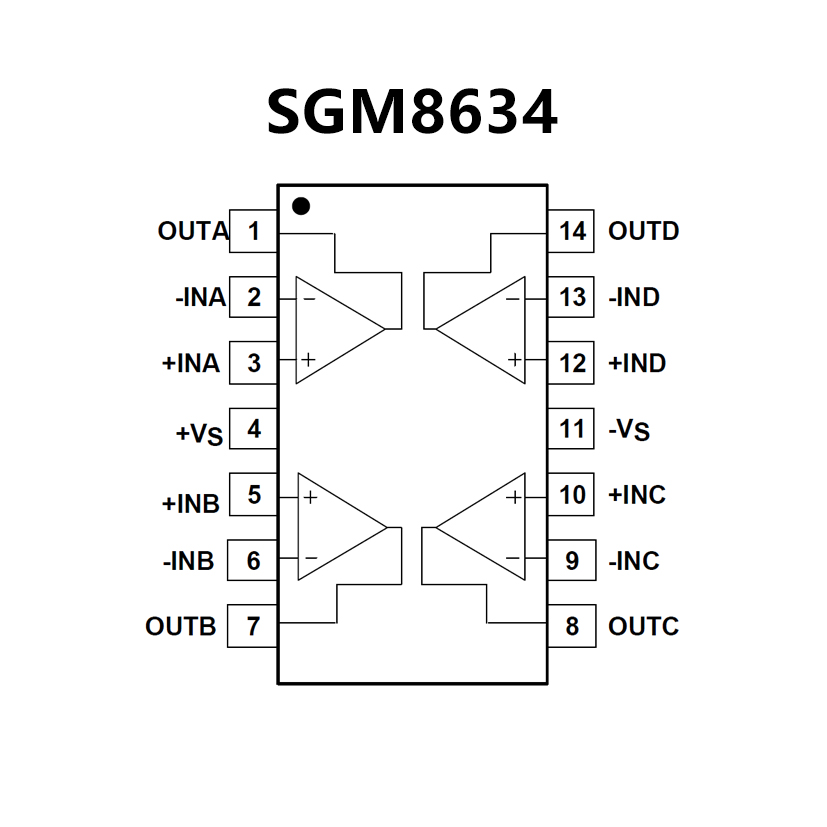

SGM8634.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 2.1μs
? Overload Recovery Time: 0.9μs
? Low Noise: 12nV/Hz
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 470μA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TSSOP-14 and SOIC-14 Packages
? Output Swing includes Both Supply Rails

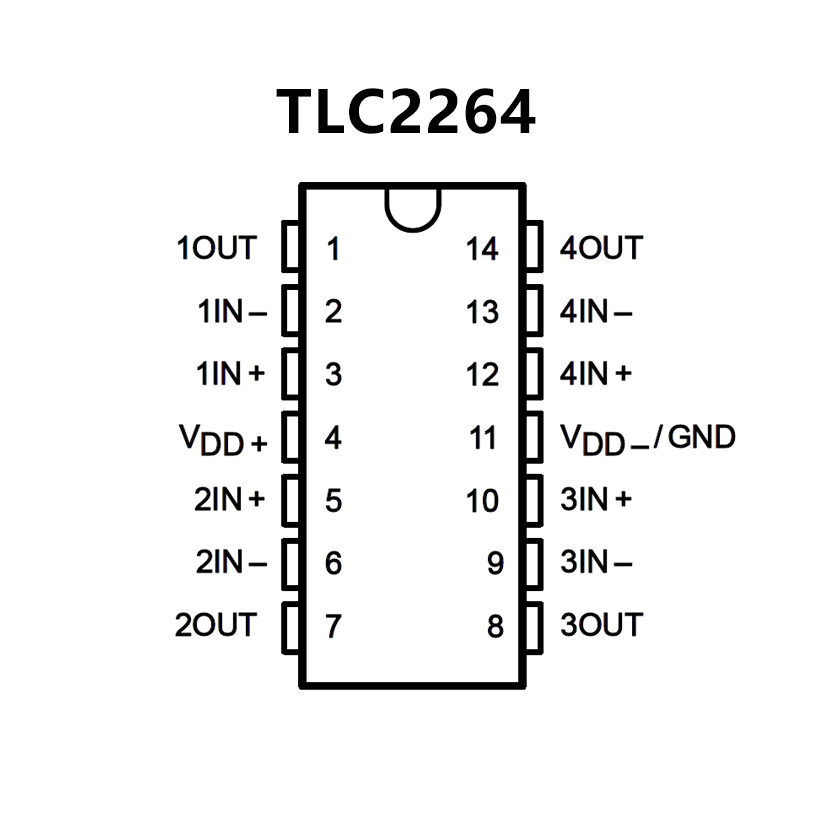

? Low Noise . . . 12 nV/√Hz Typ at f = 1 kHz
? Low Input Bias Current . . . 1 pA Typ
? Fully Specified for Both Single-Supply and
Split-Supply Operation
? Low Power . . . 500 μA Max
? Common-Mode Input Voltage Range
Includes Negative Rail
? Low Input Offset Voltage
950 μV Max at TA = 25°C (TLC2262A)
? Macromodel Included
? Performance Upgrade for the TS27M2/M4
and TLC27M2/M4
? Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control/Print Support
Qualification to Automotive Standards
