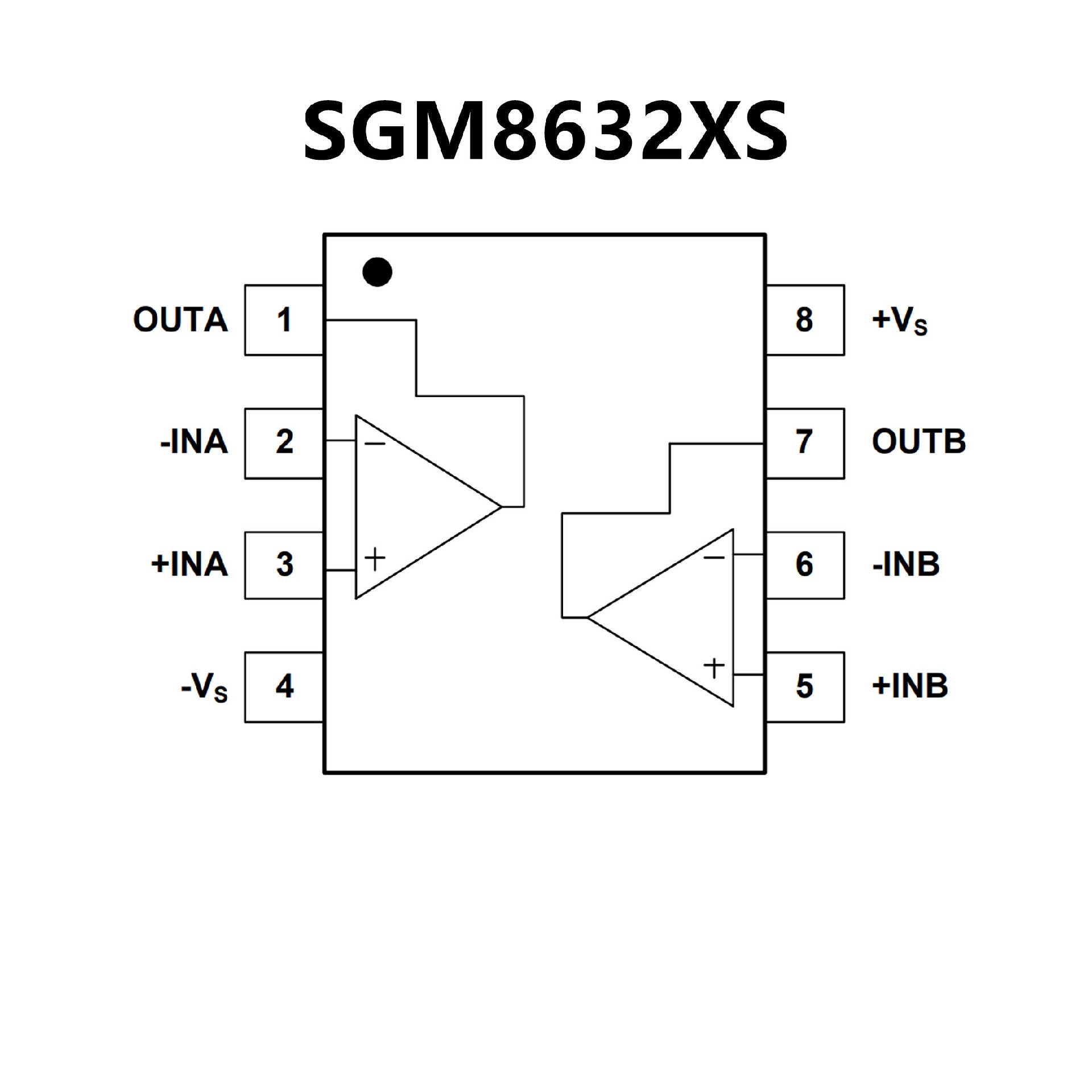

SGM8632.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current:
SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8633
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8631 Available in Green SC70-5,
SOT-23-5and SOIC-8 Packages
SGM8632 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8633 Available in Green SOT-23-6 and
SOIC-8 Packages

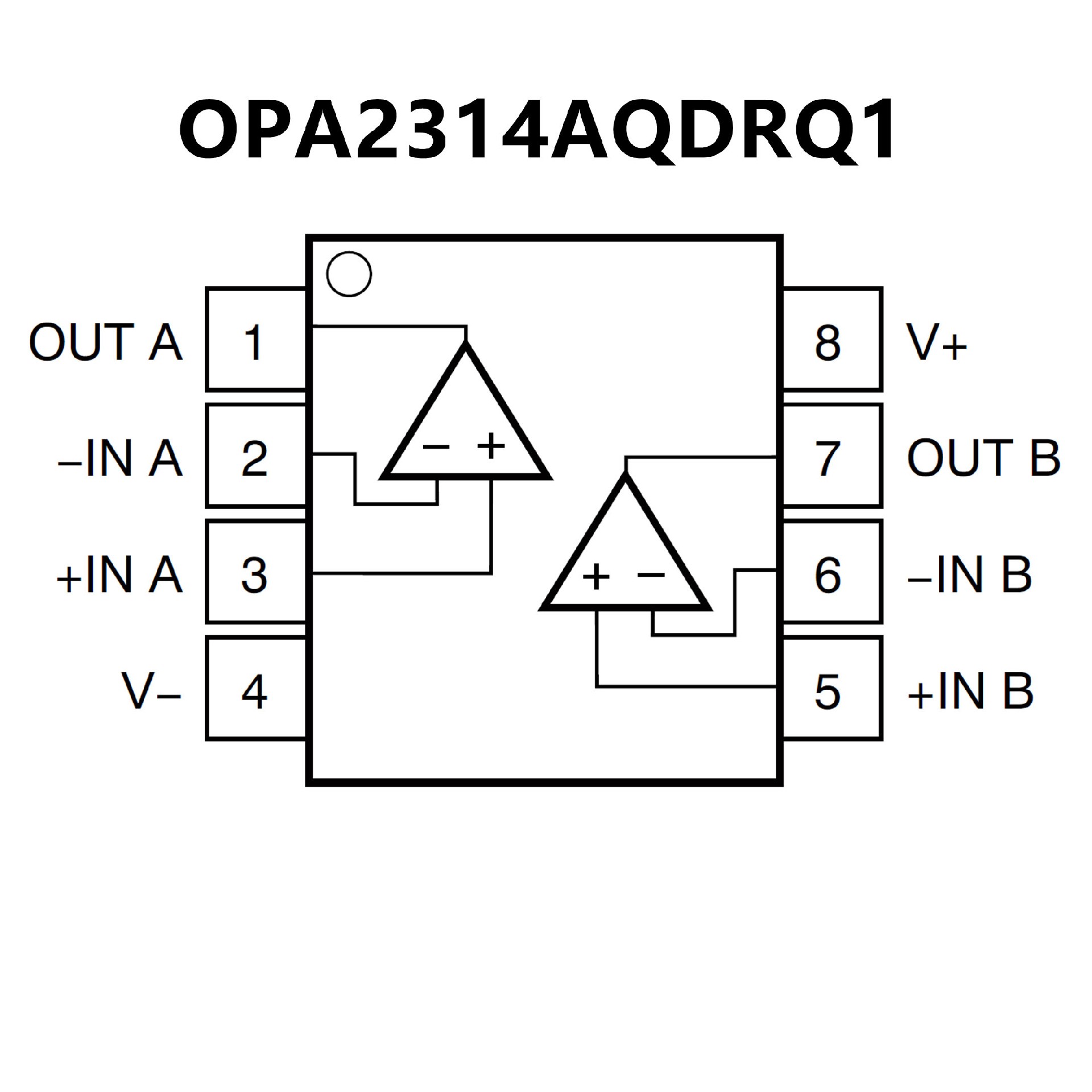

? 低IQ：150μA/通道
? 寬電源電壓：1.8V 至5.5V
? 低噪聲： 1kHz 下為14nV/√Hz
? 增益帶寬：3MHz
? 低輸入偏置電流：0.2pA
? 低偏移電壓：0.5mV
? 單位增益穩(wěn)定
? 內(nèi)部射頻/電磁干擾(RF/EMI) 濾波器
? 擴(kuò)展溫度范圍：
–40°C 至125°C
