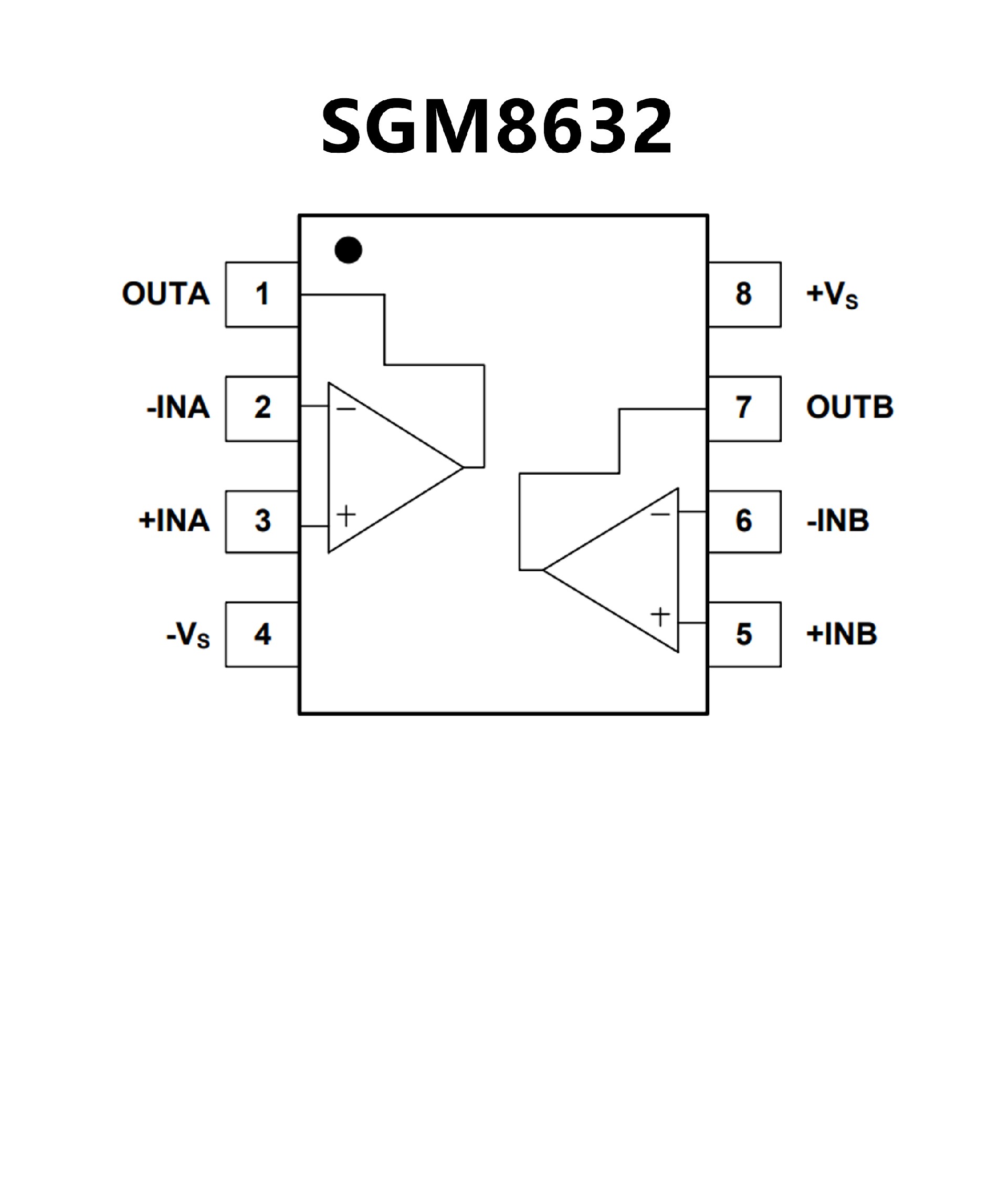

SGM8632.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current:
SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8633
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8631 Available in Green SC70-5, SOT-23-5
and SOIC-8 Packages
SGM8632 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8633 Available in Green SOT-23-6 and
SOIC-8 Packages

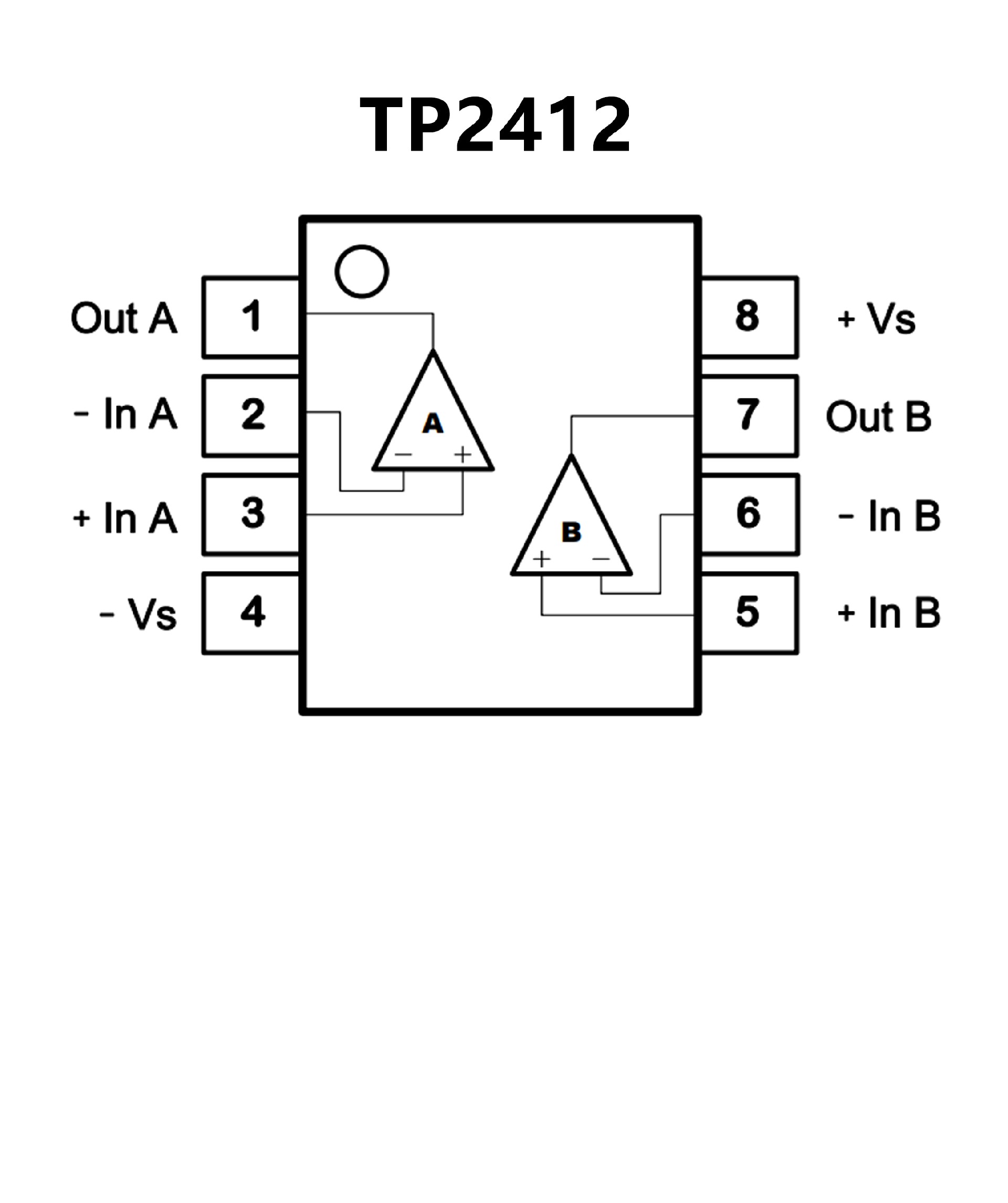

? Gain-bandwidth Product: 10 MHz
? Low Noise: 8.2 nV/√Hz(f= 1kHz)
? Slew Rate: 7 V/μs
? Offset Voltage: 1 mV (max)
? EMIRR IN+: 88 dB( under 2.4GHz)
? Low THD+N: 0.0005%
? Supply Range: 2.2 V to 5.5 V
? Supply Current: 1.4 mA/ch
? Low Input Bias Current: 0.3pA Typical
? Rail-to-Rail I/O
? High Output Current: 70 mA (1.0V Drop)
? –40°C to 125°C Operation Range
