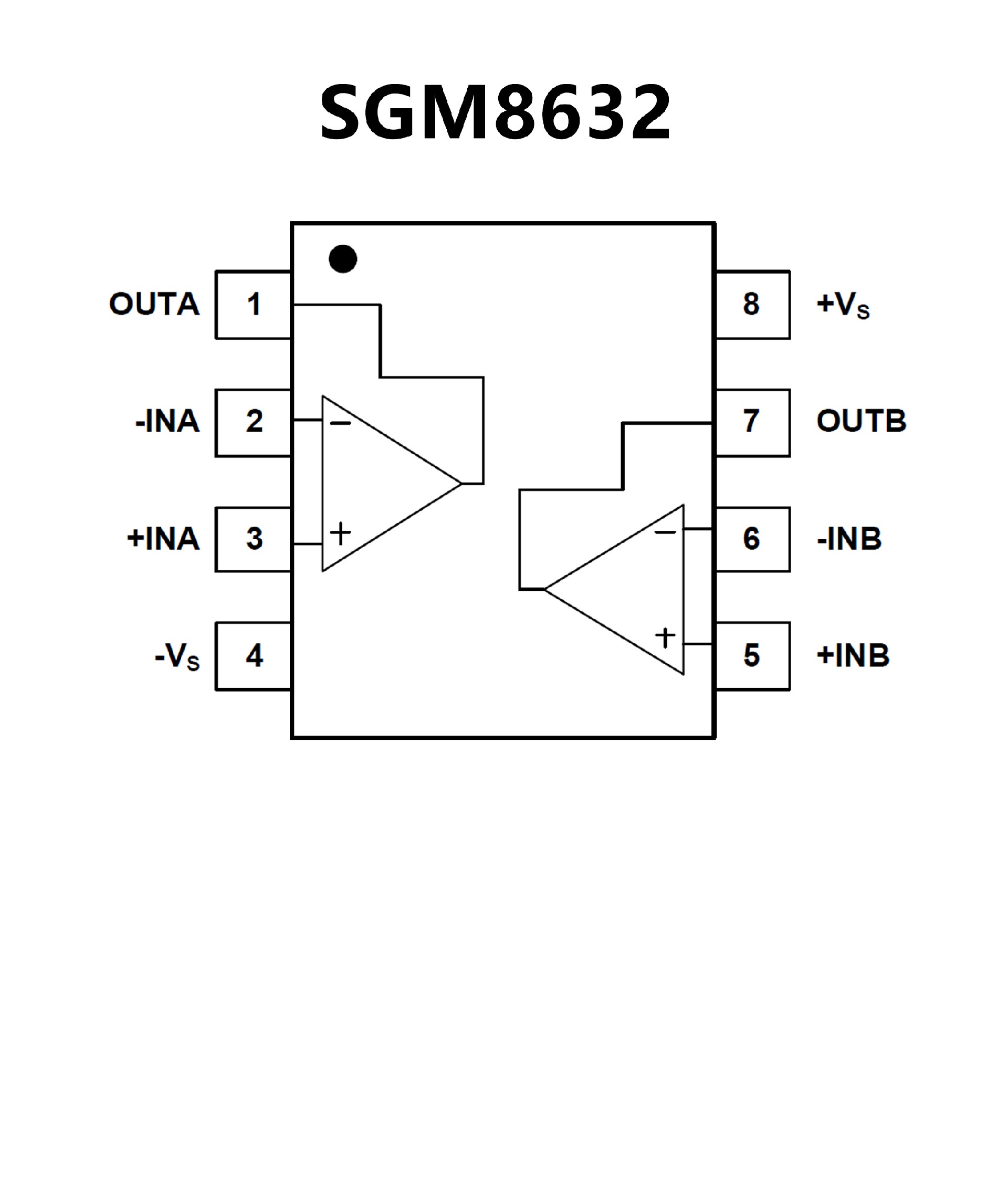

SGM8632CXMS8G.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current:
SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8633
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8631 Available in Green SC70-5, SOT-23-5
and SOIC-8 Packages
SGM8632 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8633 Available in Green SOT-23-6 and
SOIC-8 Packages

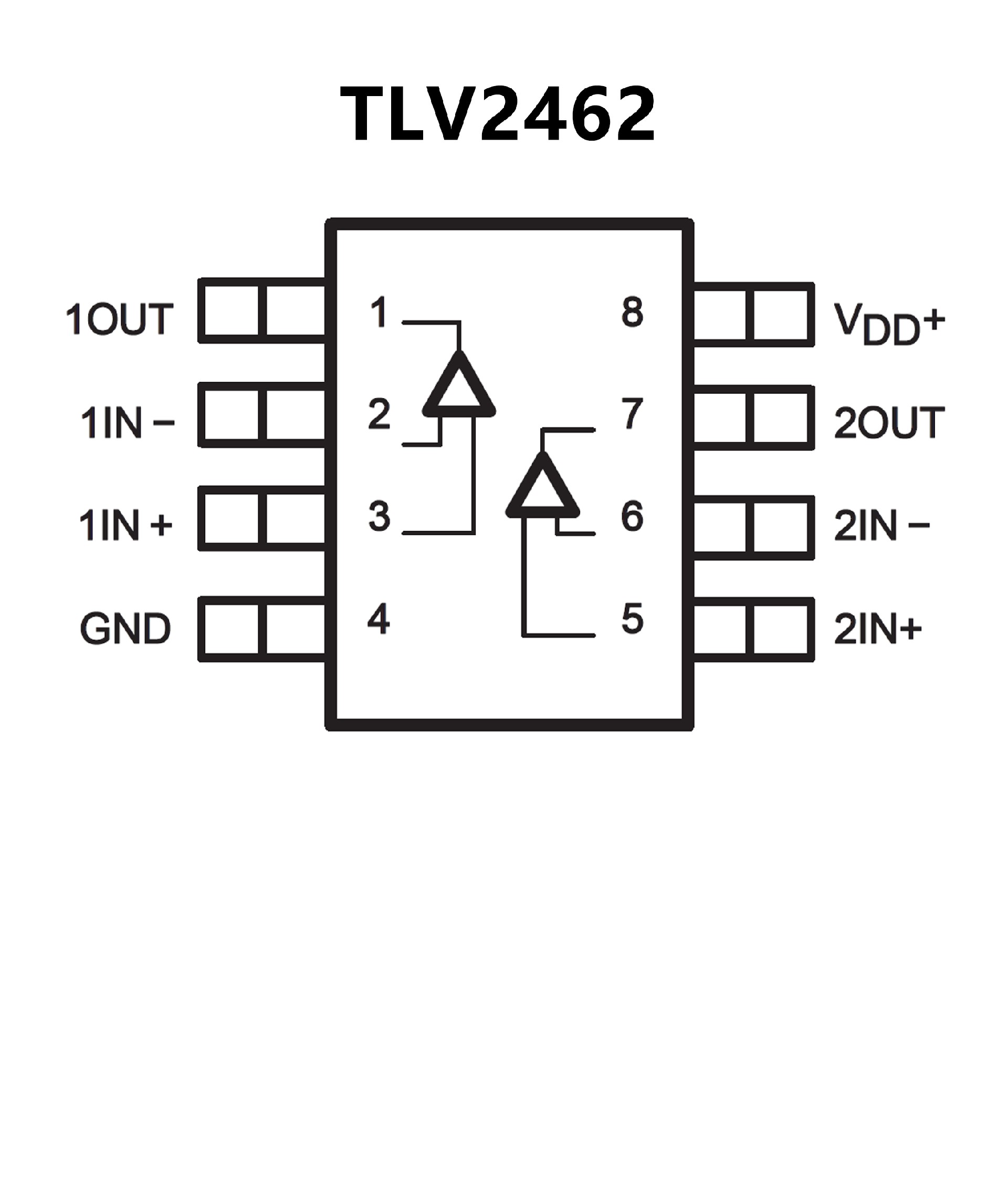

? Rail-to-Rail Output Swing
? Gain Bandwidth Product . . . 6.4 MHz
? ±80 mA Output Drive Capability
? Supply Current . . . 500 μA/channel
? Input Offset Voltage . . . 100 μV
? Input Noise Voltage . . . 11 nV/√Hz
? Slew Rate . . . 1.6 V/μs
? Micropower Shutdown Mode
(TLV2460/3/5) . . . 0.3 μA/Channel
? Universal Operational Amplifier EVM
? Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control/Print Support
Qualification to Automotive Standards
