6MHz, Rail-to-Rail I/O CMOS Operational Amplifier,SGM8631 Replace TP2421.
SGM8631
SGM8631.pdf
SGM8631.pdfFEATURES
? Rail-to-Rail Input and Output
? Input Offset Voltage: 3.5mV (MAX)
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range:-0.1V to 5.6V with VS=5.5V
? Low Supply Current:
SGM8631/3: 570μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8631 Available in Green SC70-5, SOT-23-5
and SOIC-8 Packages

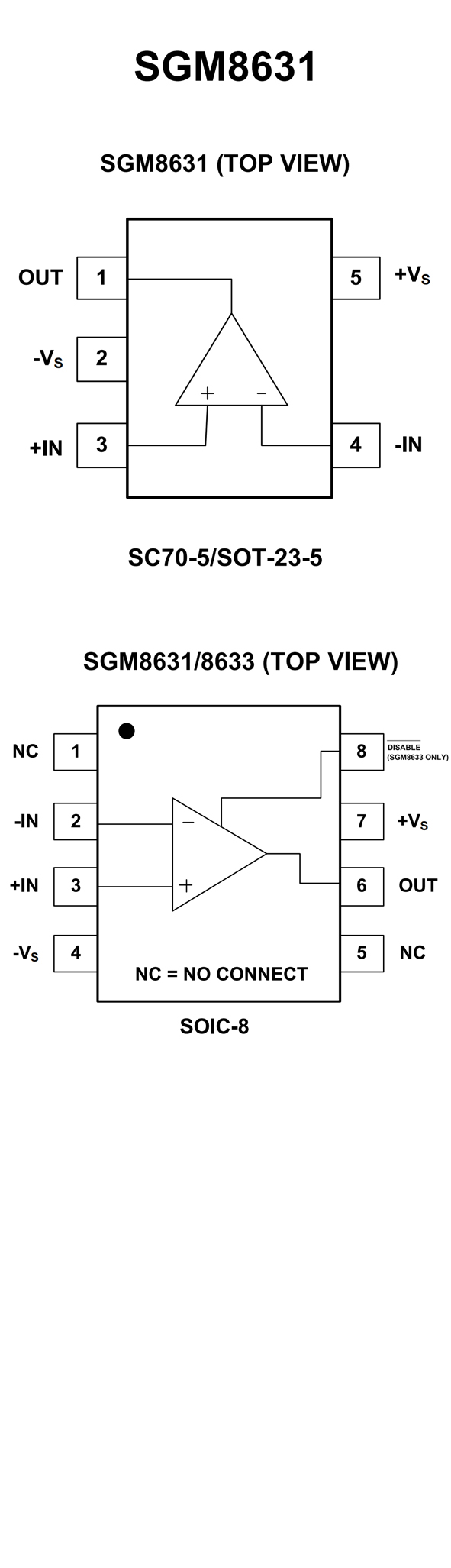

PIN CONFIGUTION
