6MHz, Rail-to-Rail I/O CMOS Operational Amplifiers,SGM8631 Replace NJU77801F3.
SGM8631
SGM8631.pdf
SGM8631.pdfFEATURES
? Rail-to-Rail Input and Output
3.5mV Maximum VOS
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current
SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8633
? Small Packaging
SGM8631 Available in Green SC70-5,
SOT-23-5and SOIC-8
SGM8632 Available in Green MSOP-8 andSOIC-8
SGM8633 Available in Green SOT-23-6 andSOIC-8

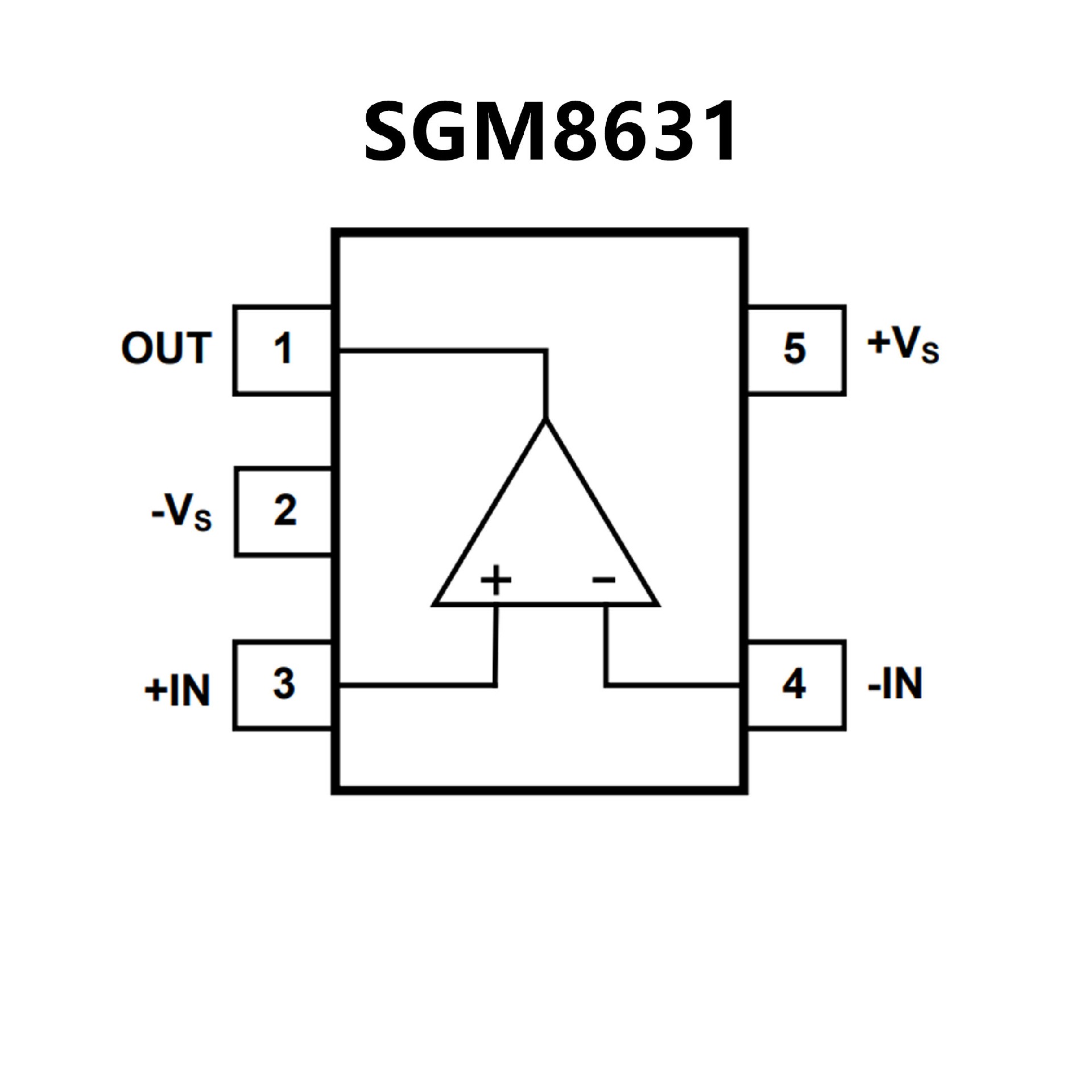

PIN CONFIGUTION
