Single-Supply, Single Rail-to-Rail I/OPrecision Operational Amplifier, SGM8581 Replace OPA376AIDBVR.
SGM8581
SGM8581.pdf
SGM8581.pdfFEATURES
? Low Offset Voltage: 100μV (MAX)
? Rail-to-Rail Input and Output Swings
? 2.5V to 5.5V Single-Supply Operation
? Voltage Gain: 145dB (TYP) at 5V
? PSRR: 120dB (TYP)
? CMRR: 90dB (TYP)
? Ultra Low Input Bias Current: 15pA
? Low Supply Current: 445μA at 5V
? Overload Recovery Time: 70μs (at VS = 5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and MSOP-8Packages

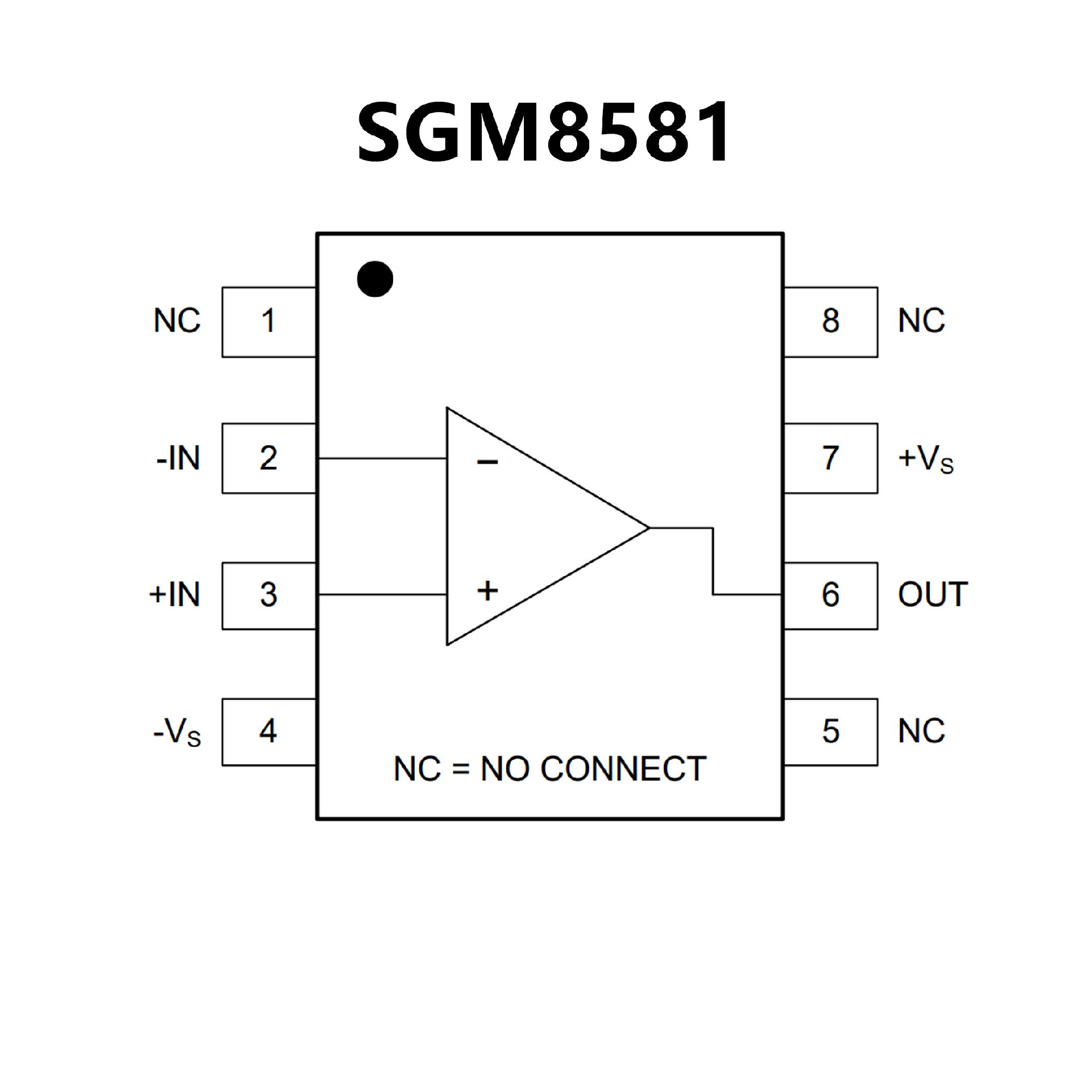

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Low Noise: 7.5 nV/√Hz at 1 kHz
? 0.1 Hz to 10 Hz Noise: 0.8 μV
? Low Offset Voltage: 5 μV (typ)
? Rail-to-Rail Input and Output
? Single-Supply Operation
? Supply Voltage: 2.2 V to 5.5 V
? Space-Saving Packages:
– SC70, SOT-23, DSBGA, VSSOP, TSSOP

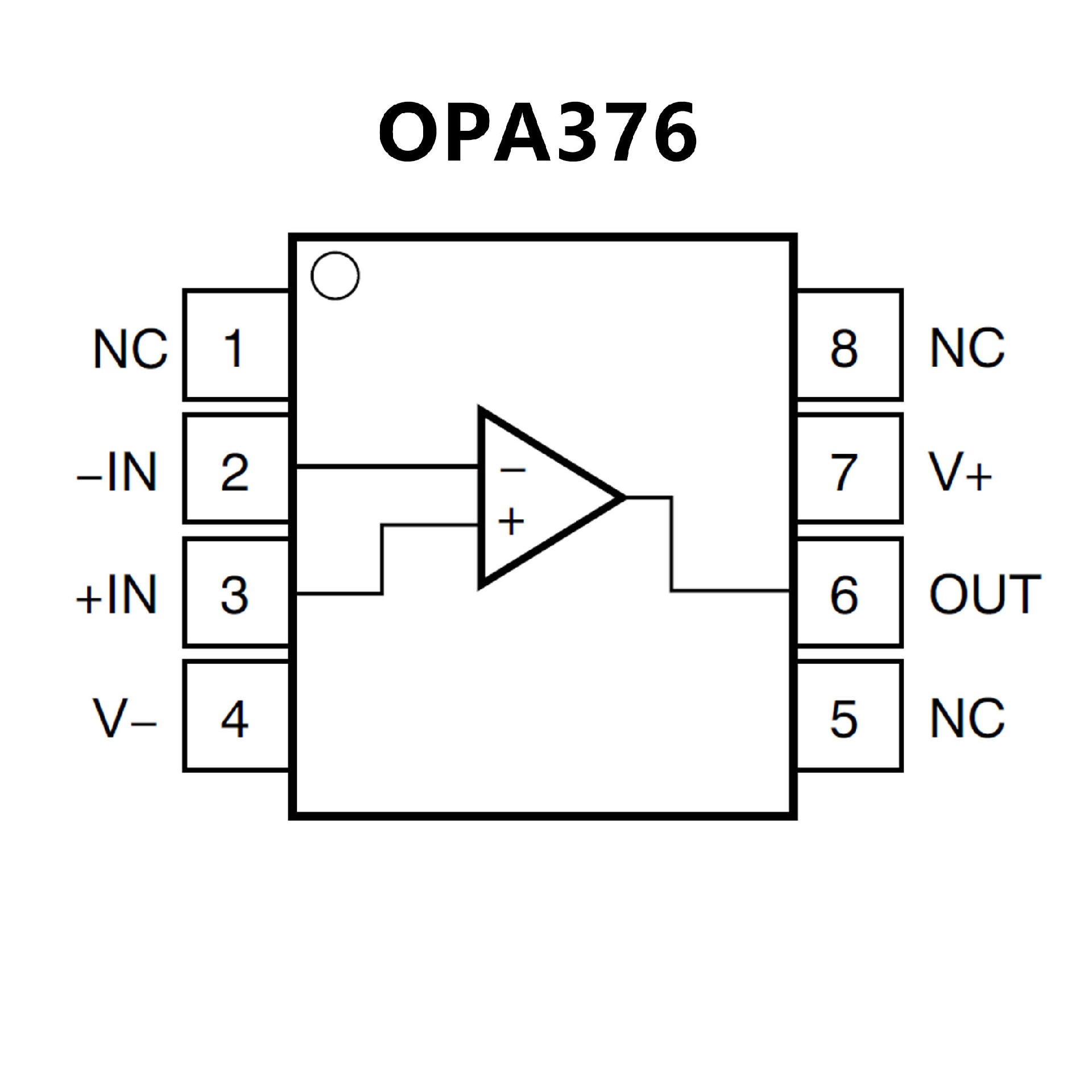

PIN CONFIGUTION
