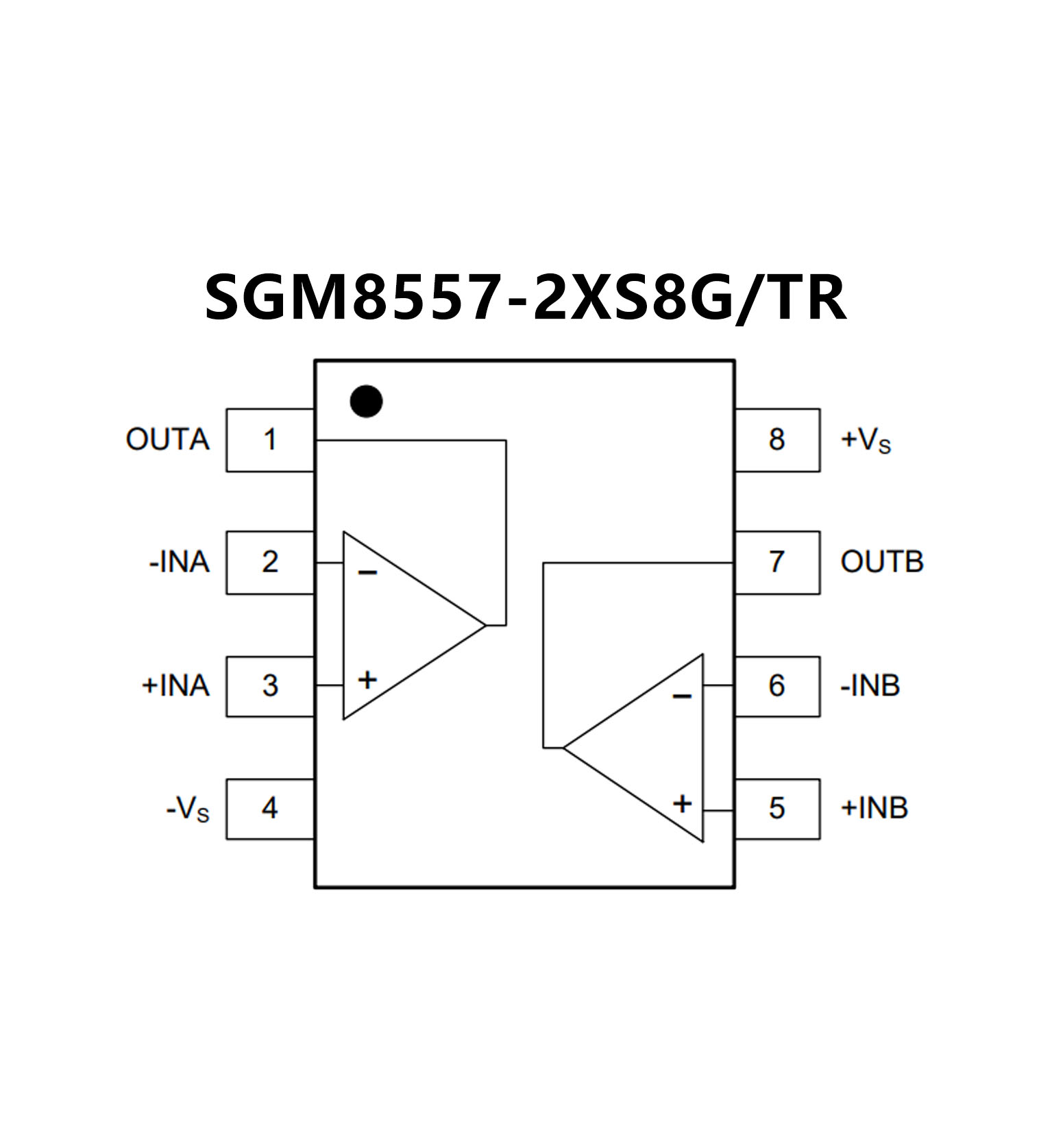

SGM8557-2.pdf? 235mA Output Drive Capability
? Rail-to-Rail Output
? Low Input Offset Voltage: 5μV (MAX)
? Low Input Offset Voltage Drift: 20nV/℃ (TYP)
? Low Noise: 30nV/√Hz at 1kHz
? Over-Temperature Protection
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Supply Current: 2.4mA (TYP)
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? High Open-Loop Gain (RL = 2kΩ): 135dB
? Power Supply Rejection Ratio: 121dB
? No Phase Reversal for Overdriven Inputs
? Available in a Green MSOP-8 Package

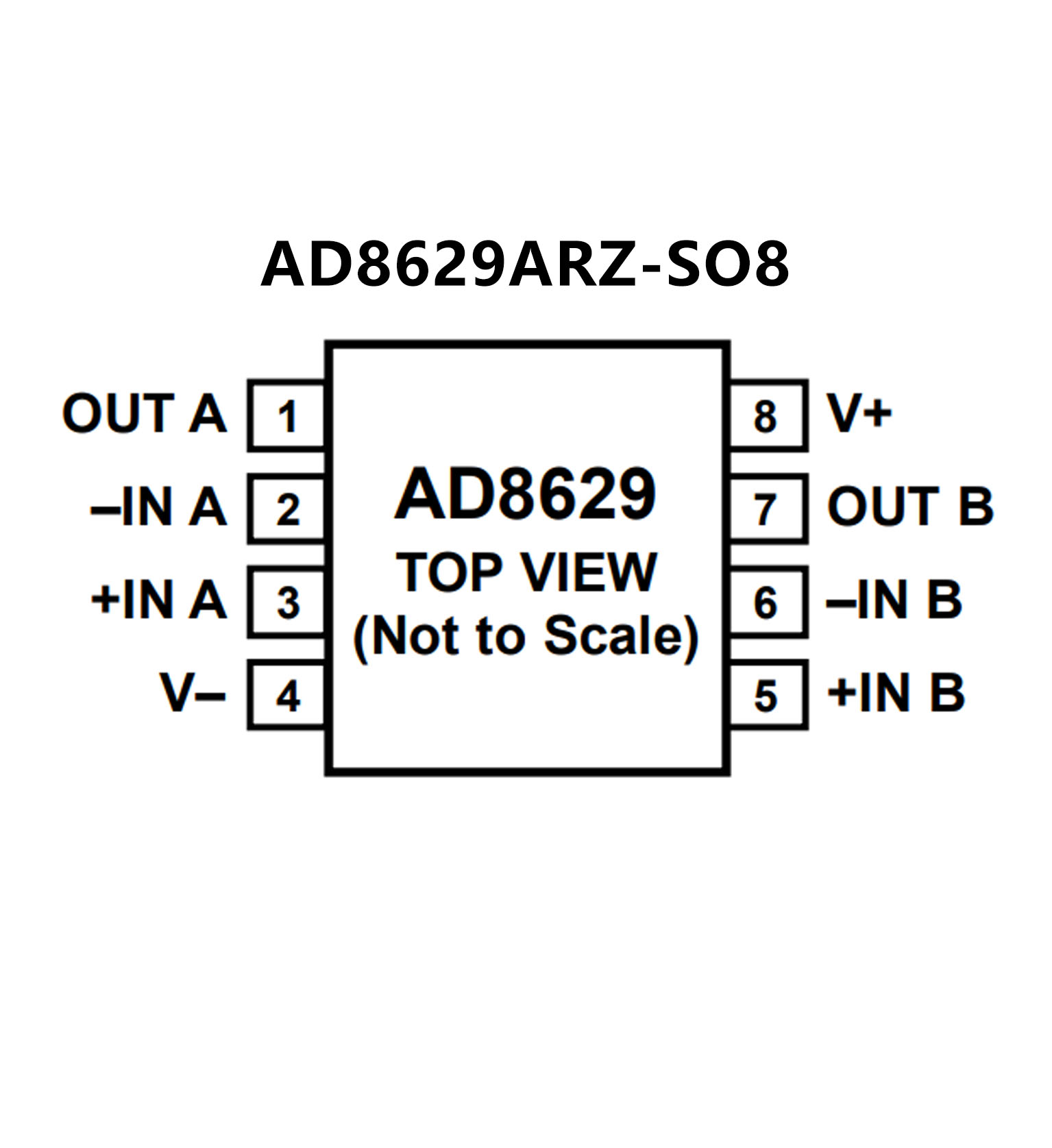

? Lowest auto-zero amplifier noise
? Low offset voltage: 1 μV
? Input offset drift: 0.002 μV/°C
? Rail-to-rail input and output swing
? 5 V single-supply operation
? High gain, CMRR, and PSRR: 130 dB
? Very low input bias current: 100 pA maximum
? Low supply current: 1.0 mA
? Overload recovery time: 50 μs
? No external components
? required Qualified for automotive applications
