15MHz, High Output Drive, High Precision,Low Noise Operational Amplifier, SGM8557-2 P2P OPA2335.
SGM8557-2
SGM8557-2.pdf
SGM8557-2.pdfFEATURES
? Output Drive Capability: 235mA
? Low Input Offset Voltage: 5μV (MAX)
? Low Input Offset Voltage Drift: 20nV/℃ (TYP)
? Low Noise: 30nV/√Hz at 1kHz
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? High Open-Loop Gain (RL = 2kΩ): 135dB
? Power Supply Rejection Ratio: 121dB
? Over-Temperature Protection
? No Phase Reversal for Overdriven Inputs
? Rail-to-Rail Input and Output
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Current: 2.4mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green MSOP-8 Package

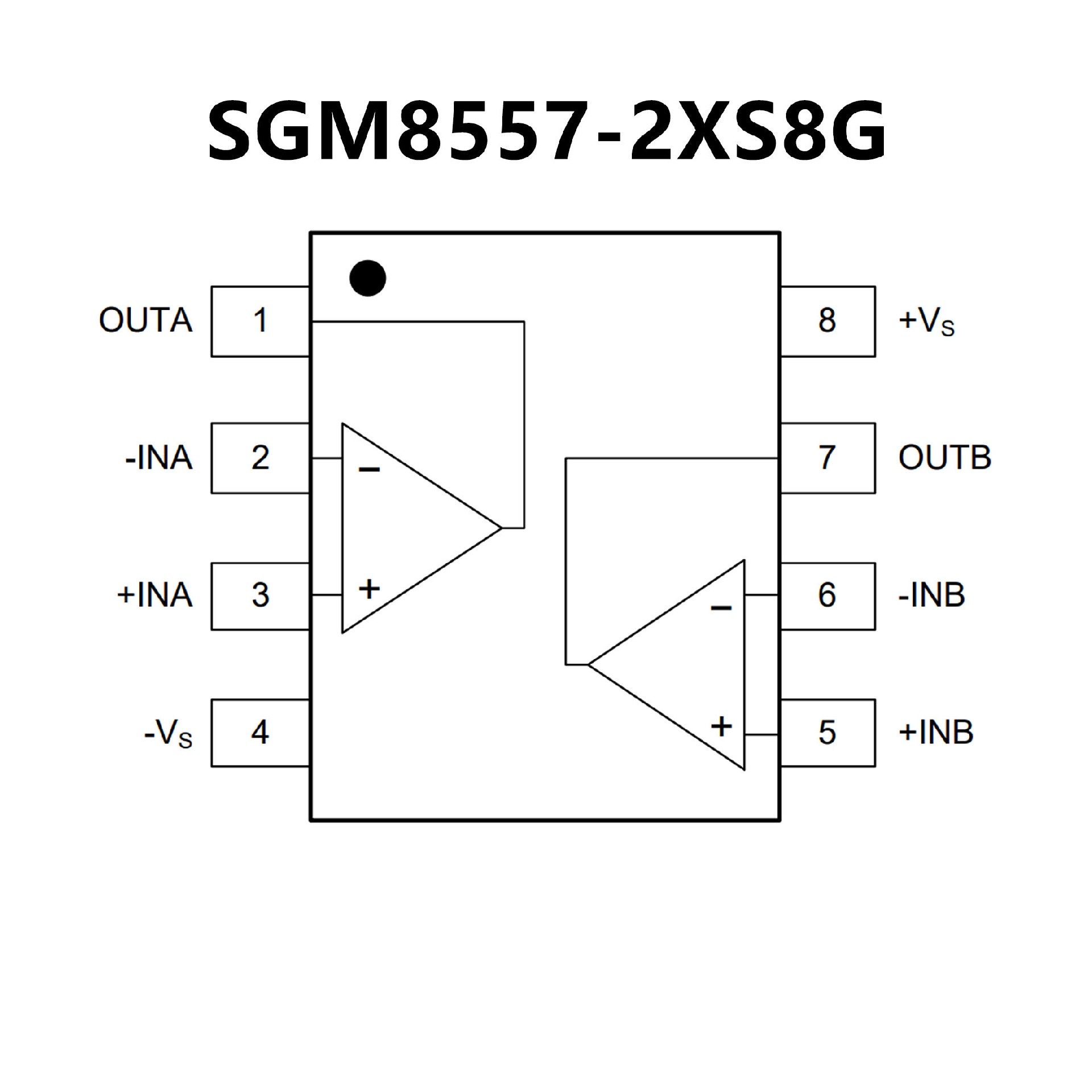

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? LOW OFFSET VOLTAGE: 5μV (max)
? ZERO DRIFT: 0.05μV/°C (max)
? QUIESCENT CURRENT: 285μA
? SINGLE-SUPPLY OPERATION
? SINGLE AND DUAL VERSIONS
? SHUTDOWN
? MicroSIZE PACKAGES

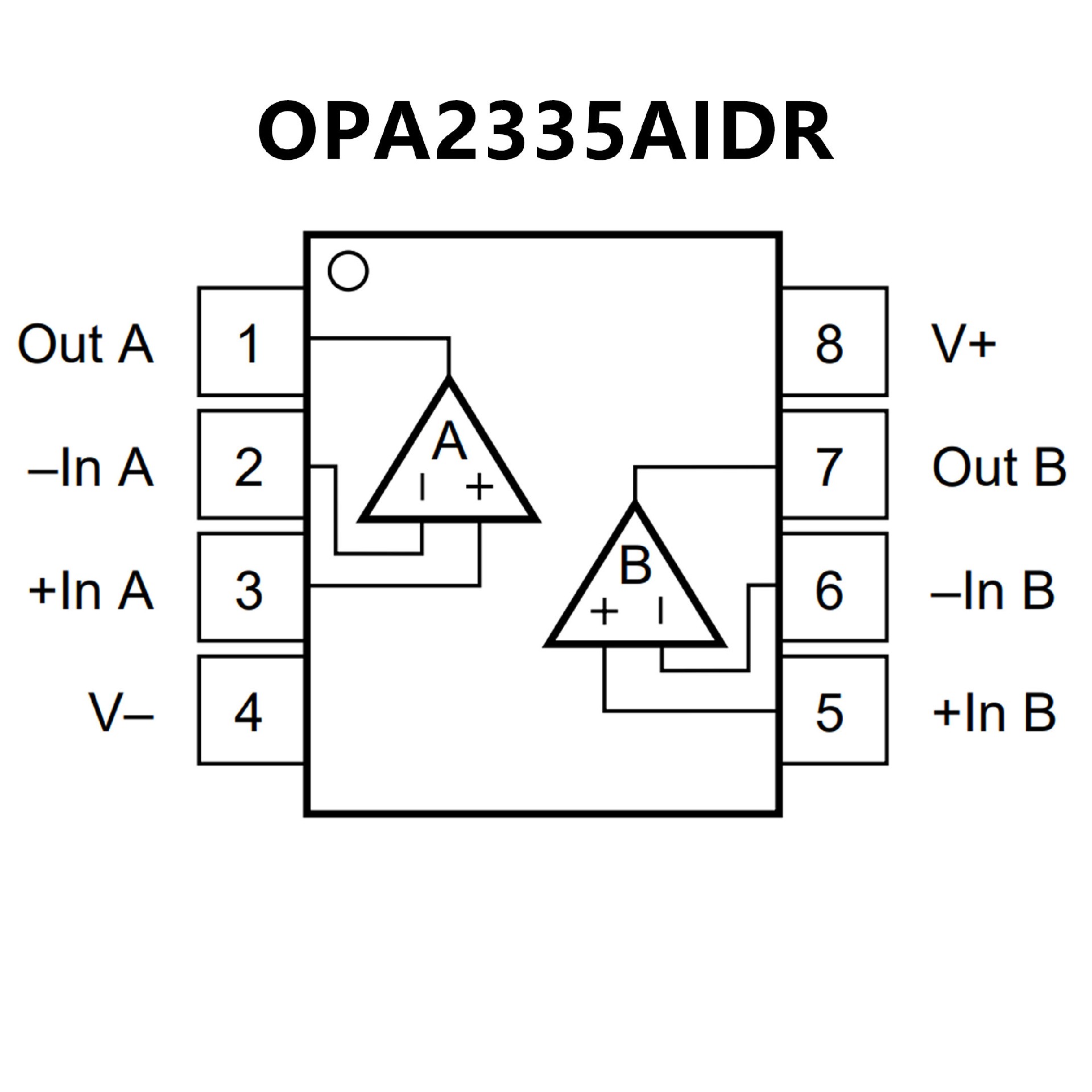

PIN CONFIGUTION
