SGM8557-1AXN5G.pdf? 240mA Output Drive Capability
? Rail-to-Rail Output
? Low Input Offset Voltage: 5μV (MAX)
? Low Input Offset Voltage Drift: 27nV/℃ (TYP)
? Low Noise: 22nV/Hz at 1kHz
? Over-Temperature Protection
? Supply Voltage Range: 2.7V to 5.5V
? Quiescent Supply Current:
1.2mA/Amplifier (TYP)
0.3μA Shutdown Current for SGM8557-3/5 (TYP)
? Gain-Bandwidth Product: 15MHz
? High Slew Rate: 7V/μs
? Voltage Gain (RL = 2kΩ): 144dB
? Power Supply Rejection Ratio: 120dB
? No Phase Reversal for Overdriven Inputs
? Small Packaging:

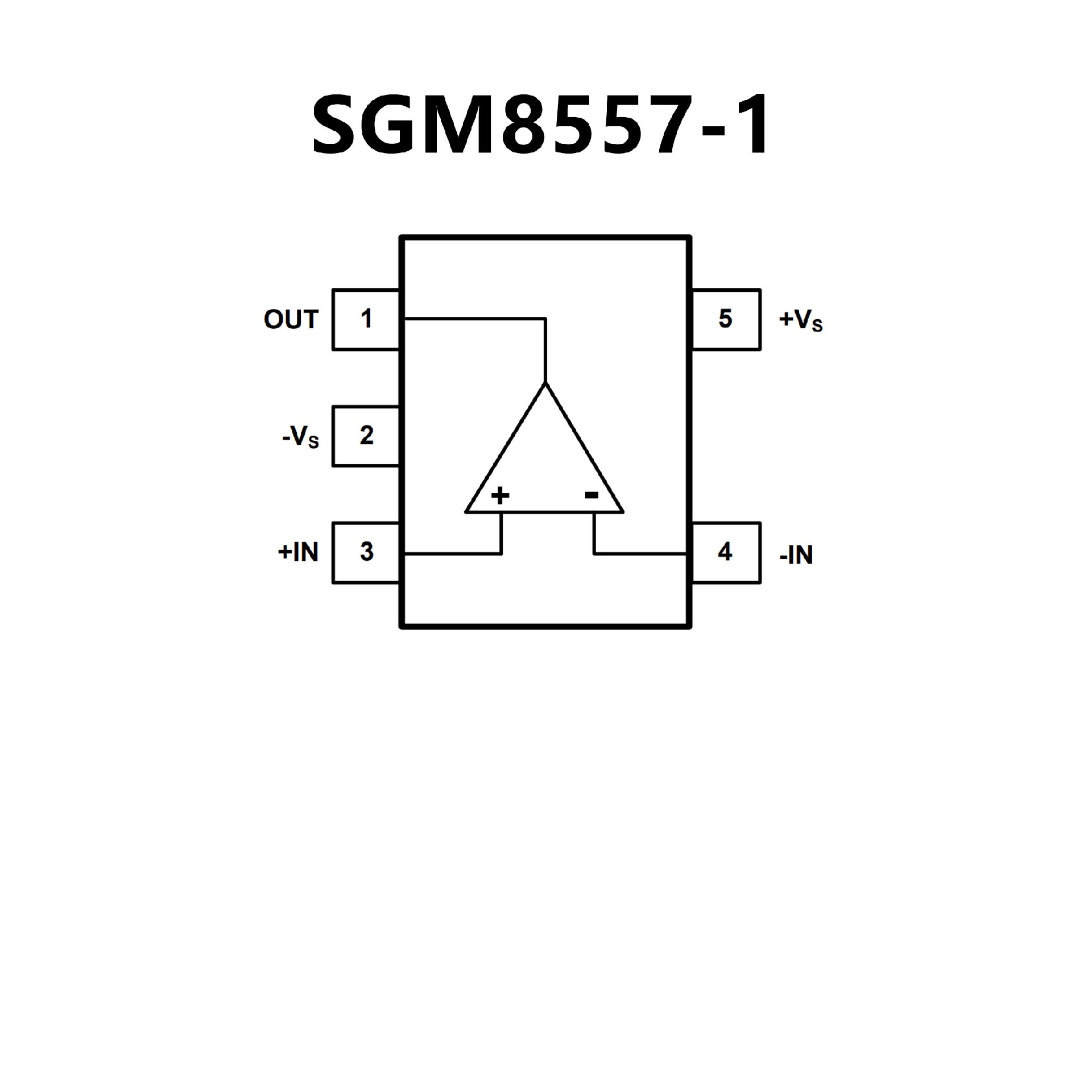

SGM8557-1 Available in Green SOIC-8,
MSOP-8,and SOT-23-5 Packages
SGM8557-2 Available in a Green SOIC-8 Package
SGM8557-3 Available in Green
SOIC-8 andSOT-23-6 Packages
SGM8557-5 Available in a Green MSOP-10 Package

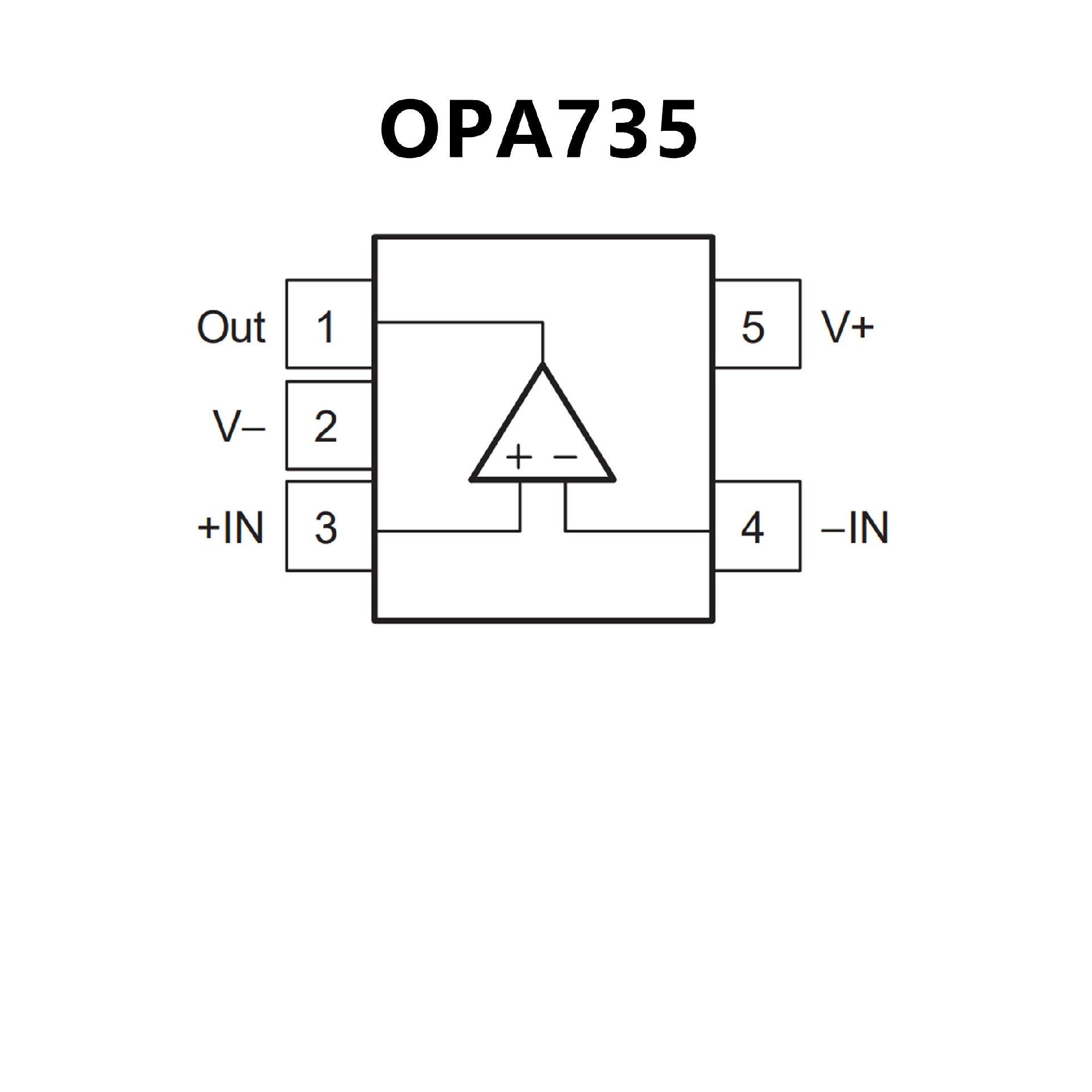

? LOW OFFSET VOLTAGE: 5μV (max)
? ZERO DRIFT: 0.05μV/°C max
? QUIESCENT CURRENT: 750μA (max)
? SINGLE-SUPPLY OPERATION
? LOW BIAS CURRENT: 200pA (max)
? SHUTDOWN
? MicroSIZE PACKAGES
? WIDE SUPPLY RANGE: 2.7V to 12V
