High Precision Operational Amplifier, SGM8556 Replace OPA2376.
SGM8556
SGM8556.pdf
SGM8556.pdfFEATURES
? Low 0Hz-10Hz Voltage Noise
? Wide Bandwidth: 4MHz (TYP)
? Low Offset Voltage: 3μV (TYP)
? Rail-to-Rail Input and Output Swing
? 2.7V to 5.5V Single Supply Operation
? Voltage Gain: 150dB (TYP)
? PSRR: 115dB (TYP)
? CMRR: 110dB (TYP)
? Low Supply Current: 900μA/per Channel
? Overload Recovery Time: 45μs
? No External Capacitors Required

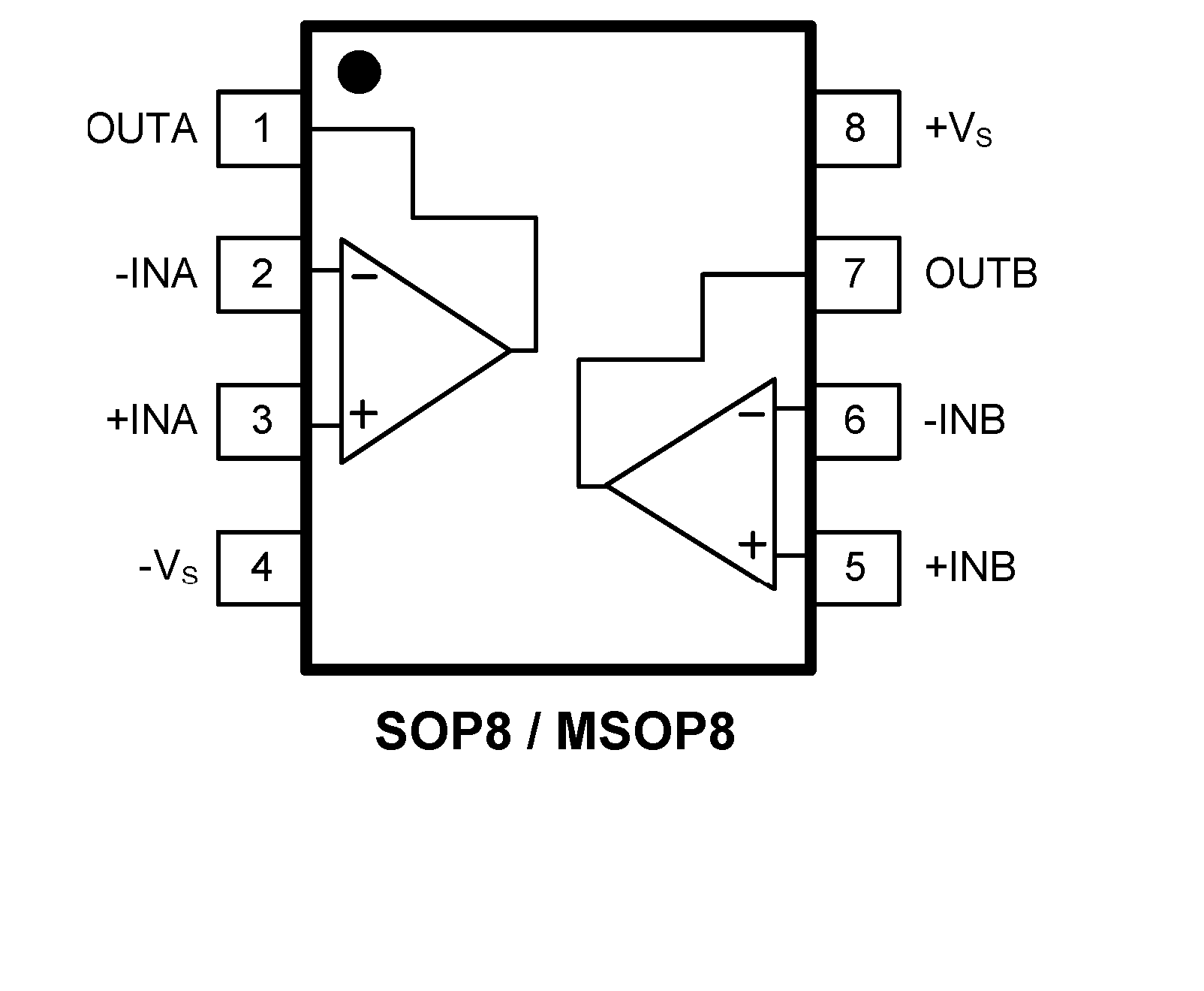

PIN CONFIGUTION
優勢替代
FEATURES
? Low Noise: 7.5 nV/√Hz at 1 kHz
? 0.1 Hz to 10 Hz Noise: 0.8 μVPP
? Quiescent Current: 760 μA (typical)
? Low Offset Voltage: 5 μV (typ)
? Gain Bandwidth Product: 5.5 MHz
? Rail-to-Rail Input and Output
? Single-Supply Operation
? Supply Voltage: 2.2 V to 5.5 V

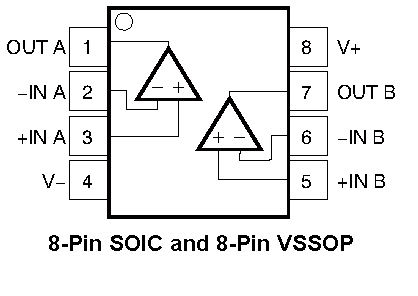

PIN CONFIGUTION
