Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier,SGM8554XTS14G Replace TLV4333IPWR.
SGM8554XTS14G
SGM8554XTS14G.pdf
SGM8554XTS14G.pdfFEATURES
? Low Offset Voltage: 20μV (MAX)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single-Supply Operation
? Voltage Gain: 145dB (TYP) at 5V
? PSRR: 110dB (TYP)
? CMRR: 105dB (TYP)
? Ultra Low Input Bias Current: 10pA
? Low Supply Current: 465μA/Amplifier (TYP)
? Overload Recovery Time: 60μs (at VS = 5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages

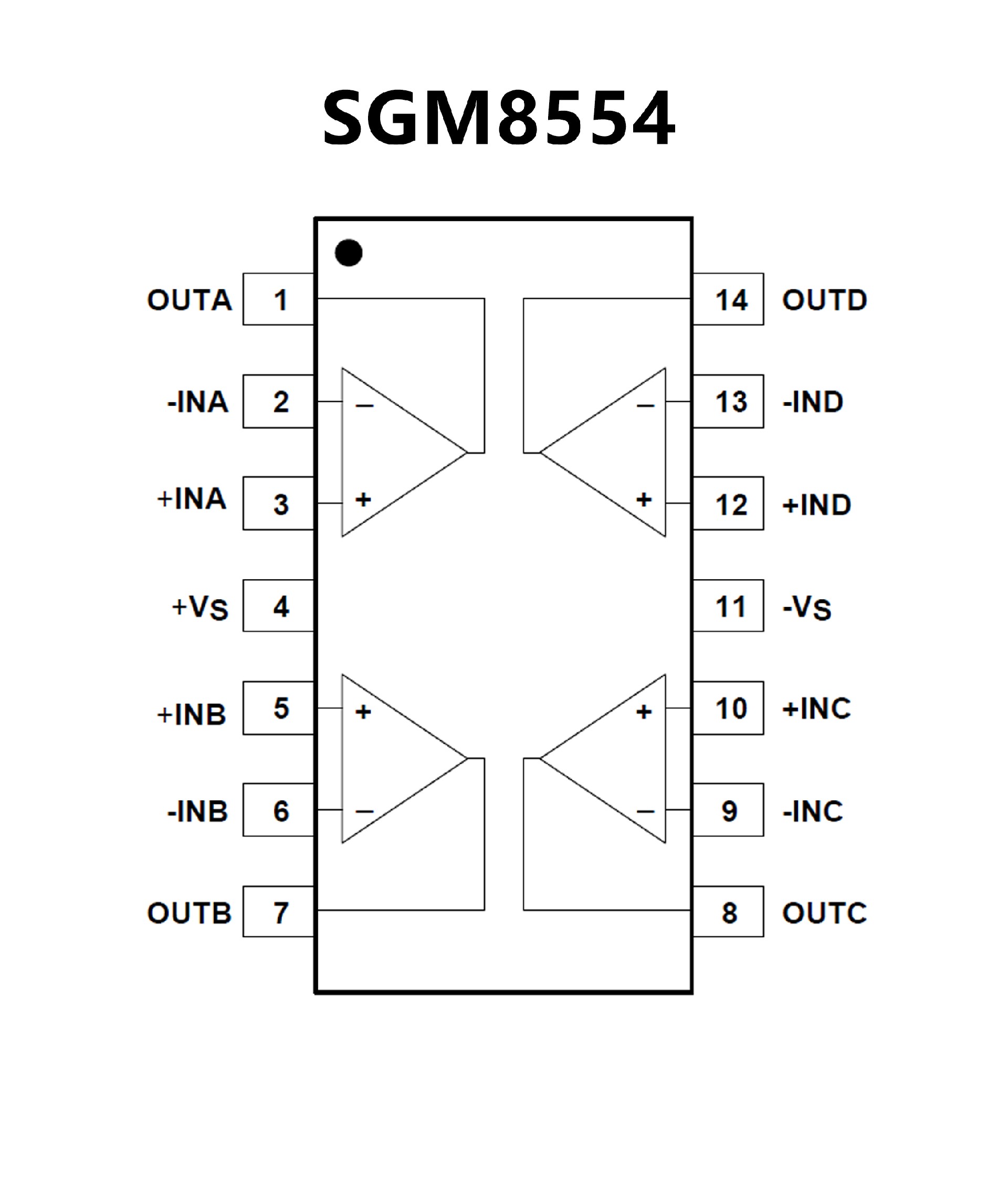

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Unmatched Price Performance
? Low Offset Voltage: 2 μV
? Zero Drift: 0.02 μV/°C
? Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
? Quiescent Current: 17 μA
? Supply Voltage: 1.8 V to 5.5 V
? Rail-to-Rail Input/Output
? Internal EMI Filtering
? microSize Packages: SOT23, SC70

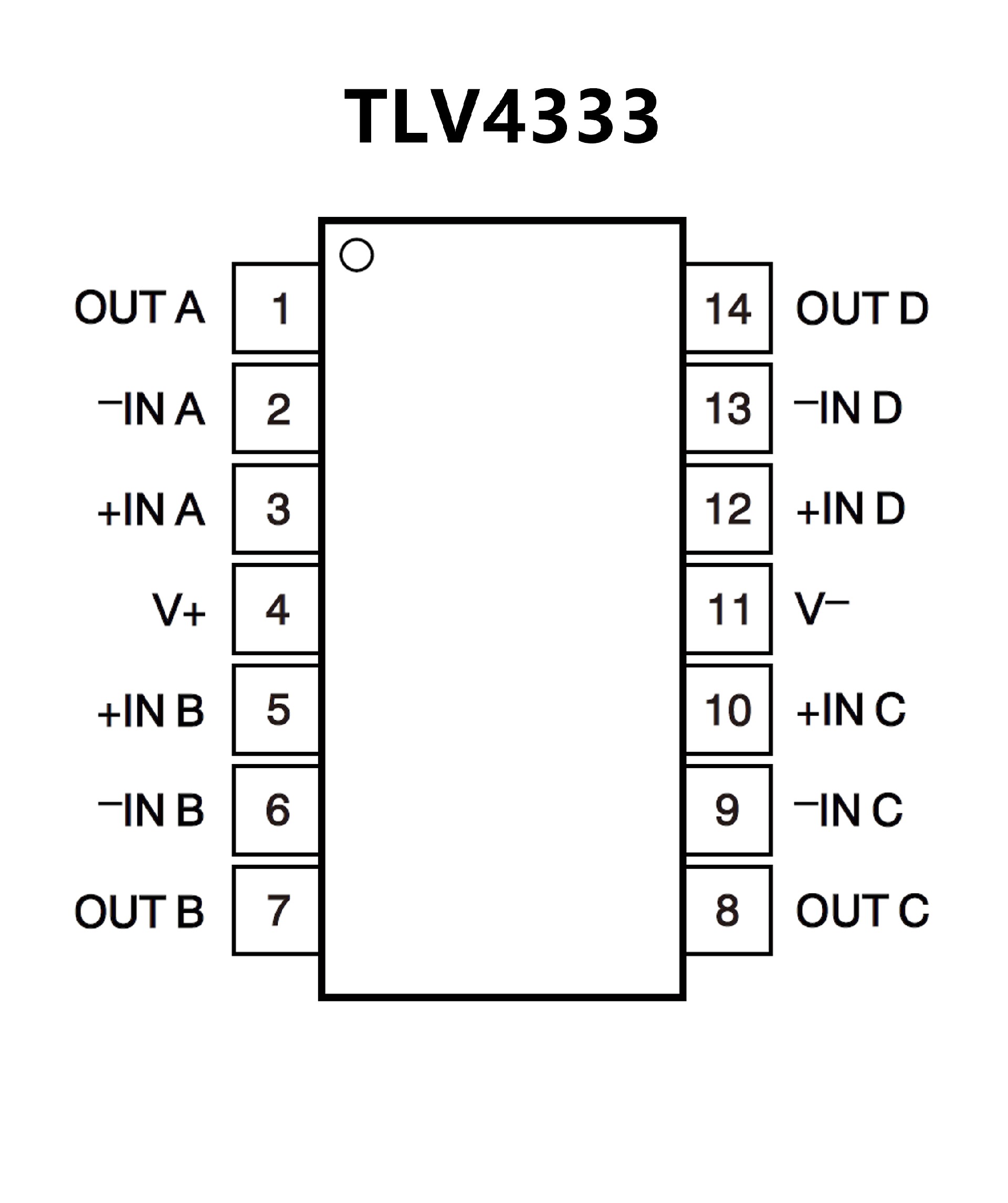

PIN CONFIGUTION
