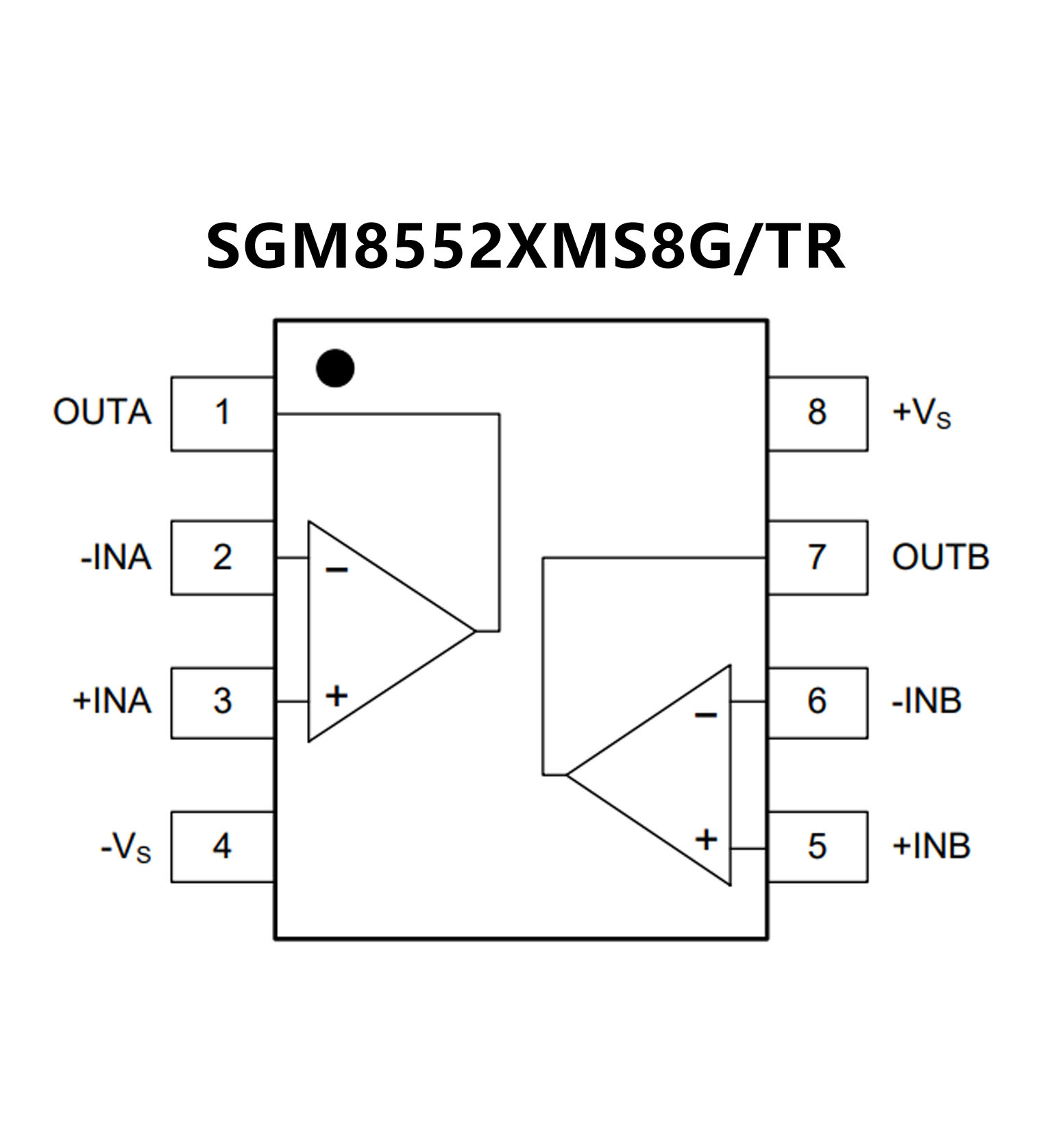

SGM8552.pdf? Low Offset Voltage: 20μV (MAX)
? Rail-to-Rail Input and Output Swing
? 2.5V to 5.5V Single-Supply Operation
? Voltage Gain: 145dB (TYP) at 5V
? PSRR: 110dB (TYP)
? CMRR: 105dB (TYP)
? Ultra Low Input Bias Current: 10pA
? Low Supply Current: 930μA (TYP)
? Overload Recovery Time: 60μs (at VS = 5V)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

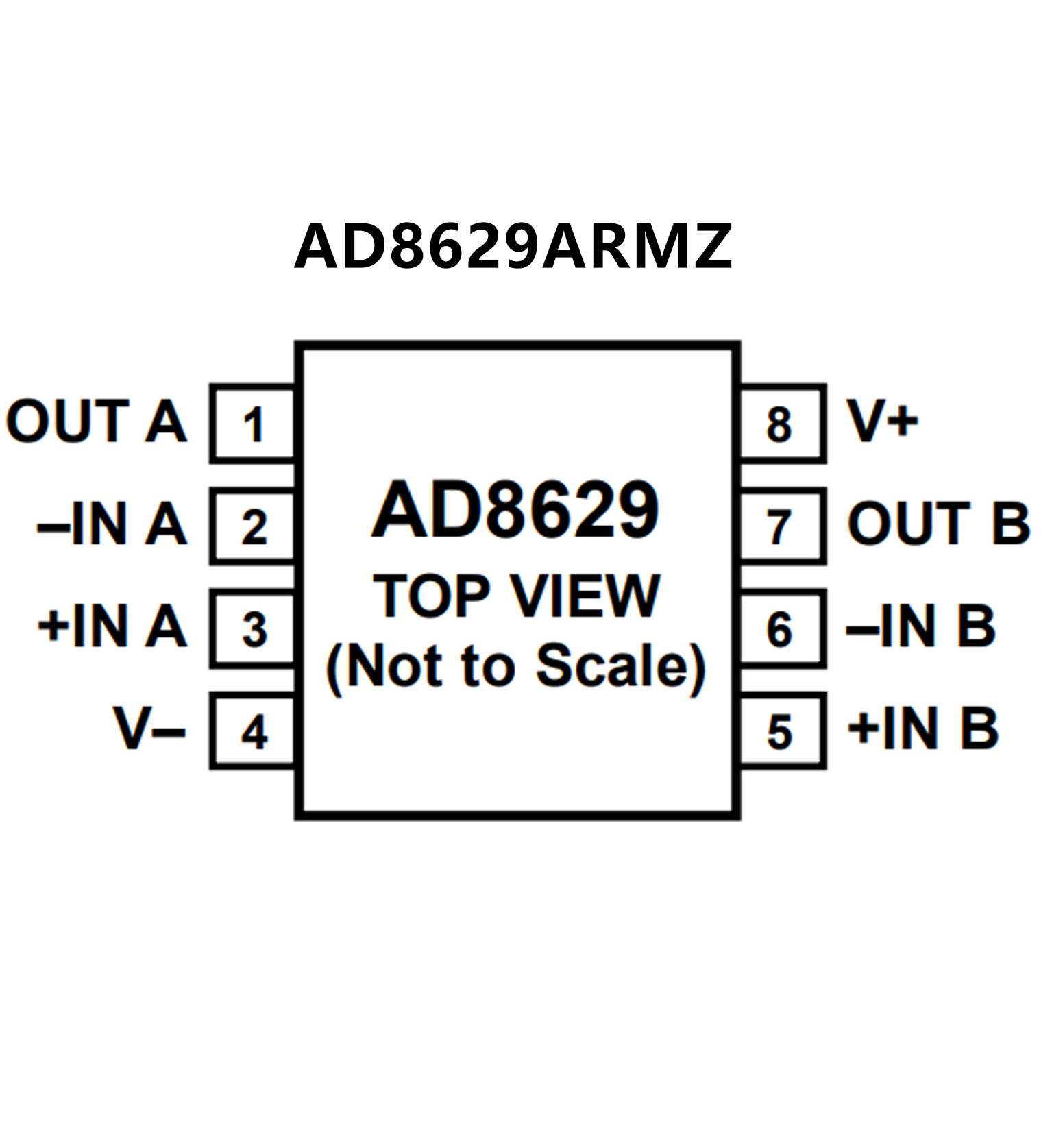

? Lowest auto-zero amplifier noise
? Low offset voltage: 1 μV
? Input offset drift: 0.002 μV/°C
? Rail-to-rail input and output swing
? 5 V single-supply operation
? High gain, CMRR, and PSRR: 130 dB
? Very low input bias current: 100 pA maximum
? Low supply current: 1.0 mA
? Overload recovery time: 50 μs
? No external components required
? Qualified for automotive applications
