Single-Supply, Single Rail-to-Rail I/O Precision Operational Amplifier,SGM8551XN5G Replace TLV333IDBV.
SGM8551XN5G
SGM8551XN5G.pdf
SGM8551XN5G.pdfFEATURES
? Low Offset Voltage: 12μV (TYP) at 5V
? Ultra-Low Input Bias Current: 19pA
? Large-Signal Voltage Gain: 145dB (TYP) at 5V
? PSRR: 110dB (TYP)
? CMRR: 105dB (TYP)
? Overload Recovery Time: 0.1ms (at VS = 5V)
? Rail-to-Rail Input and Output
? Supply Voltage Range: 2.5V to 5.5V
? Low Supply Current: 465μA (TYP)
? No External Capacitors Required
? -40℃ to +125℃ Operating Temperature Range
vAvailable in a Green SOT-23-5 Package

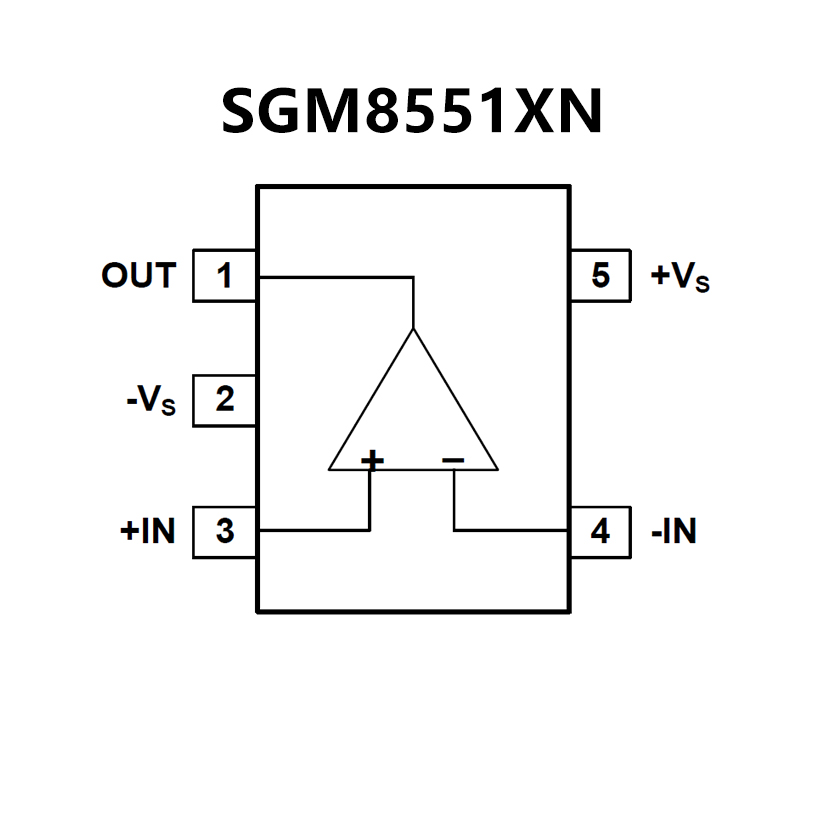

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Unmatched Price Performance
? Low Offset Voltage: 2 μV
? Zero Drift: 0.02 μV/°C
? Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
? Quiescent Current: 17 μA
? Supply Voltage: 1.8 V to 5.5 V
? Rail-to-Rail Input/Output
? Internal EMI Filtering
? microSize Packages: SOT23, SC70

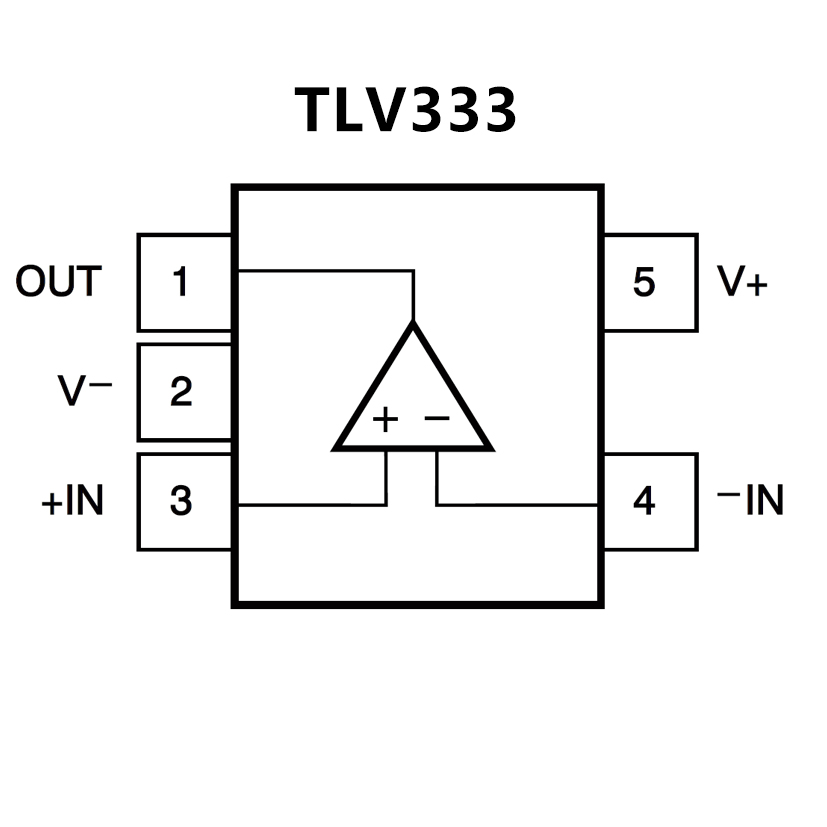

PIN CONFIGUTION
