1.5MHz,Rail-to-Rail Output Operational Amplifiers, SGM8535 Replace LM321MF.
SGM8535
SGM8535.pdf
SGM8535.pdfFEATURES
? Rail-to-Rail Output
? Low Input Offset Voltage: 0.6mV (TYP)
? Unity Gain Stable
? Gain-Bandwidth Product: 1.5MHz
? Supply Voltage Range: 1.8V to 5.5V
? Low Supply Current80μA/Amplifier
(TYP) 0.1μA Shutdown Current for SGM8537
? Small Packaging:
SGM8535 Available in SOT-23-5, SC70-5,
SOIC-8and MSOP-8
SGM8536 Available in MSOP-8 and SOIC-8
SGM8537 Available in SOT-23-6, SOIC-8 and MSOP-8
SGM8538 Available in SOIC-14 and TSSOP-14

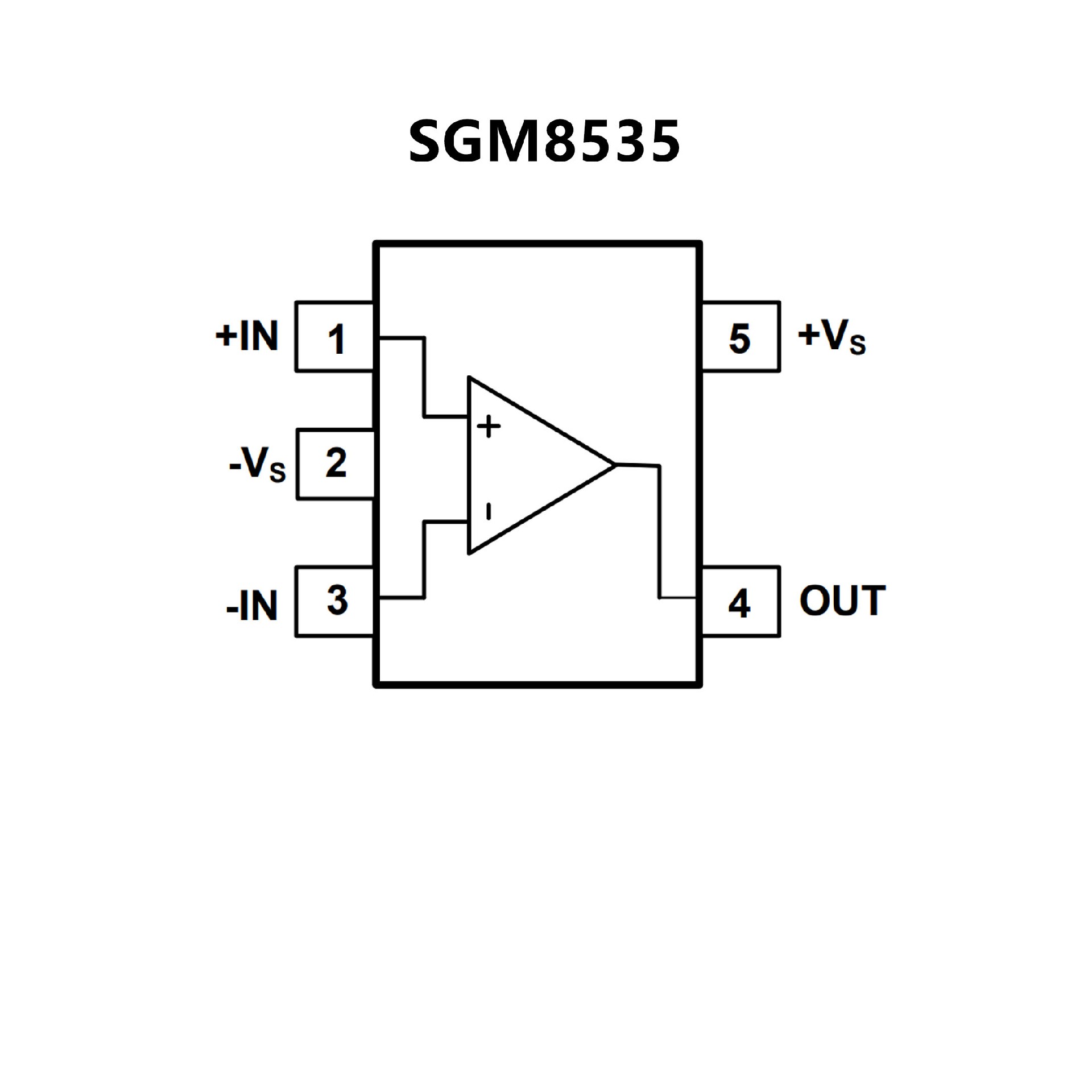

PIN CONFIGUTION
優勢替代
FEATURES
? Gain-Bandwidth product: 1MHz
? Low supply current: 430μA
? Low input bias current: 45nA
? Wide supply voltage range: +3V to +32V
? Single version of LM358

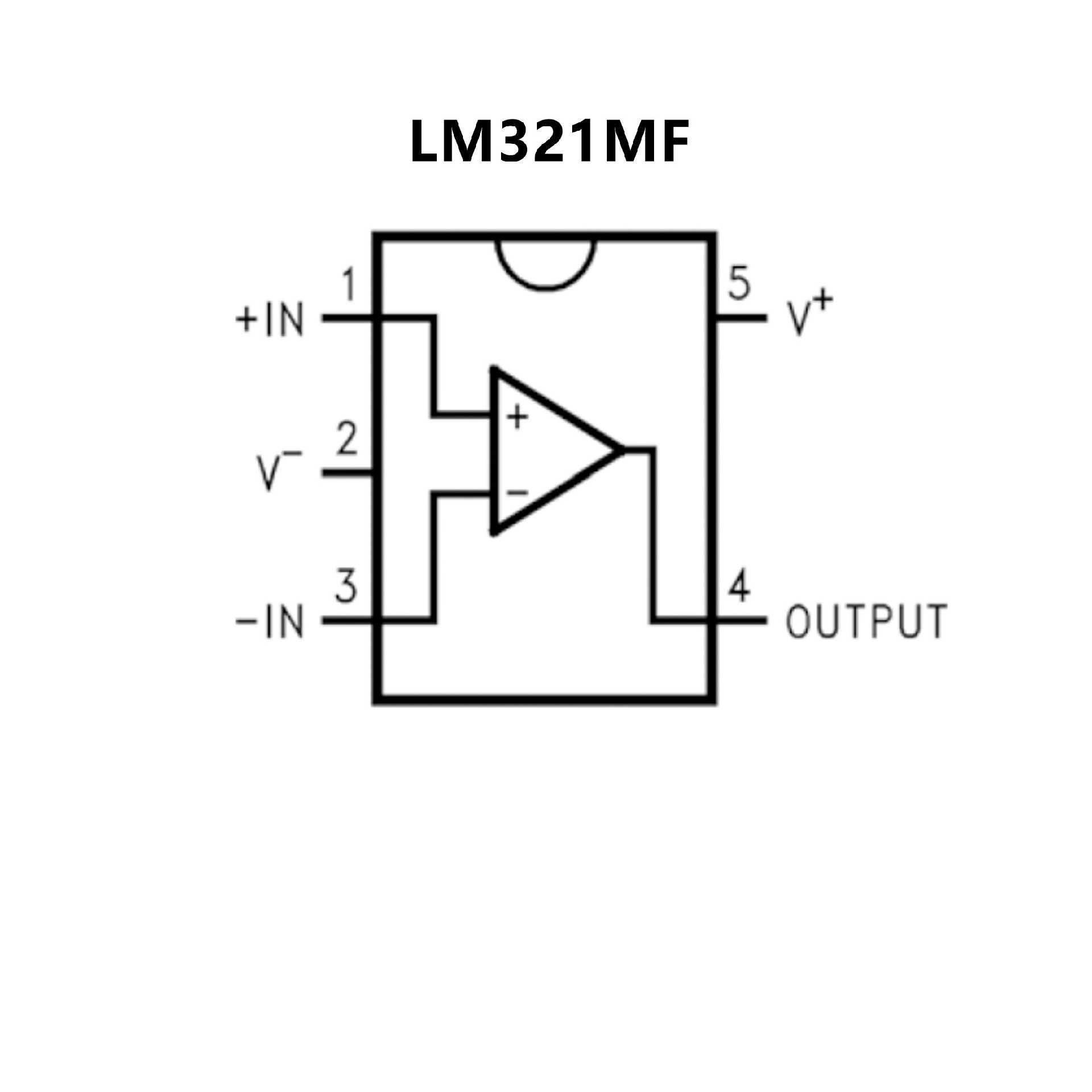

PIN CONFIGUTION
