Micro Power Operational Amplifier, Replace OPA2347
SGM8532
SGM8532.pdf
SGM8532.pdfFEATURES
? Low Cost
? Rail-to-Rail Input and Output
0.8mV Typical VOS
? Unity Gain Stable
? Gain Bandwidth Product: 500kHz
? Very Low Input Bias Currents: 0.5pA
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current: 18μA/Amplifier

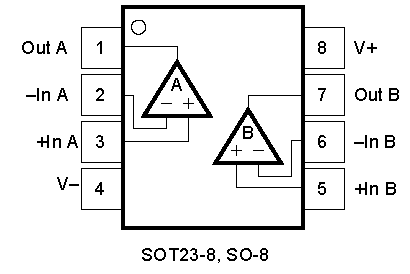

PIN CONFIGUTION
優勢替代
FEATURES
? LOW IQ: 20μA
? HIGH SPEED/POWER RATIO WITH
BANDWIDTH: 350kHz
? RAIL-TO-RAIL INPUT AND OUTPUT
? SINGLE SUPPLY: 2.3V to 5.5V

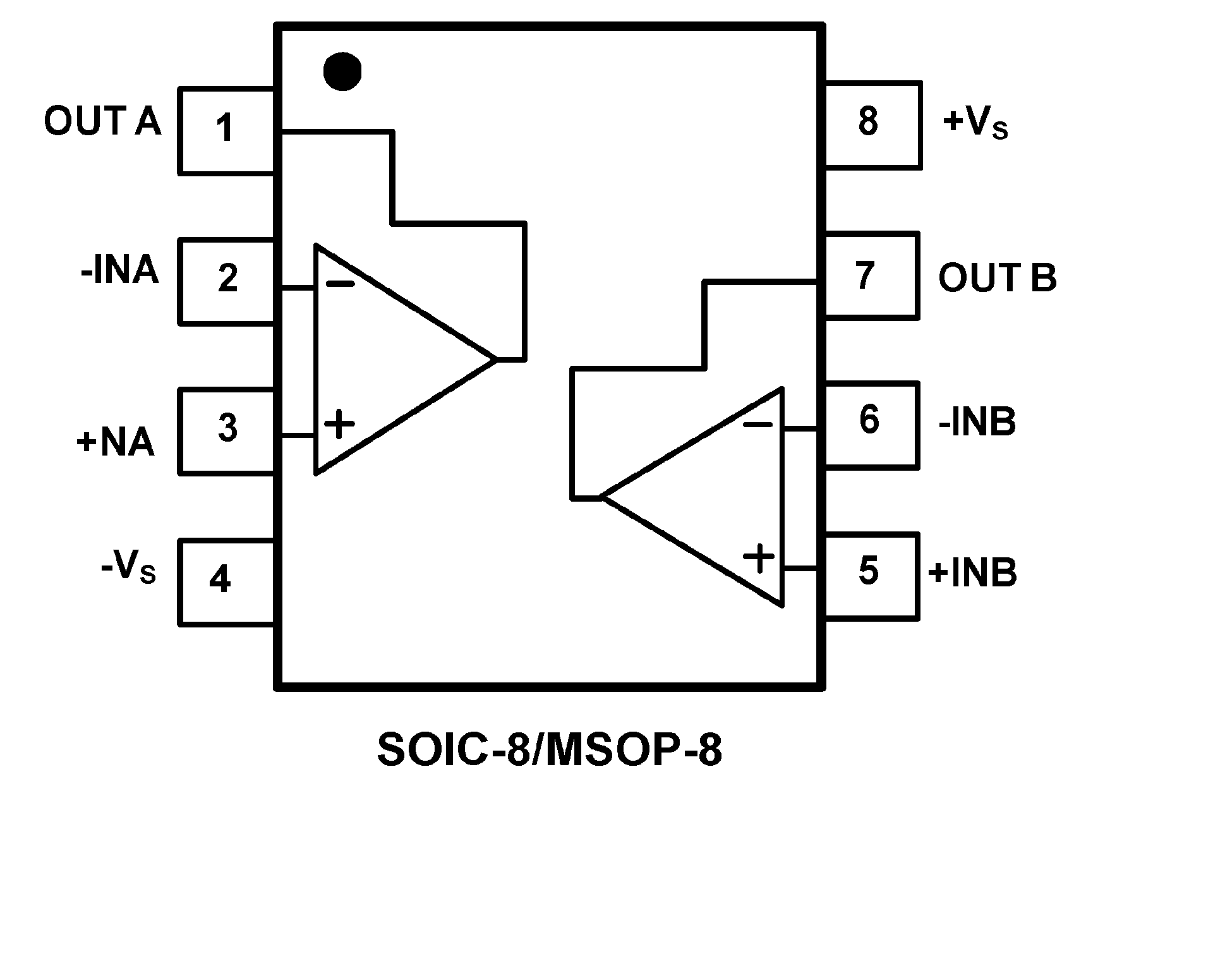

PIN CONFIGUTION
