Application-Specific Operational Amplifier, Replace TSH24
SGM8428
SGM8428.pdf
SGM8428.pdfFEATURES
? -3dB Bandwidth: 18MHz
? Supply Current/Amplifier: 1.6mA
? High Slew Rate: 16V/μs
? Beyond the Rails Input Capability
? Rail-to-Rail Output Swing
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8428 Available in SOIC-14 and TSSOP-14 Packages

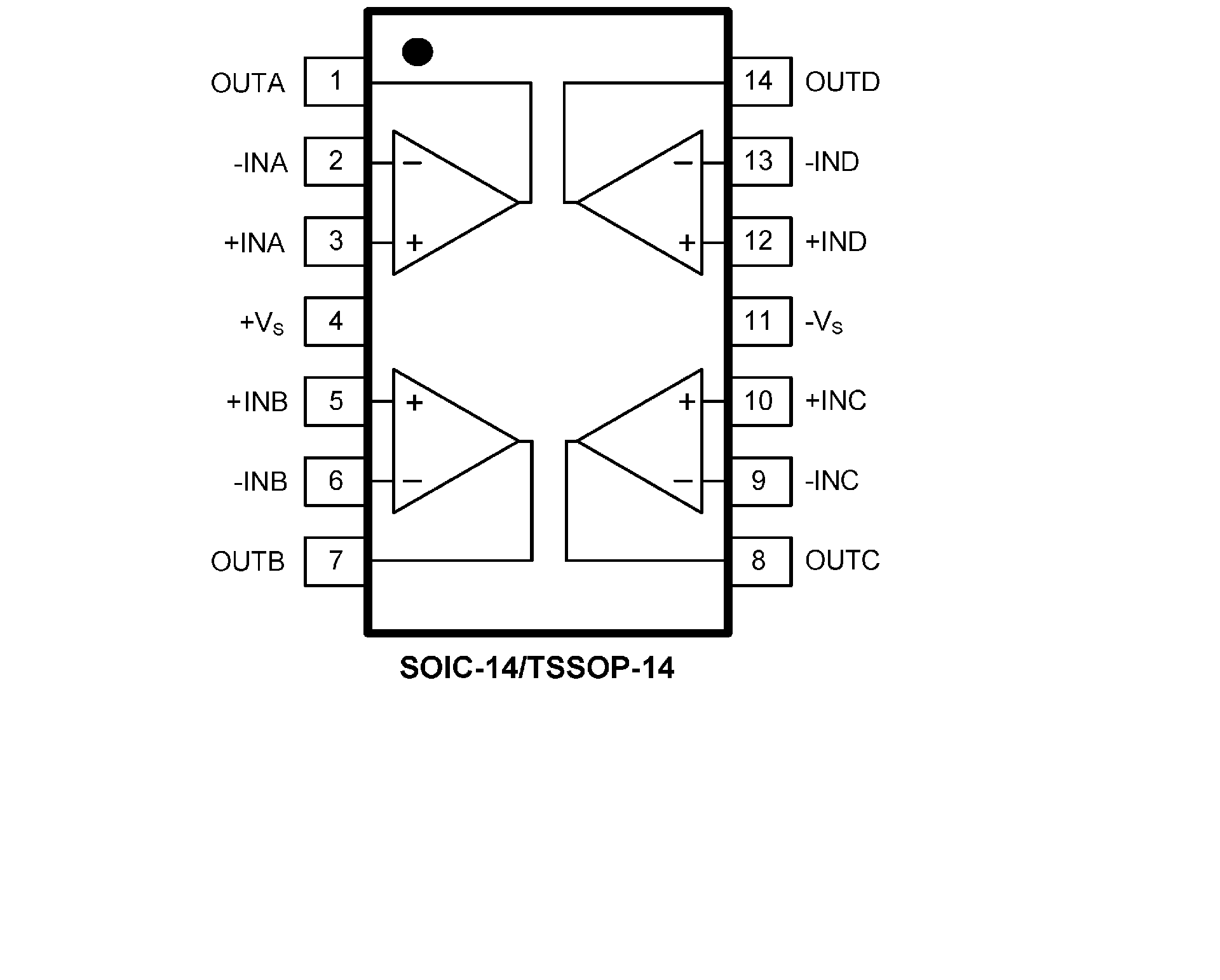

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? HIGH GAIN BANDWIDTH PRODUCT : 25MHz
? HIGH SLEW RATE : 15V/ms
? SINGLE OR DUAL SUPPLY OPERATION :
3V TO 30V (±1.5V to ±15V)
? LOW VOLTAGE NOISE : 14nV/?Hz
? NO PHASE INVERSION
? ESD TOLERANCE : 2kV
? LATCH-UP IMMUNITY
? SPICE MACROMODEL INCLUDED IN THIS
SPECIFICATION

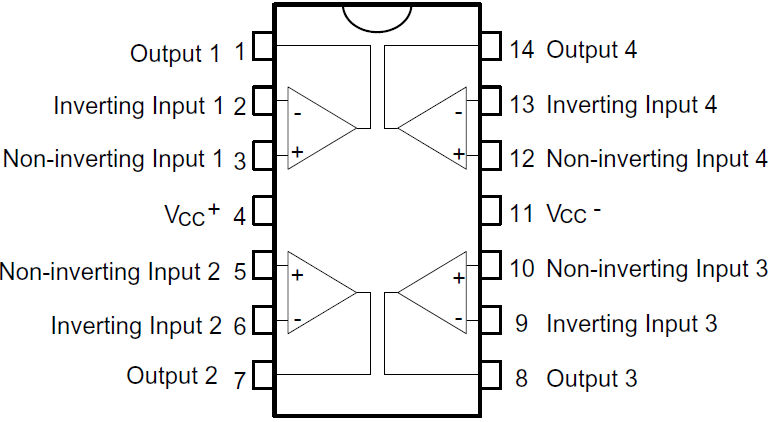

PIN CONFIGUTION
