INA226 High-Side or Low-Side Measurement,Bi-Directional Current and Power Monitor with I2C Compatible Interface.
SGM832
SGM832.pdf
SGM832.pdfFEATURES
? 2.7V to 5.5V Supply Voltage Range
? 0V to 36V Senses Bus Voltages
? High-Side or Low-Side Sensing
? Current, Voltage and Power Monitor
? Low Gain Error: 0.02% (TYP)
? Low Input Offset Voltage: 5μV (TYP)
? Programmable Averaging and Conversion Times
? 16 Programmable Addresses
? Available in a Green MSOP-10 Package

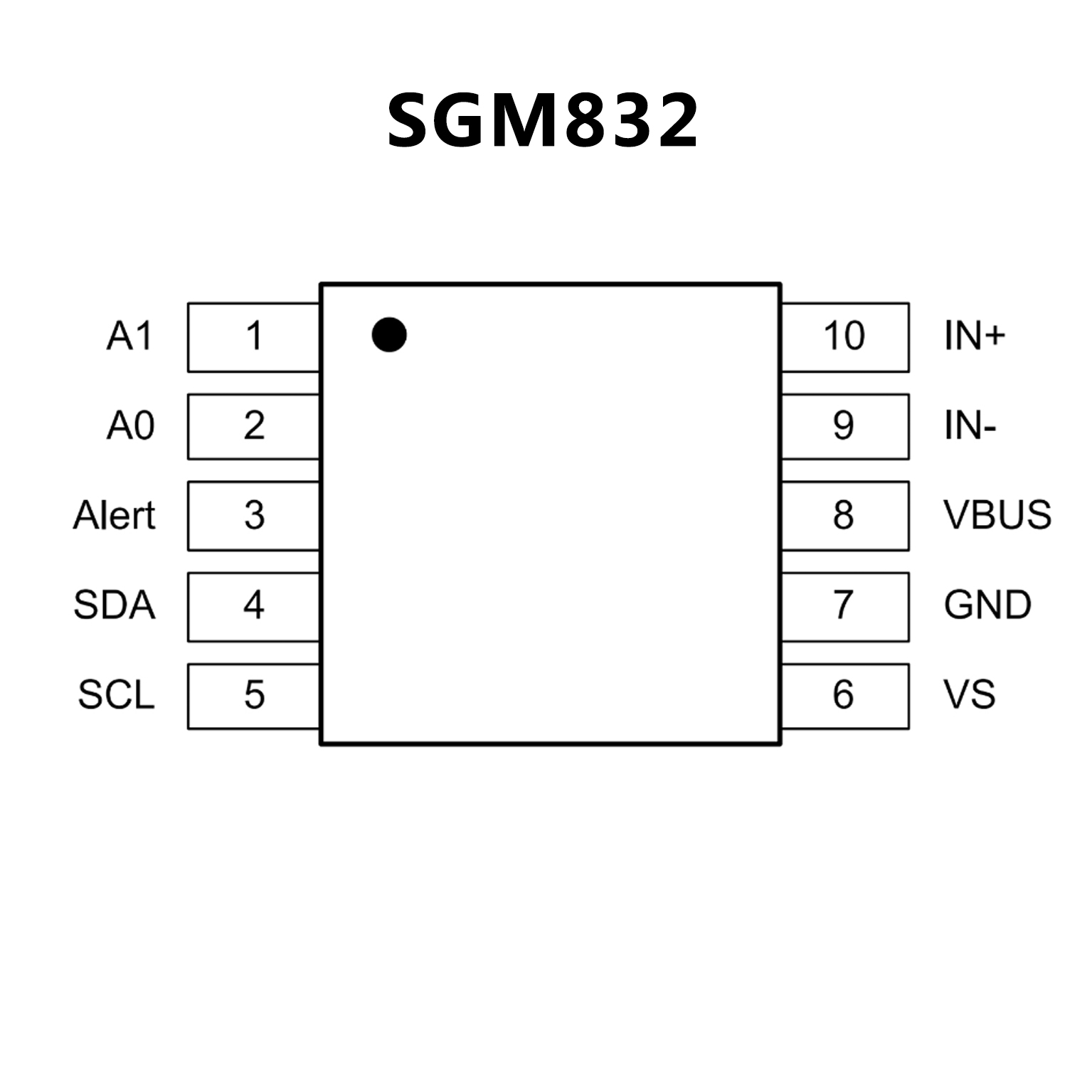

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Senses Bus Voltages From 0 V to 36 V
? High-Side or Low-Side Sensing
? Reports Current, Voltage, and Power
? High Accuracy:
0.1% Gain Error (Max)
10 μV Offset (Max)
? Configurable Averaging Options
? 16 Programmable Addresses
? Operates from 2.7-V to 5.5-V Power Supply
? 10-Pin, DGS (VSSOP) Package

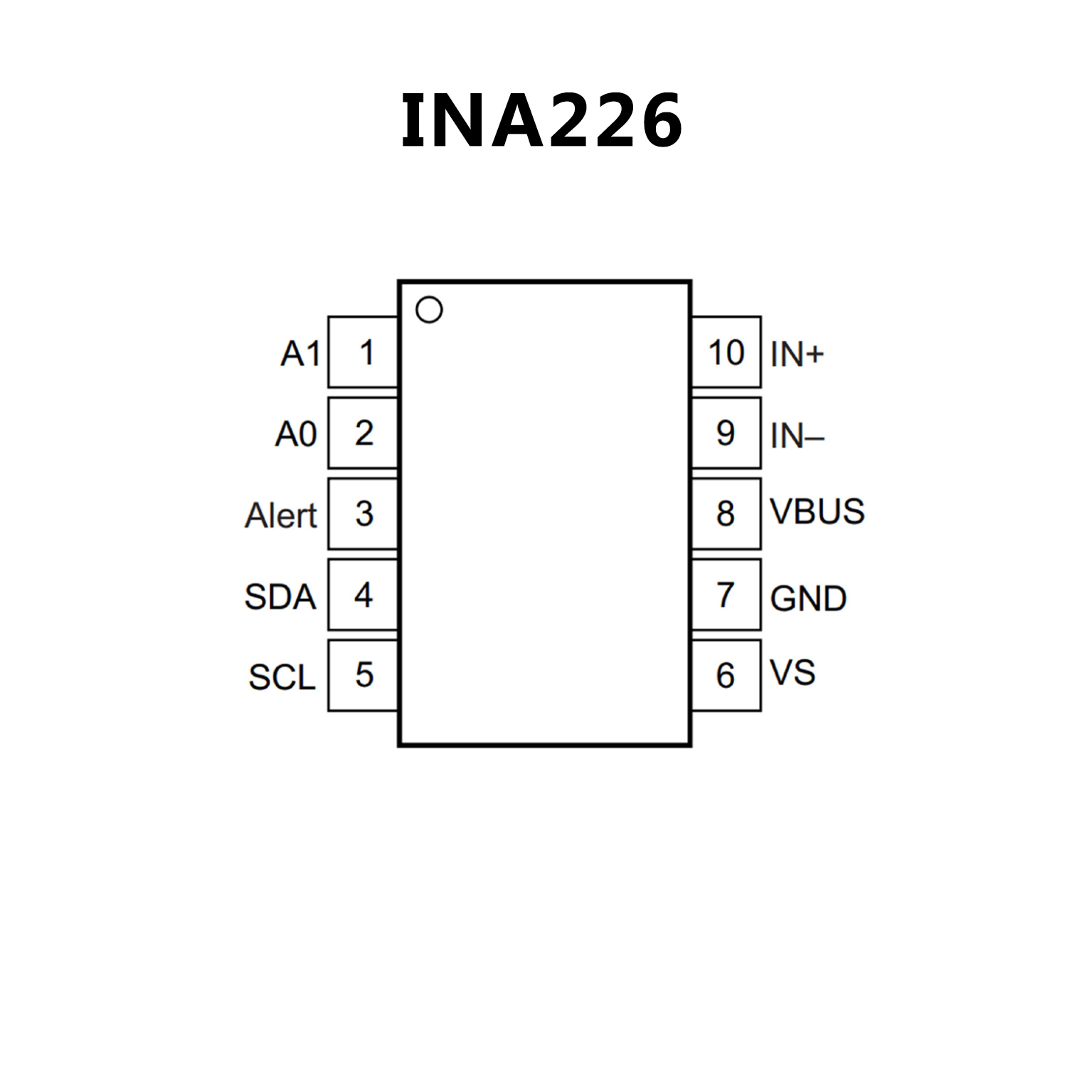

PIN CONFIGUTION
