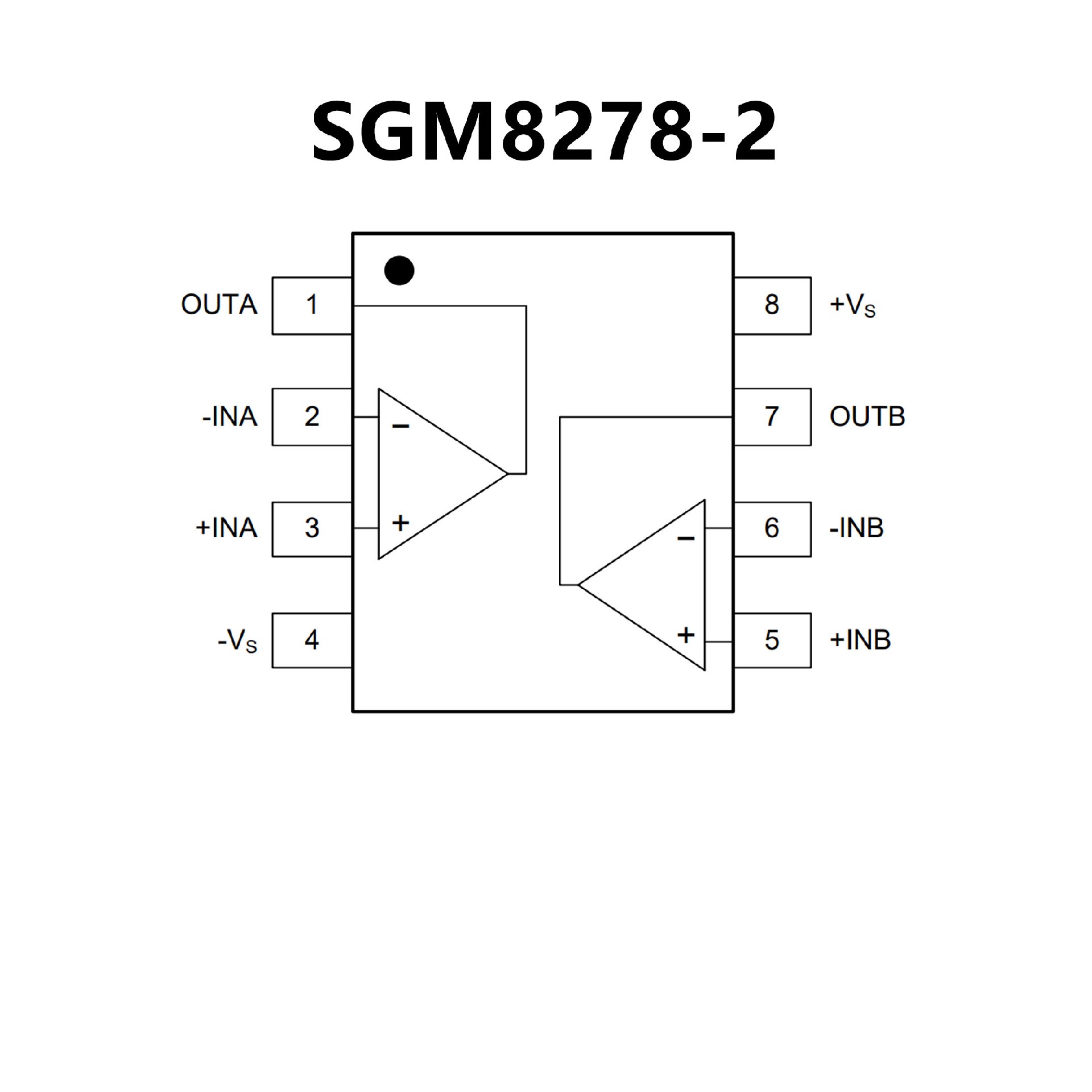

SGM8278-2.pdf? Rail-to-Rail Input and Output
? Support Single or Dual Power Supplies
? Wide Input Common Mode and
Differential VoltageRanges
? Low Input Offset Voltage: 2mV (MAX)
? Low Input Bias Current
? Low Input Offset Current
? High Input Impedance
? High Output Current: 95mA
(Able to Drive 32Ω Load)
? Output Short-Circuit Protection
? Low Noise: 15nV/√Hz at 1kHz
? Gain-Bandwidth Product: 3.3MHz
? Slew Rate: 2V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8, MSOP-8, TDFN-2×2-8AL,
TDFN-3×3-8BL and WLCSP-1.57×1.57-8B Packages

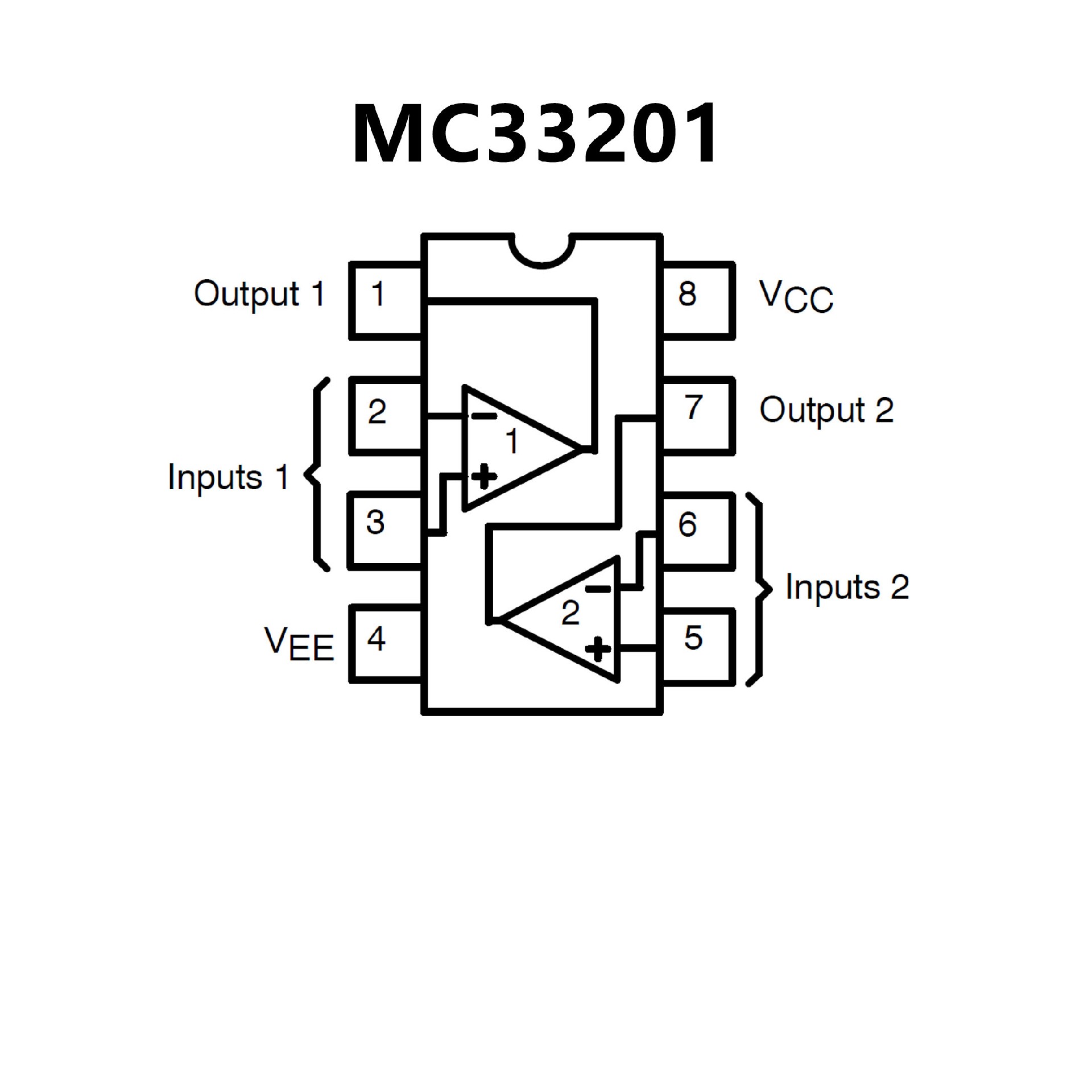

? Low Voltage, Single Supply Operation
(+1.8 V and Ground to +12 V and Ground)
? Input Voltage Range Includes both Supply Rails
? Output Voltage Swings within 50 mV of both Rails
? No Phase Reversal on the Output for Over?driven Input Signals
? High Output Current (ISC = 80 mA, Typ)
? Low Supply Current (ID = 0.9 mA, Typ)
? 600 Ω Output Drive Capability
? Extended Operating Temperature Ranges
(?40° to +105°C and ?55° to +125°C)
? Typical Gain Bandwidth Product = 2.2 MHz
? NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC?Q100
Qualified and PPAP Capable
? These Devices are Pb?Free and are RoHS Compliant
