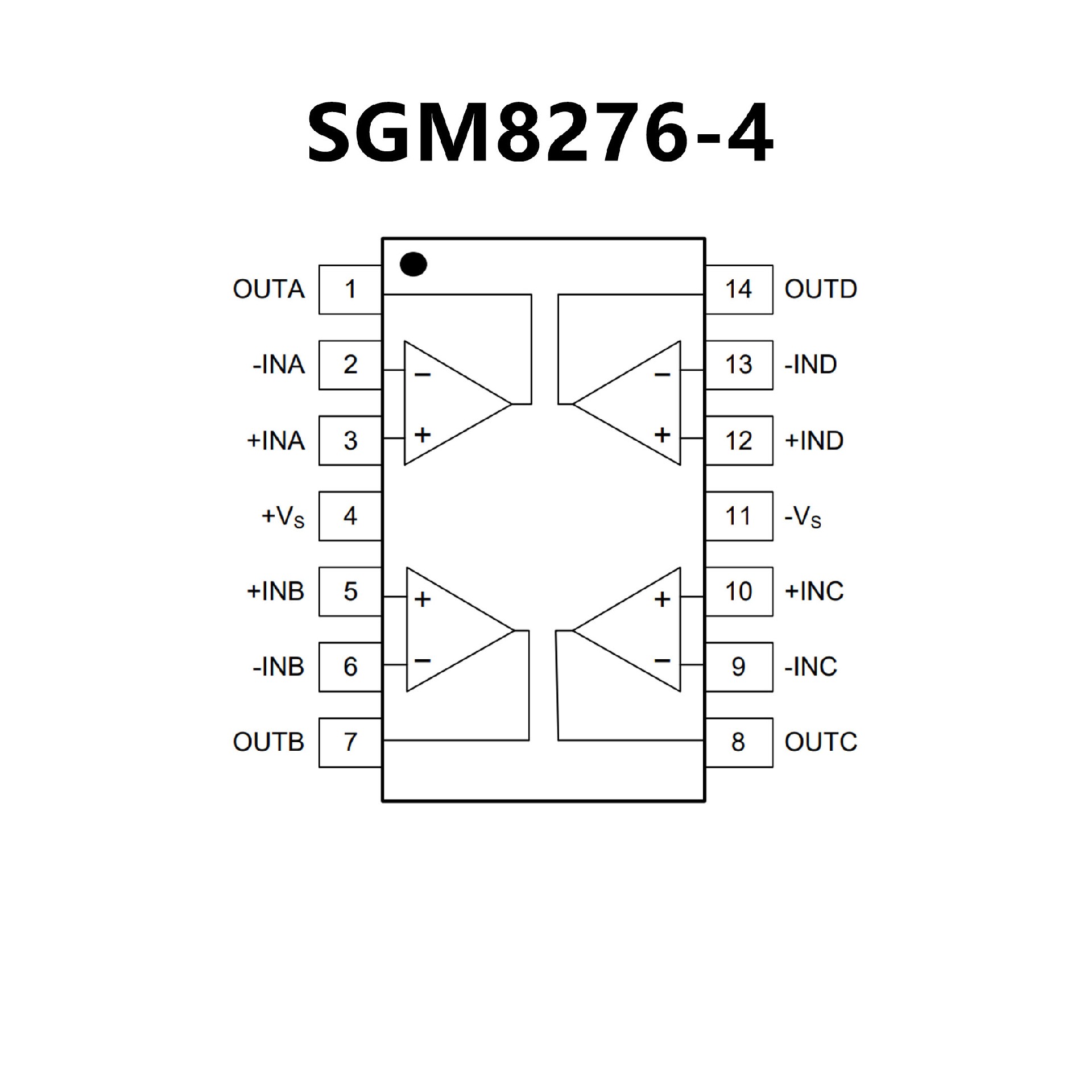

SGM8276-4.pdf? Wide Input Common Mode and Differential
VoltageRanges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
? Low Noise: 10nV/Hz at 1kHz
? Gain-Bandwidth Product: 10MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8276-1 Available in a Green SOT-23-5 Package
SGM8276-2 Available in a Green SOIC-8 Package
SGM8276-4 Available in a Green SOIC-14 Package

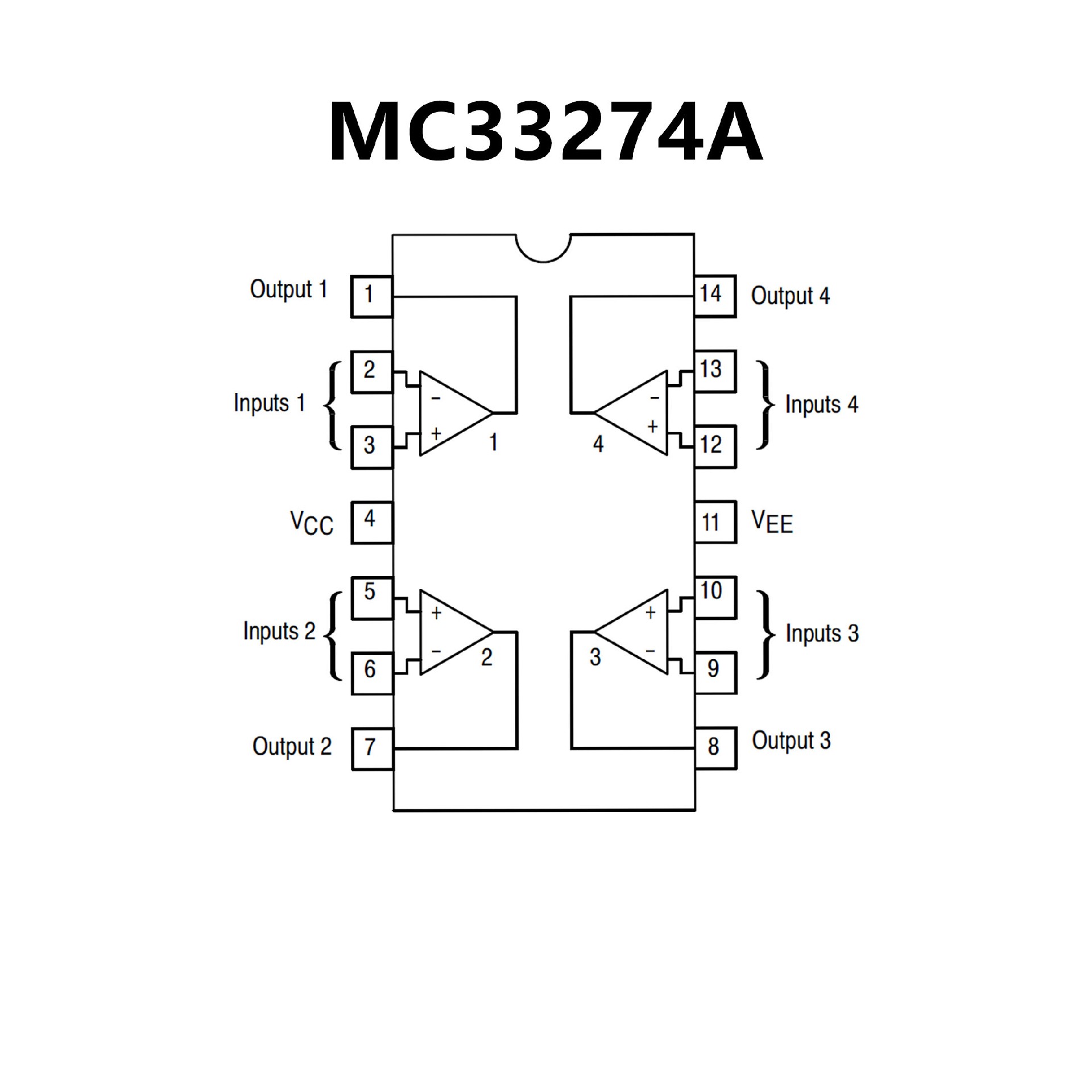

? Input Offset Voltage Trimmed to 100 V (Typ)
? Low Input Bias Current: 300 nA
? Low Input Offset Current: 3.0 nA
? High Input Resistance: 16 MΩ
? Low Noise: 18 nV/ √ Hz @ 1.0 kHz
? High Gain Bandwidth Product: 24 MHz @ 100 kHz
? High Slew Rate: 10 V/μs
? Power Bandwidth: 160 kHz
? Excellent Frequency Stability
? Unity Gain Stable: w/Capacitance Loads to 500 pF
? Large Output Voltage Swing: +14.1 V/ ?14.6 V
? Low Total Harmonic Distortion: 0.003%
? Power Supply Drain Current: 2.15 mA per Amplifier
? Single or Split Supply Operation: +3.0 V to +36 V or
±1.5 V to ±18 V
? ESD Diodes Provide Added Protection to the Inputs
? NCV Prefix for Automotive and Other Applications
Requiring Unique Site and Control Change Requirements;
AEC?Q100 Qualified and PPAP Capable
? Pb?Free Packages are Available
