SGM8276-2.pdf? Wide Input Common Mode and
Differential VoltageRanges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
? Low Noise: 10nV/Hz at 1kHz
? Gain-Bandwidth Product: 10MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8276-1 Available in a Green SOT-23-5 Package

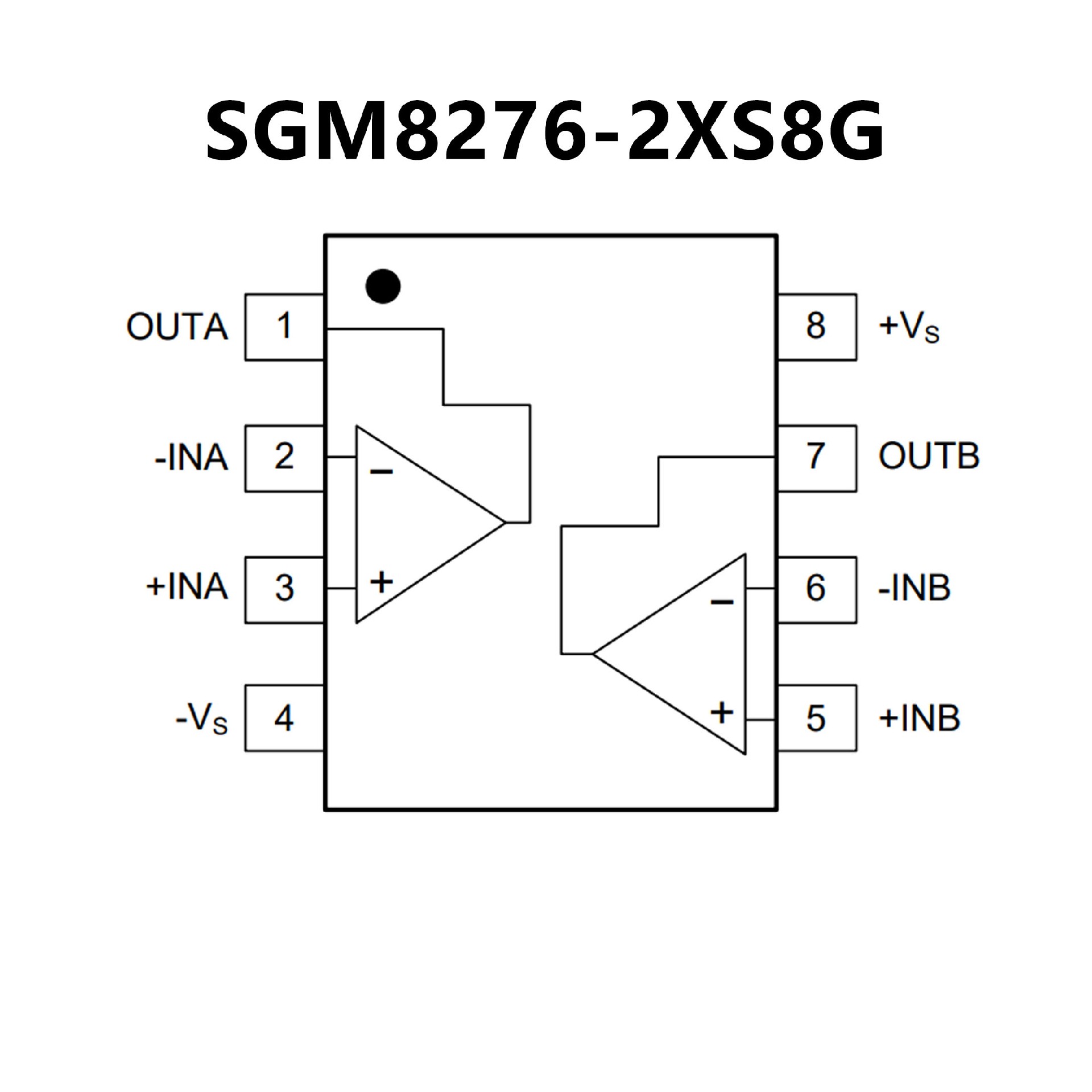

SGM8276-2 Available in a Green SOIC-8 Package
SGM8276-4 Available in a Green SOIC-14 Package
? Supply Range: +2.7V to +36V, ±1.35V to ±18V
? Low Noise: 14nV/√Hz
? Low Offset Drift: ±0.3μV/°C (typ)
? RFI Filtered Inputs
? Input Range Includes the Negative Supply
? Input Range Operates to Positive Supply
? Rail-to-Rail Output
? Gain Bandwidth: 3MHz
? Low Quiescent Current: 475μA per Amplifier
? High Common-Mode Rejection: 120dB (typ)
? Low Input Bias Current: 8pA
