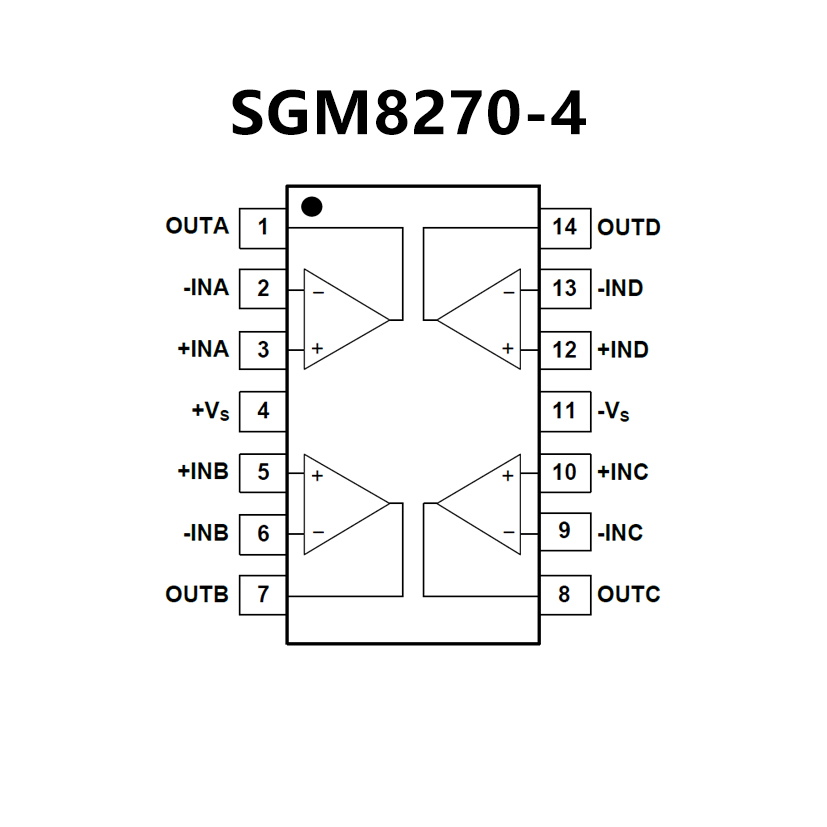

SGM8270-4.pdf? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 2.8mV (MAX)
? Low Noise: 15nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.5MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating '
Temperature Range
? Available in Green SOIC-8
and MSOP-8 Packages
? NEW TL331B and TL391B
? Improved specifications of B-version
Maximum rating: up to 38 V
ESD rating (HBM): 2k V
Improved reverse voltage performance
Low input offset: 0.37 mV
Low input bias current: 3.5 nA
Low supply-current: 430 μA
Faster response time of 1 μsec
TL391B provides an alternate pinout
? TL331B is improved drop-in
replacement forTL331
? Common-mode input voltage
range includesground
? Differential input voltage range equal to
maximumrated supply voltage: ±38 V
? Low output saturation voltage
? Output compatible with TTL, MOS, and CMOS
