Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-2 Replace OPA2171.
SGM8270-2
SGM8270-2.pdf
SGM8270-2.pdfFEATURES
? Wide Input Common Mode and DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 2.8mV (MAX)
? Low Noise: 15nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.5MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

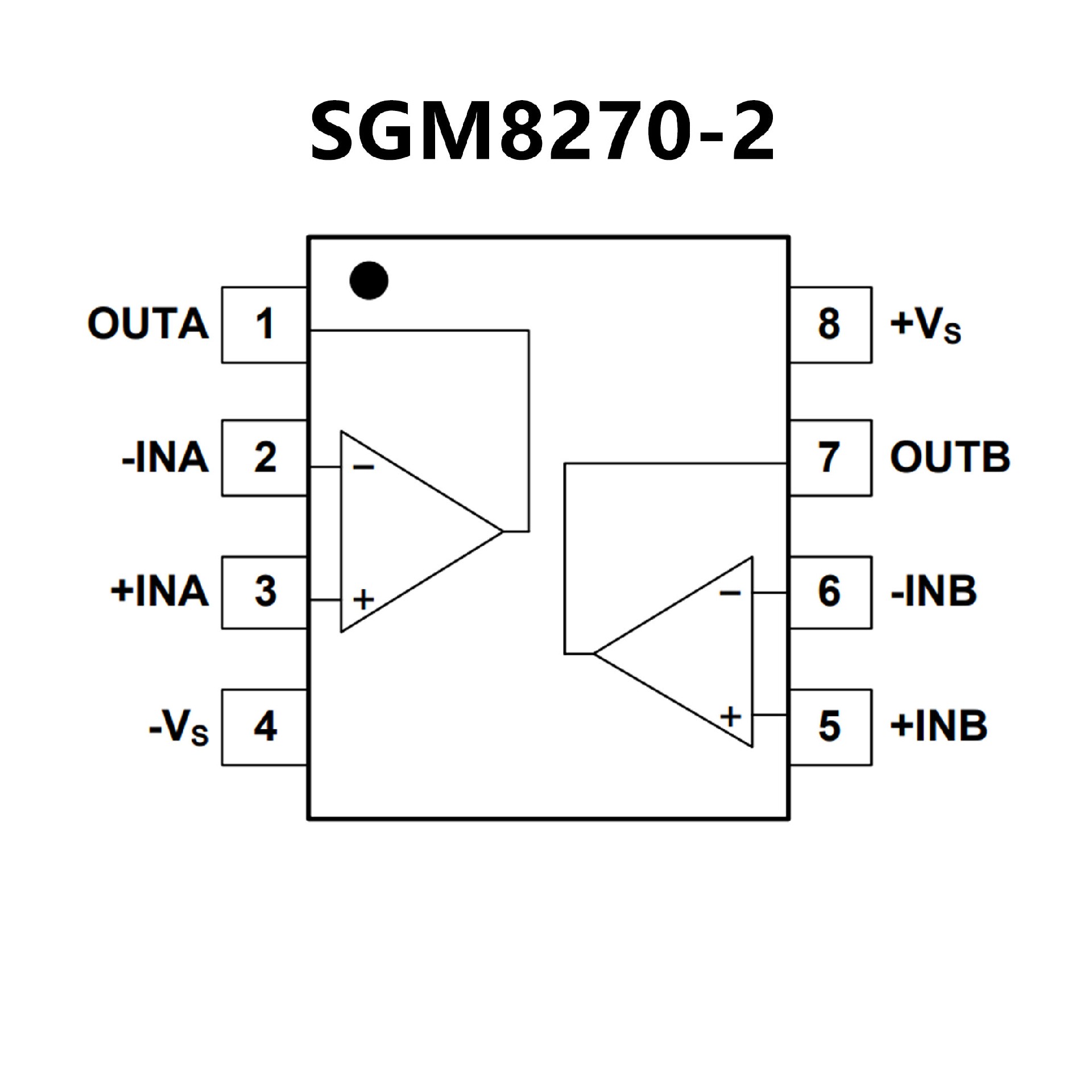

PIN CONFIGUTION
優勢替代
FEATURES
? Supply Range: +2.7V to +36V, ±1.35V to ±18V
? Low Noise: 14nV/√Hz
? Low Offset Drift: ±0.3μV/°C (typ)
? RFI Filtered Inputs
? Input Range Includes the Negative Supply
? Input Range Operates to Positive Supply
? Rail-to-Rail Output
? Gain Bandwidth: 3MHz
? Low Quiescent Current: 475μA per Amplifier
? High Common-Mode Rejection: 120dB (typ)
? Low Input Bias Current: 8pA
PIN CONFIGUTION
