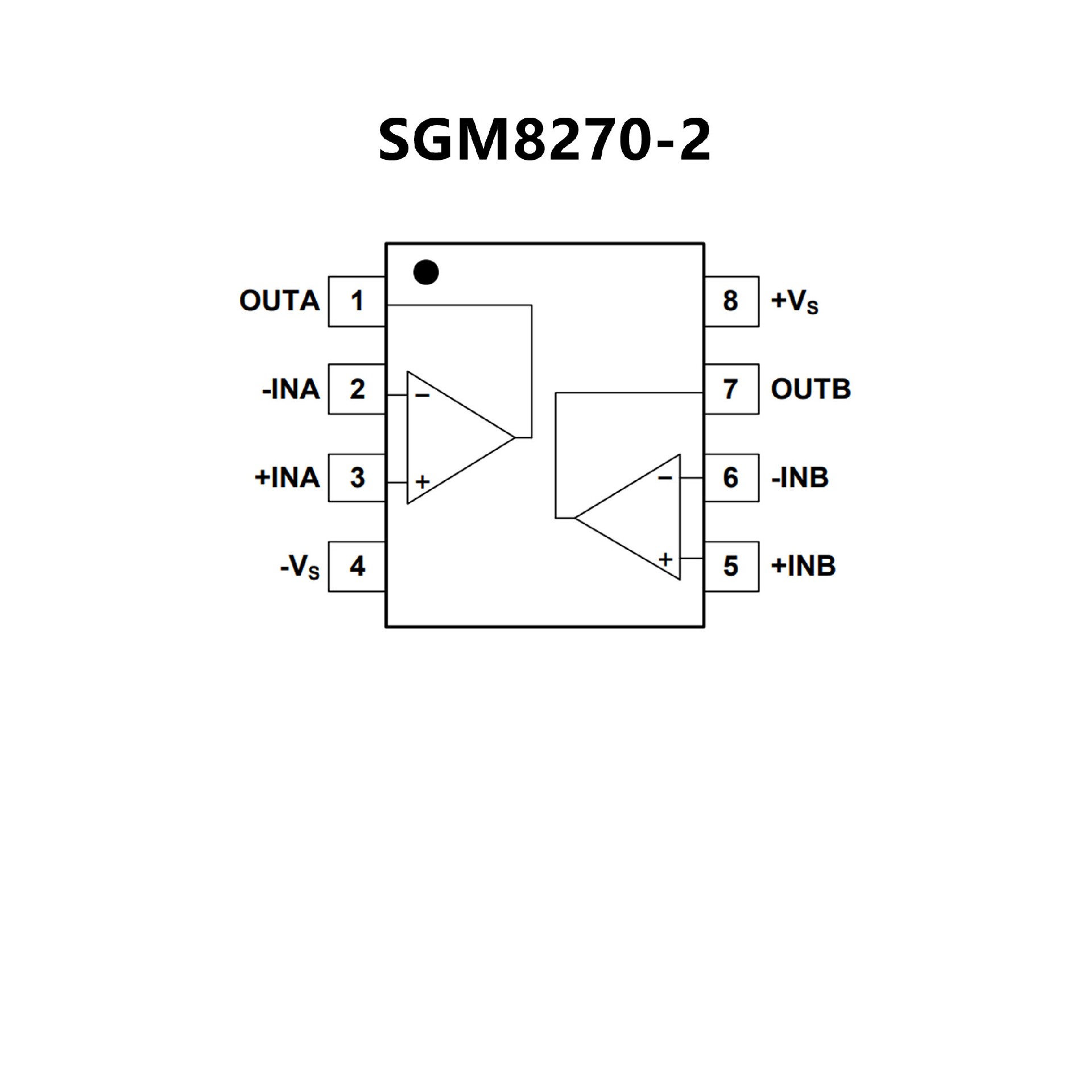

SGM8270-2.pdf? Wide Input Common Mode and
DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? Rail-to-Rail Input and Output
? High Input Impedance
? Low Offset Voltage: 2.8mV (MAX)
? Low Noise: 15nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.5MHz
? High Slew Rate: 8V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 Package
? Wide Power Supply Voltage Range:
? Single Supply: 3V to 36V
? Dual Supplies: ±1.5V to ±18V
? Very Low Supply Current Drain

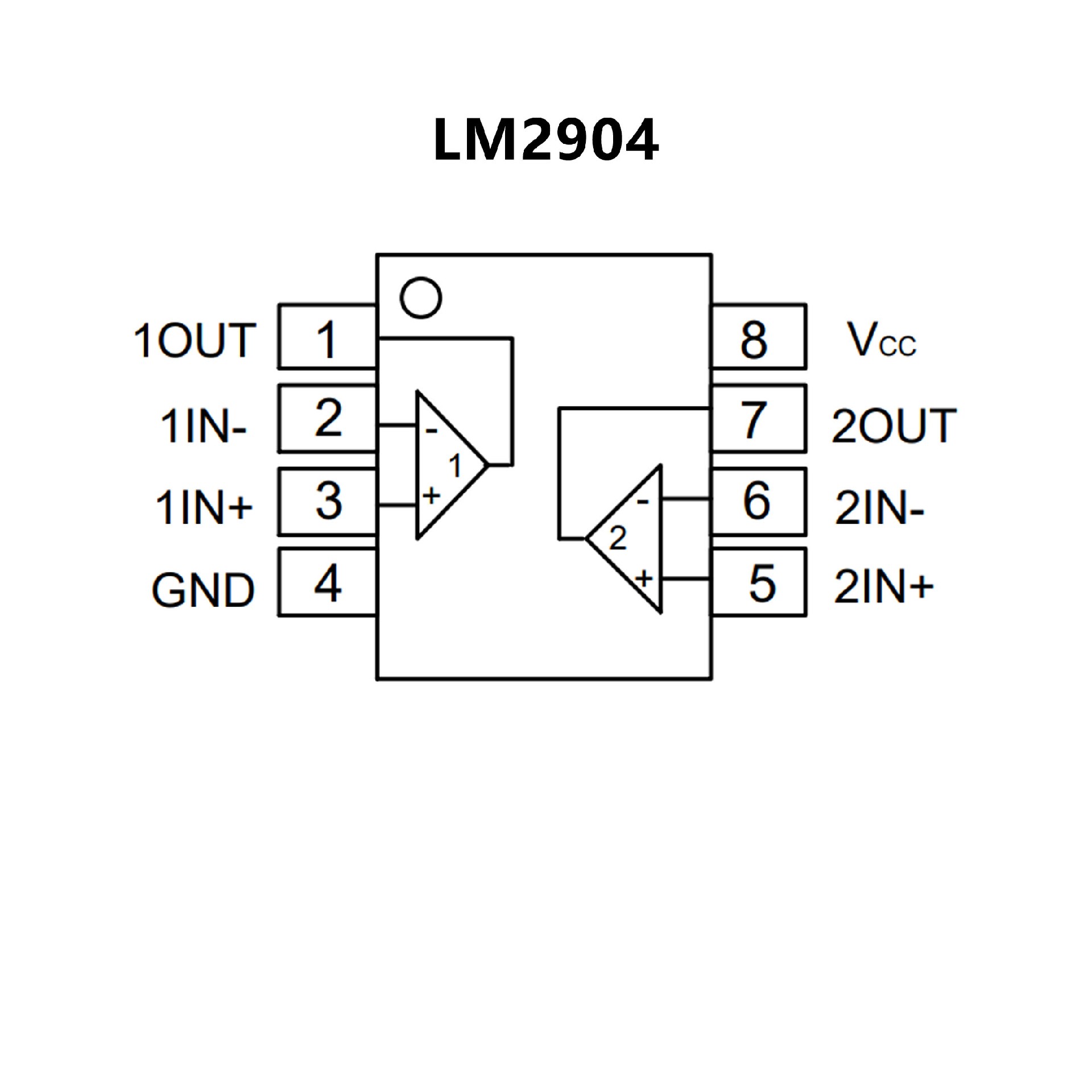

? LM2904 500μA
Independent of Supply Voltage
? LM2902 700μA
Independent of Supply Voltage
? Low Input Bias Current: 20nA
? Low Input Offset Voltage:
? A Version: 1mV Typ
? Non-A Version: 2mV Typ
? Large DC Voltage Gain: 100dB
? Wide Bandwidth (Unity Gain): 700kHz
(TemperatureCompensated)
? Internally Compensated with Unity Gain
? Input Common-Mode Voltage Range
Includes Ground
? Differential Input Voltage Range
Equal to the Power SupplyVoltage
? Large Output Voltage Swing: 0V to VCC -1.5V
? SO-8, MSOP-8, TSSOP-8 (Duals) and SO-14,
TSSOP-14(Quads) Packages Available
? Totally Lead-Free & Fully RoHS Compliant
(Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? An Automotive-Compliant Part is Available Under
SeparateDatasheet (LM2902Q_LM2904Q)
