SGM8261-2YS8G.pdf? Superior Sound Quality
? Low Offset Voltage: ±350μV (MAX)
? Ultra Low Noise: 1.6nV/Hz at 1kHz
? Ultra Low Distortion: 0.00002% at 1kHz
? High Slew Rate: 16V/μs
? Gain-Bandwidth Product: 16MHz (G = +1)
? High Open-Loop Gain: 140dB
? Unity-Gain Stable
? Low Quiescent Current: 3.8mA/Amplifier
? Rail-to-Rail Output
? Support Single or Dual Power Supplies:
3.6V to 36V or ±1.8V to ±18V
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8261-1 Available in a Green SOIC-8 Package

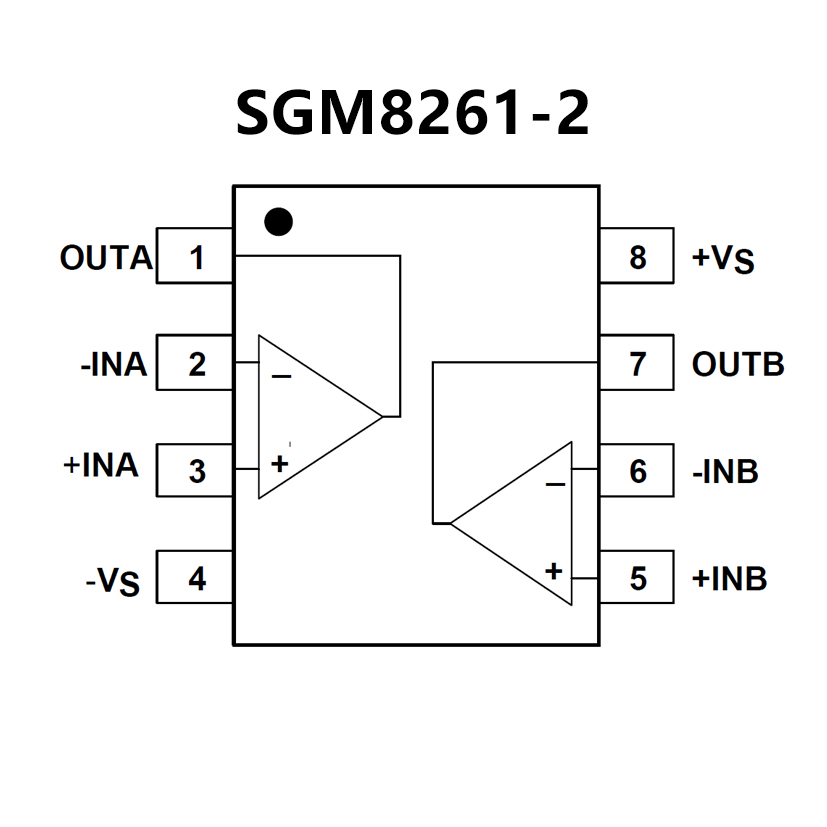

SGM8261-2 Available in Green SOIC-8, MSOP-8
and TDFN-3×3-8BL Packages
? Wide Bandwidth: 10 MHz
? High Output Drive:
IOH: 57 mA at VDD – 1.5 V
IOL: 55 mA at 0.5 V
? High Slew Rate:
SR+: 16 V/μs
SR–: 19 V/μs
? Wide Supply Range: 4.5 V to 16 V
? Supply Current: 1.9 mA/Channel
? Ultralow Power Shutdown Mode:
DD: 125 μA/Channel
? Low Input Noise Voltage: 8.5 nV√Hz
? Input Offset Voltage: 60 μV
? Ultra-Small Packages:
8- or 10-Pin MSOP (TLC080/1/2/3)
