Low Noise Operational Amplifier, SGM8261-2 Replace OPA1662.
SGM8261-2
SGM8261-2.pdf
SGM8261-2.pdfFEATURES
? Superior Sound Quality
? Low Offset Voltage: ±350μV (MAX)
? Ultra Low Noise: 1.6nV/Hz at 1kHz
? Ultra Low Distortion: 0.00002% at 1kHz
? High Slew Rate: 16V/μs
? Gain-Bandwidth Product: 16MHz (G = +1)
? High Open-Loop Gain: 140dB
? Unity-Gain Stable
? Low Quiescent Current: 3.8mA/Amplifier
? Rail-to-Rail Output
? Support Single or Dual Power Supplies:
3.6V to 36V or ±1.8V to ±18V

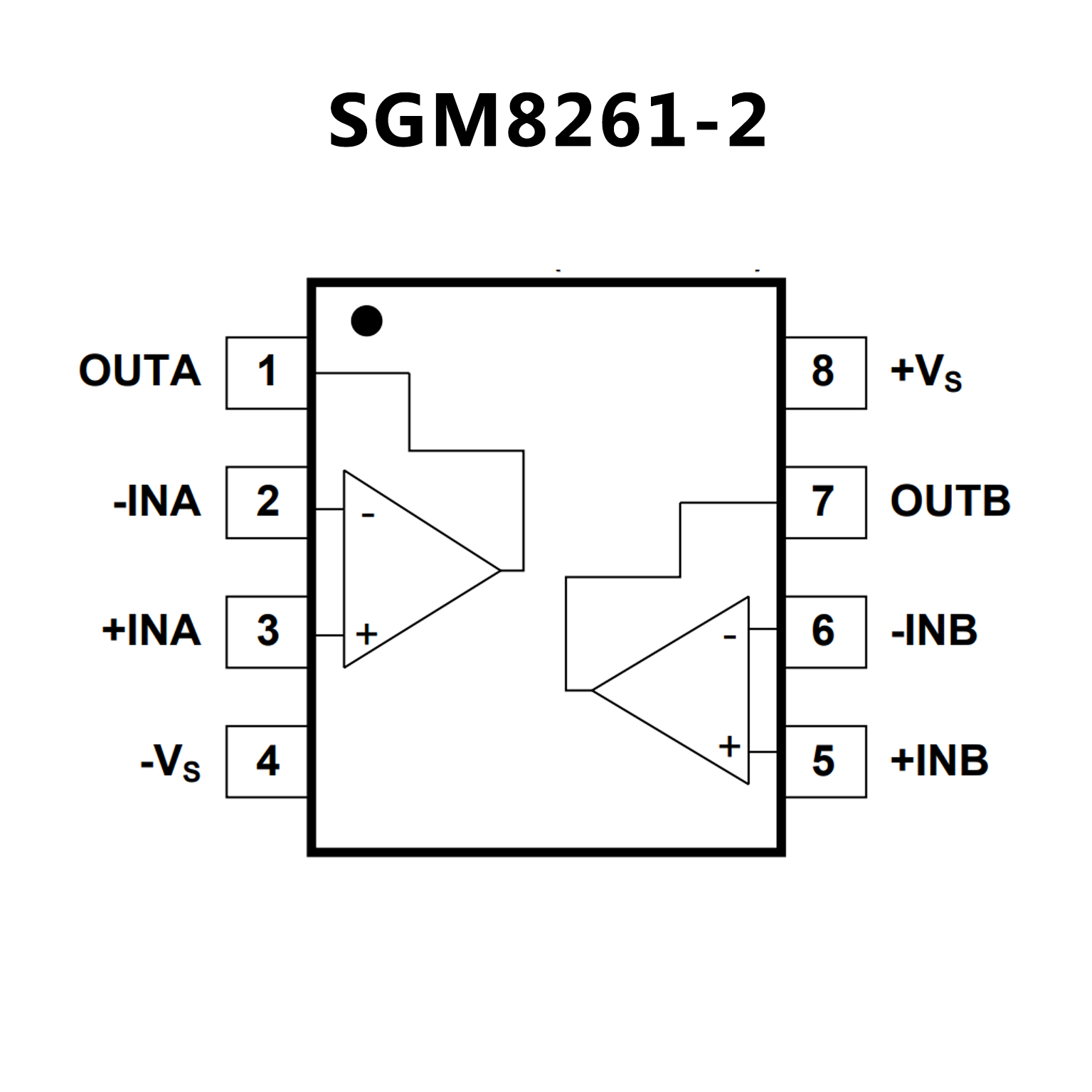

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low Noise: 3.3 nV/√Hz at 1 kHz
? Low Distortion: 0.00006% at 1 kHz
? Low Quiescent Current: 1.5 mA per Channel
? Slew Rate: 17 V/μs
? Wide Gain Bandwidth: 22 MHz (G = +1)
? Unity Gain Stable ±30 mA.
? Rail-to-Rail Output
? Wide Supply Range: ±1.5V to ±18V, or +3V to +36V
? Dual and Quad Versions Available
? Small Package Sizes: Dual: SO-8 and MSOP-8

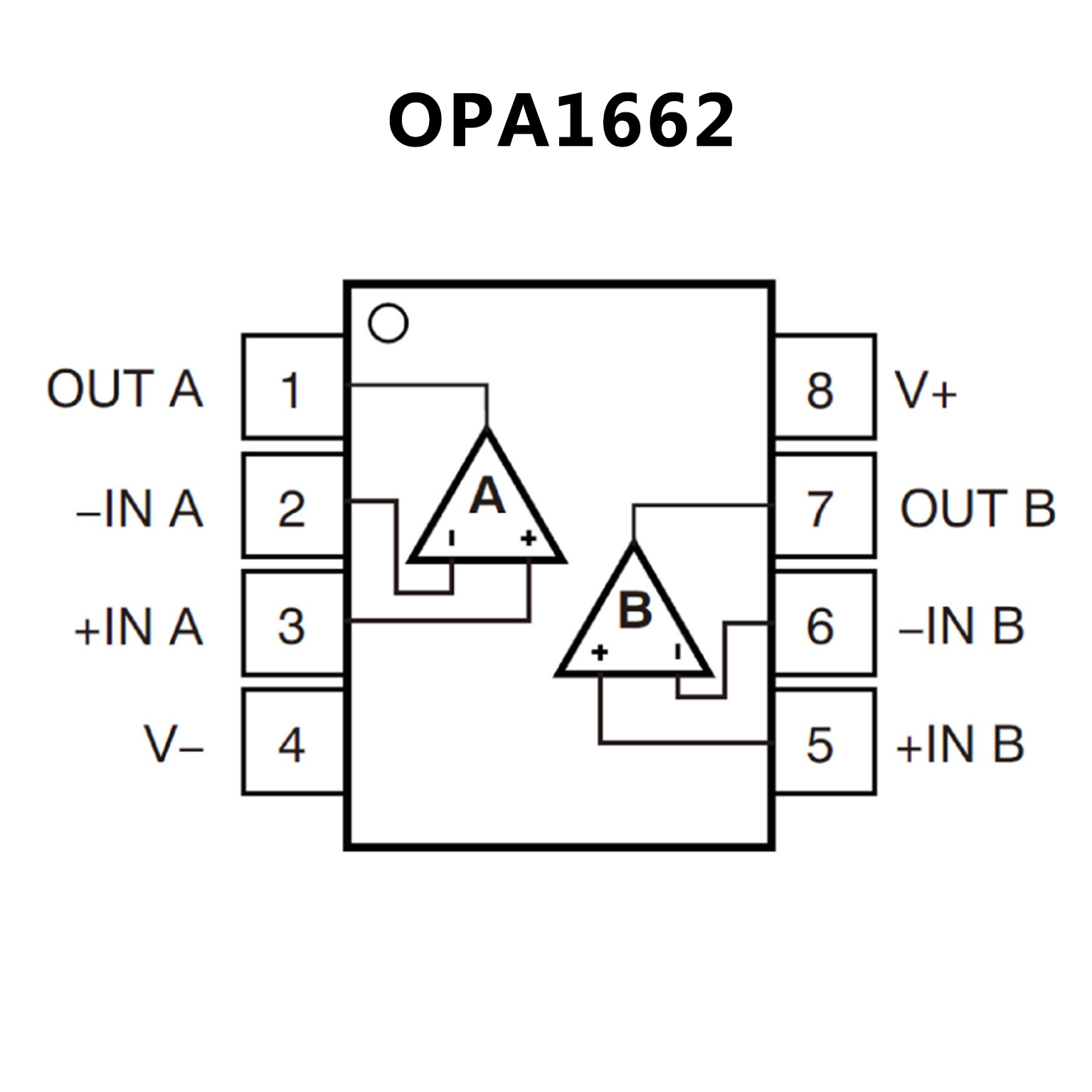

PIN CONFIGUTION
