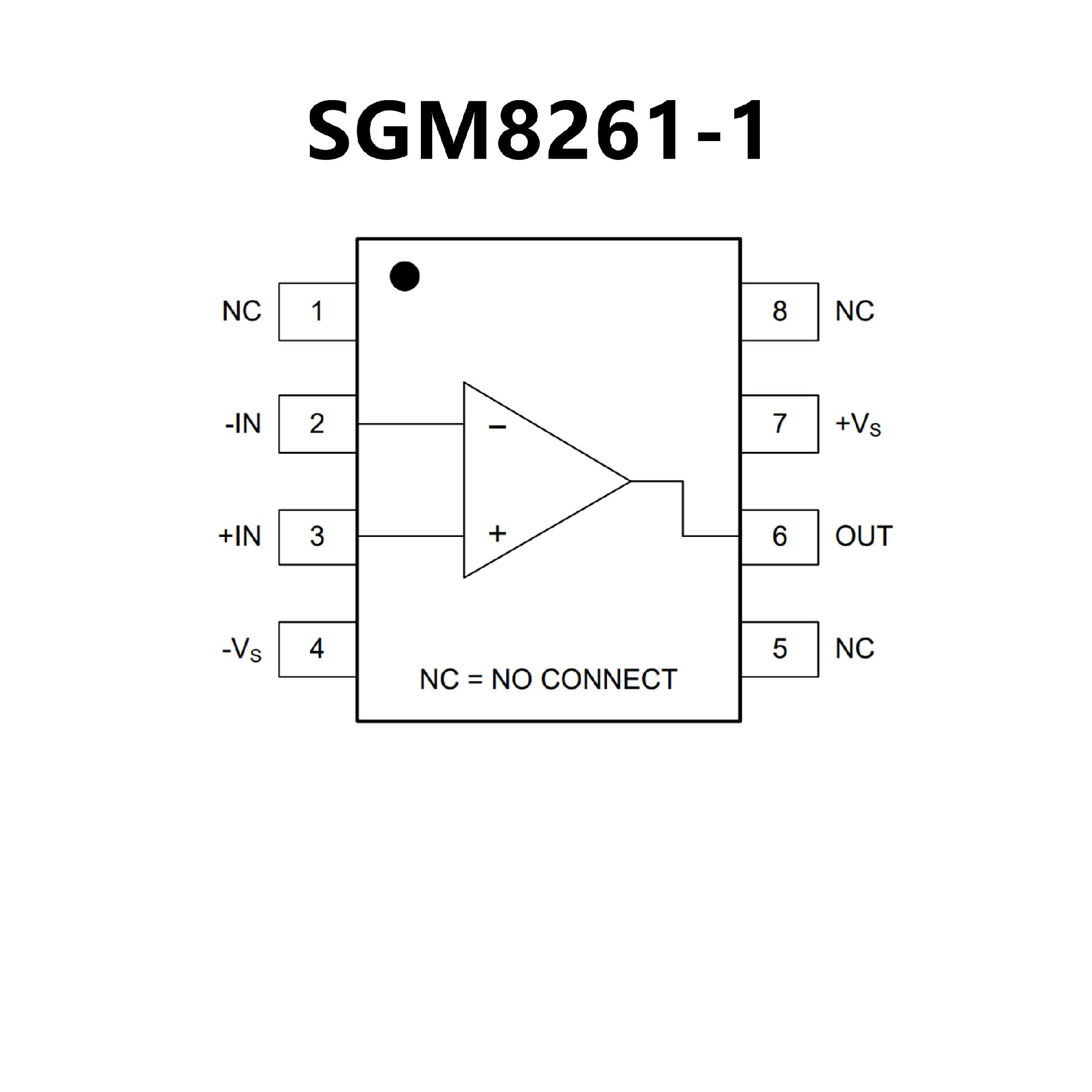

SGM8261-1.pdf? Superior Sound Quality
? Low Offset Voltage: ±350μV (MAX)
? Ultra Low Noise: 1.6nV/Hz at 1kHz
? Ultra Low Distortion: 0.00002% at 1kHz
? High Slew Rate: 16V/μs
? Gain-Bandwidth Product: 16MHz (G = +1)
? High Open-Loop Gain: 140dB
? Unity-Gain Stable
? Low Quiescent Current: 3.8mA/Amplifier
? Rail-to-Rail Output
? Support Single or Dual Power Supplies:
3.6V to 36V or ±1.8V to ±18V
? -40℃ to +85℃ Operating Temperature Range
? Small Packaging:
SGM8261-1 Available in a Green SOIC-8 Package
SGM8261-2 Available in Green SOIC-8, MSOP-8
and TDFN-3×3-8BL Packages
? Wide Supply Range: ±4 V to ±30 V
? High Output Current: 200 mA Continuous
? Low Noise: 14 nV/√Hz
? Fully Protected:
Thermal Shutdown
Output Current-Limited
? Thermal Shutdown Indicator
? Wide Output Swing: 2 V from Rail
? Fast Slew Rate:

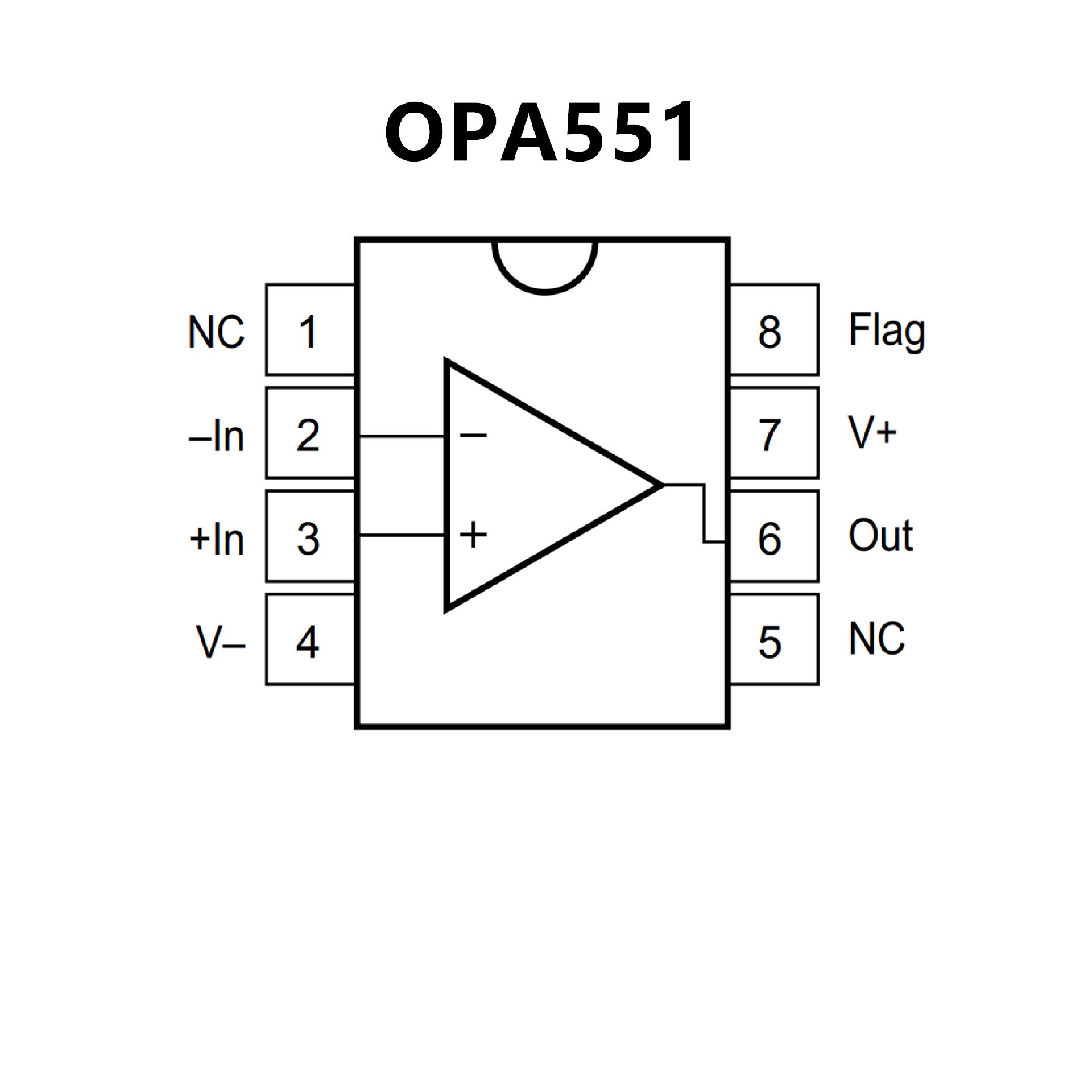

OPA551: 15 V/μs
OPA552: 24 V/μs
? Wide Bandwidth:
OPA551: 3 MHz
OPA552: 12 MHz
? Packages: PDIP-8, SOIC-8, or DDPAK/TO-263-7
