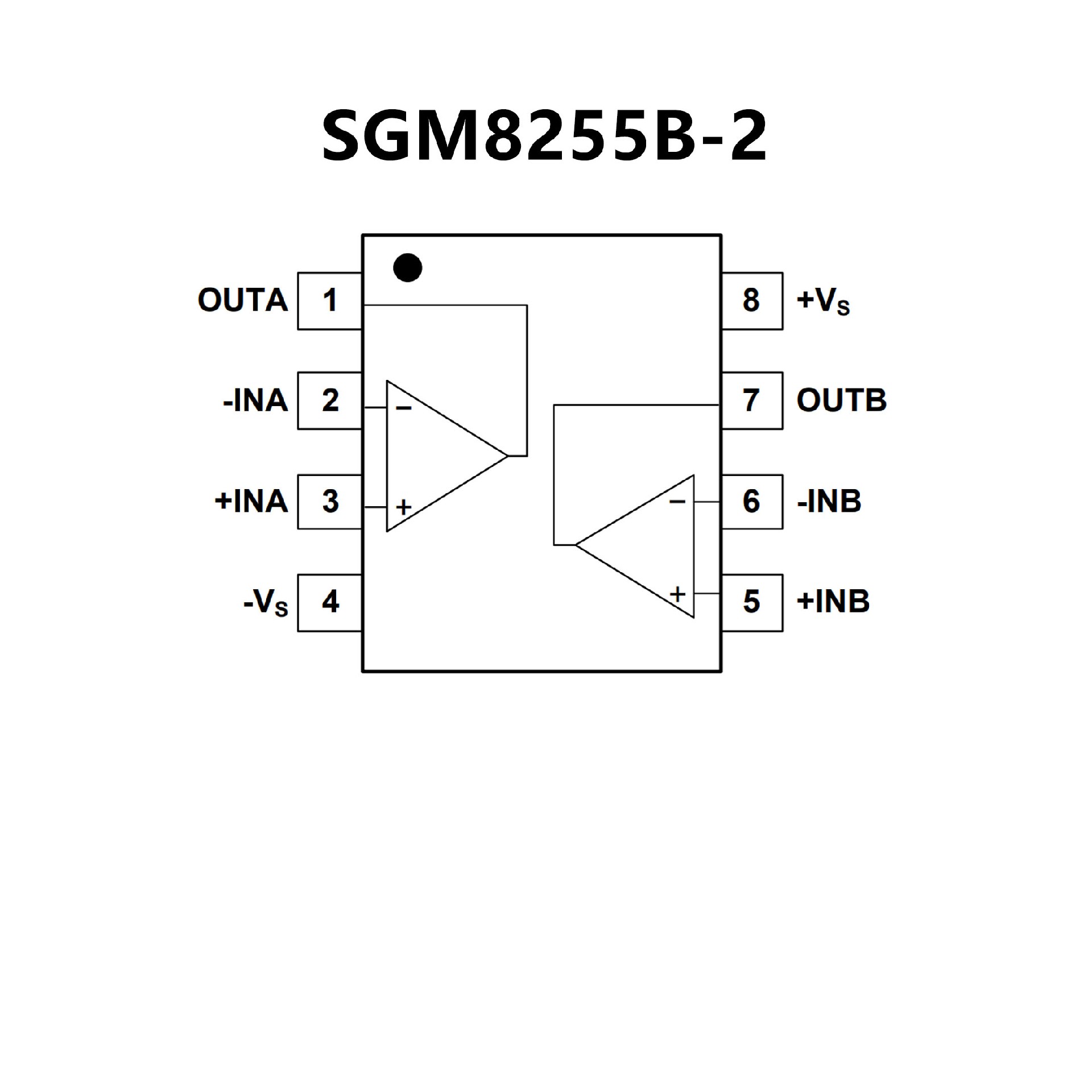

SGM8255B-2.pdf? Low Offset Voltage: 25μV (MAX)
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 135dB (TYP)
? 0.1Hz to 10Hz Noise: 0.2μVP-P
? Input Voltage Noise Density: 12nV/√Hz at 1kHz
? Gain-Bandwidth Product: 8.5MHz
? Overload Recovery Time: 0.7μs
? Rail-to-Rail Output Swing
? Supply Voltage Range: 4.5V to 36V
? Low Supply Current: 0.85mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

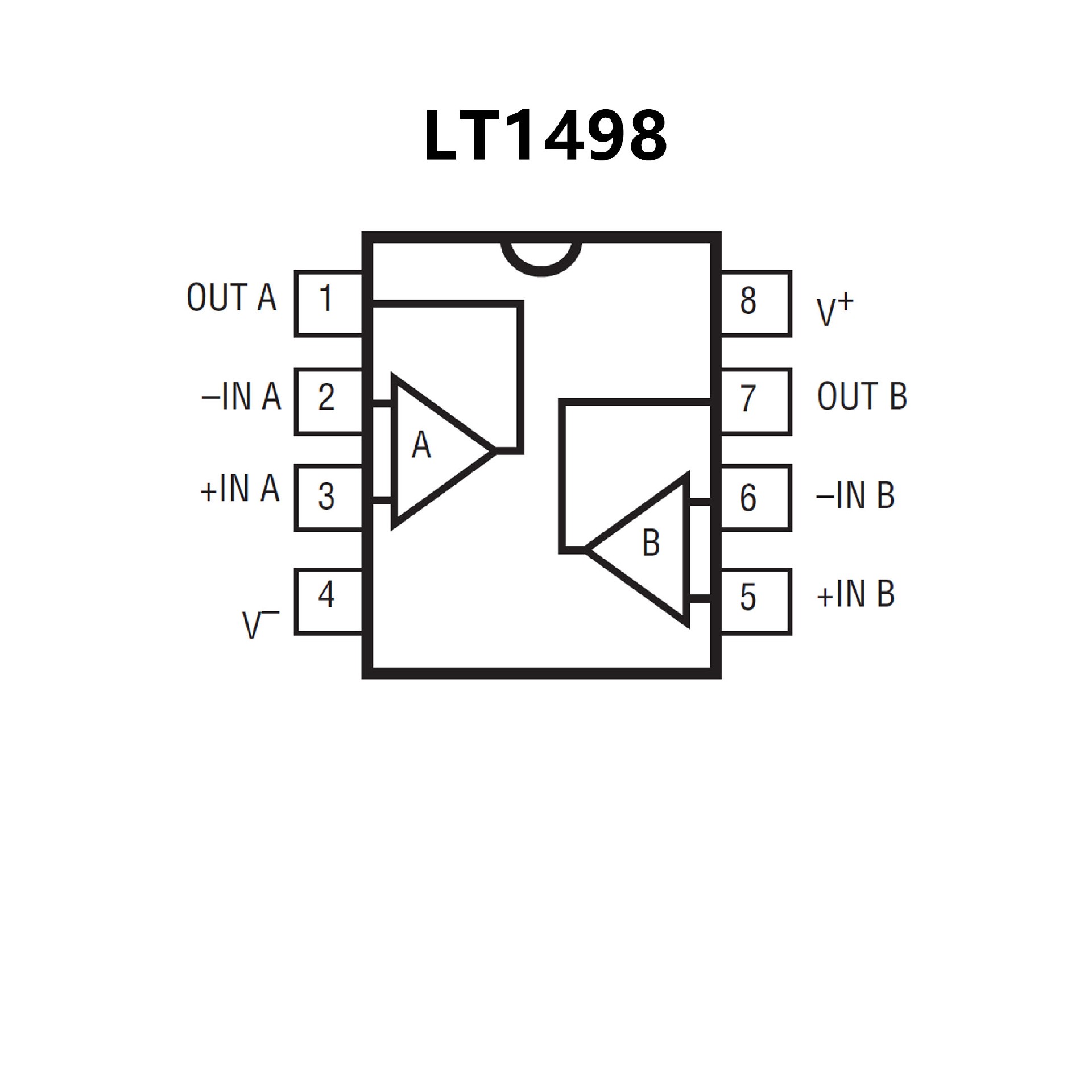

? Rail-to-Rail Input and Output
? 475μV Max VOS from V+ to V–
? Gain-Bandwidth Product: 10MHz
? Slew Rate: 6V/μs
? Low Supply Current per Amplifi er: 1.7mA
? Input Offset Current: 65nA Max
? Input Bias Current: 650nA Max
? Open-Loop Gain: 1000V/mV Min
? Low Input Noise Voltage: 12nV/√Hz Typ
? Wide Supply Range: 2.2V to ±15V
? Large Output Drive Current: 30mA
? Stable for Capacitive Loads Up to 10,000pF
? Dual in 8-Pin PDIP and SO Package
? Quad in Narrow 14-Pin SO
