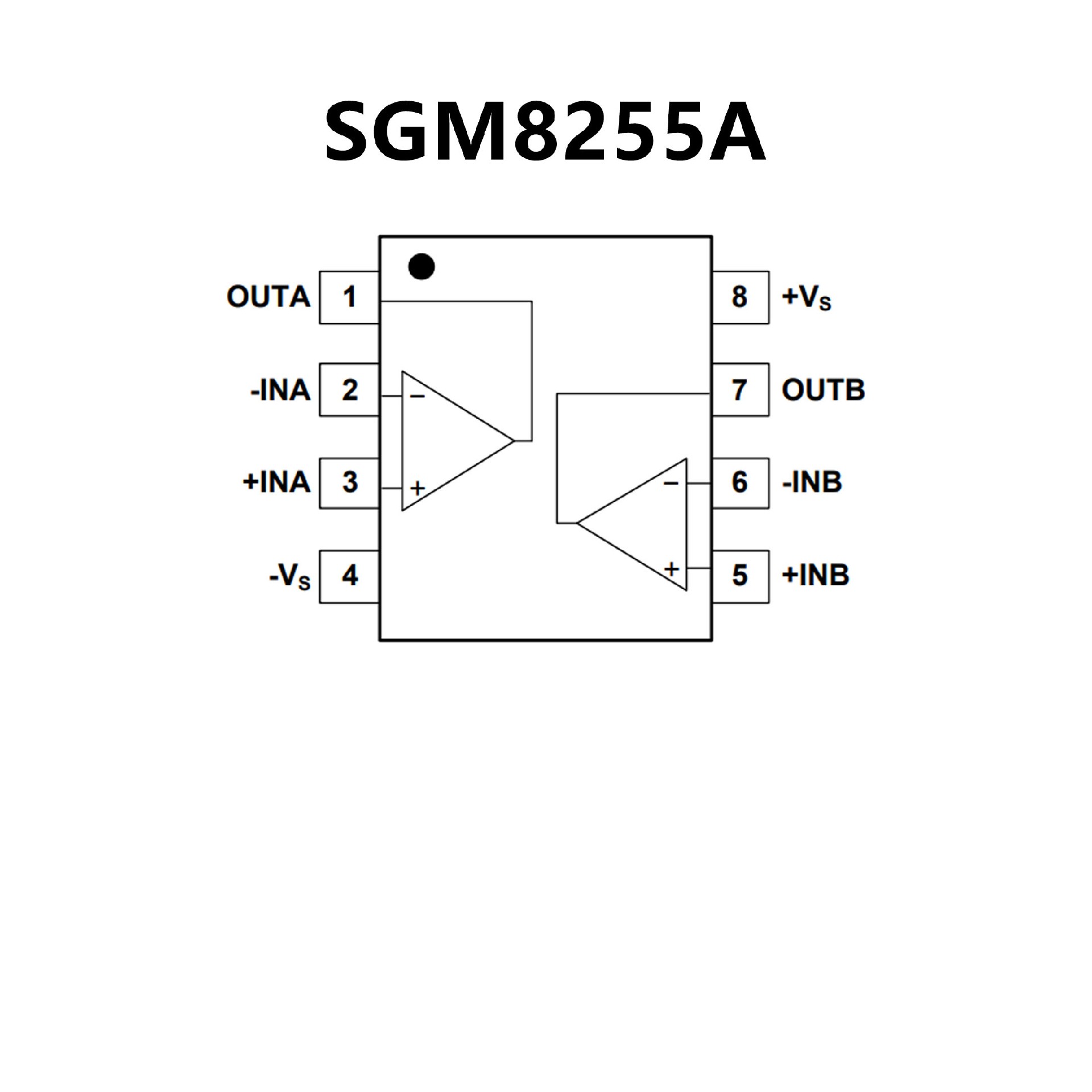

SGM8255A.pdf? Low Offset Voltage: 25μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 135dB (TYP)
? 0.1Hz to 10Hz Noise: 0.2μVP-P
? Input Voltage Noise Density: 12nV/ Hz at 1kHz
? Gain-Bandwidth Product: 8.5MHz
? Low Supply Current: 0.85mA/Amplifier (TYP)
? Overload Recovery Time: 0.7μs
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8255A-1 Available in Green
SOT-23-5,SOIC-8 and MSOP-8 Packages
SGM8255A-2 Available in Green
SOIC-8 andMSOP-8 Packages

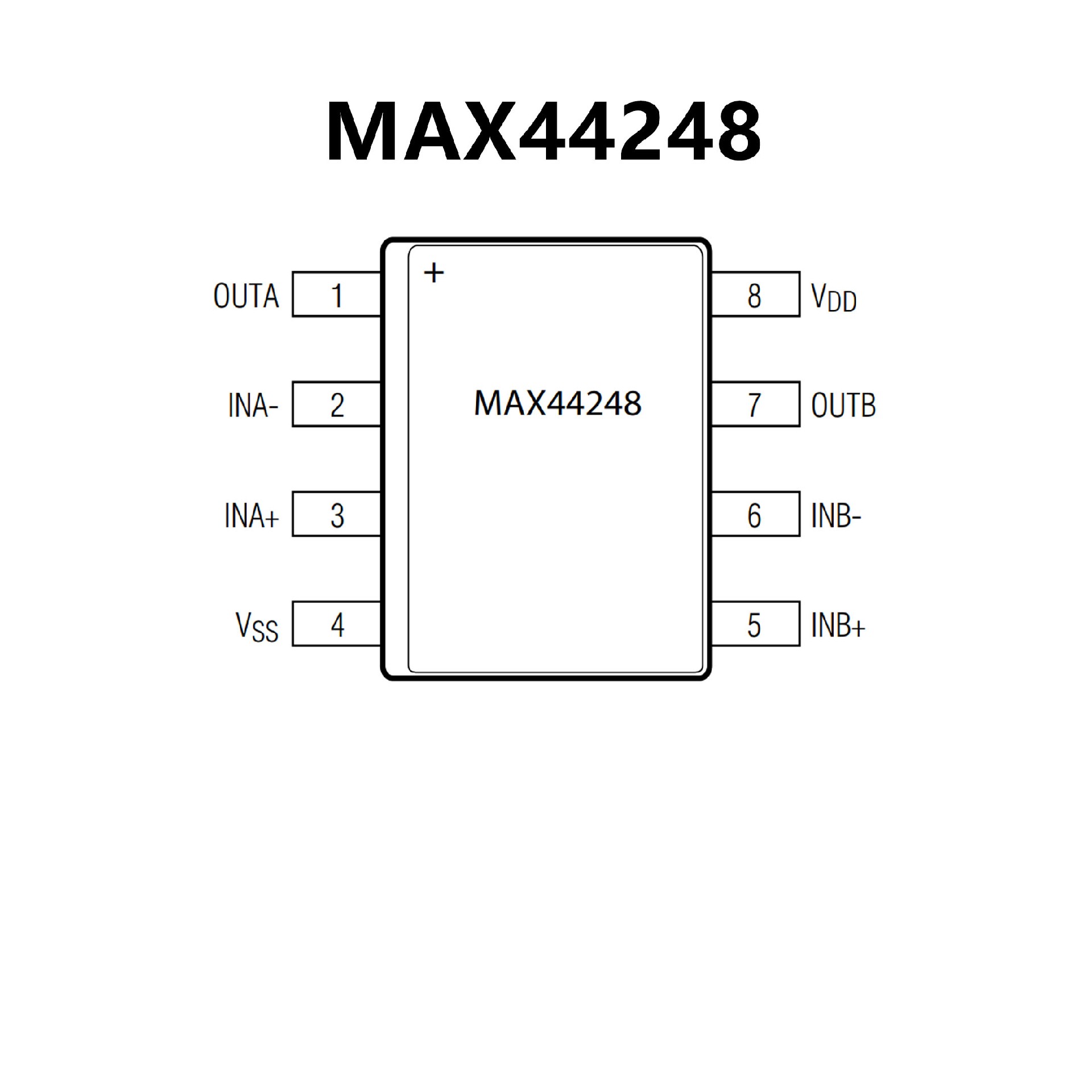

? Reduces Power for Sensitive Precision Applications
Low 90μA Quiescent Current per Amplifier
? Eliminates the Cost of Calibration with
IncreasedAccuracy with Maxim’s
Patented Autozero Circuitry
Very Low Input Voltage Offset 7.5μV (max)
Low 30nV/NC Offset Drift (max)
? Low Noise Ideal for Sensor
Interfaces andTransmitters
50nV/√Hz at 1kHz
0.5μVP-P
from 0.1Hz to 10Hz
? 1MHz Gain-Bandwidth Product
EMI Suppression Circuitry
? Rail-to-Rail Output
? Wide Supply for High-Voltage Front Ends
2.7V to 36V Supply Range
? μMAX, SO, SOT23, TSSOP Packages
