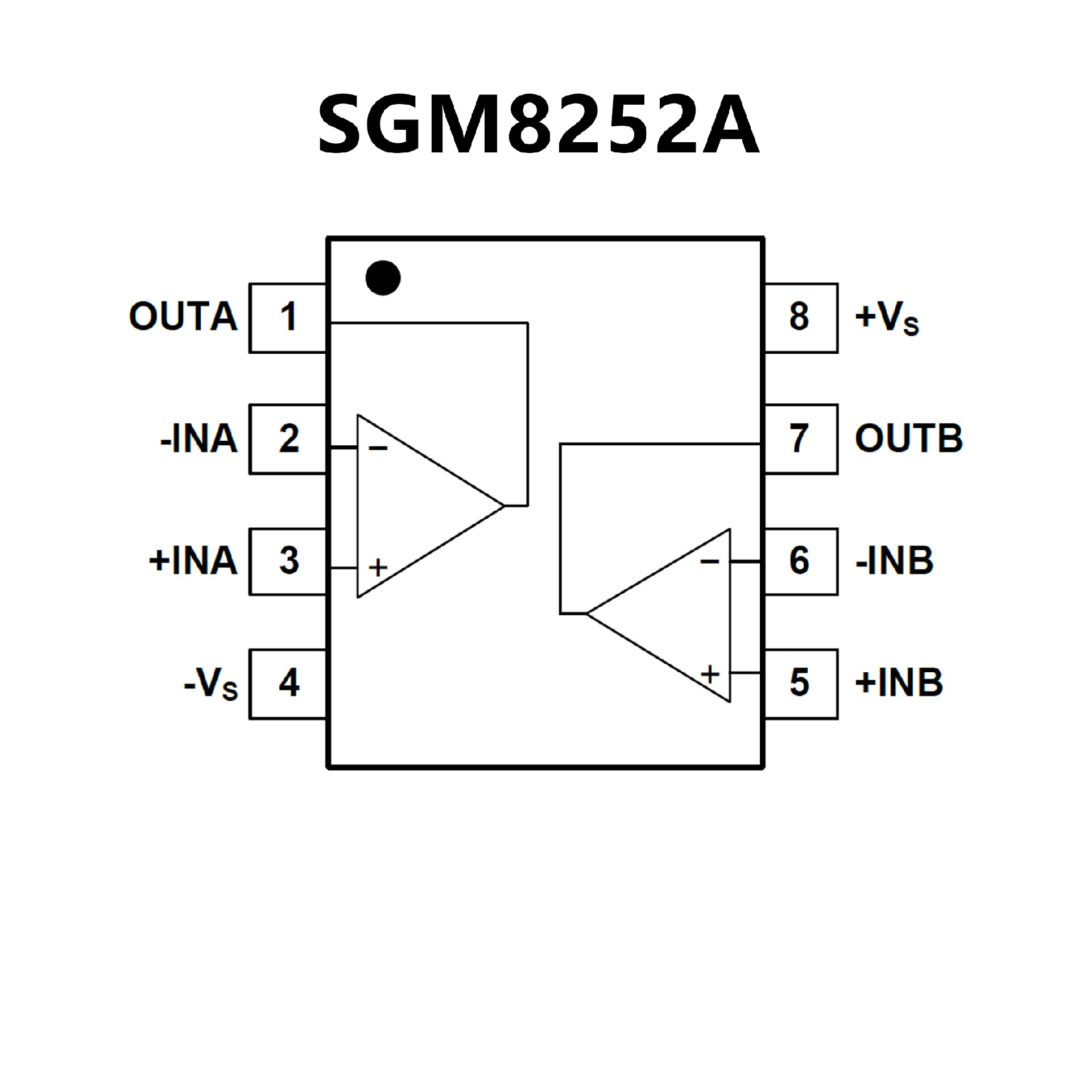

SGM8252AXS8G.pdf? Low Offset Voltage: 18μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 135dB (TYP)
? 0.1Hz to 10Hz Noise: 0.4μVP-P
? Input Voltage Noise Density: 20nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2.8MHz
? Low Supply Current: 450μA/Amplifier (TYP)
? Overload Recovery Time: 3μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

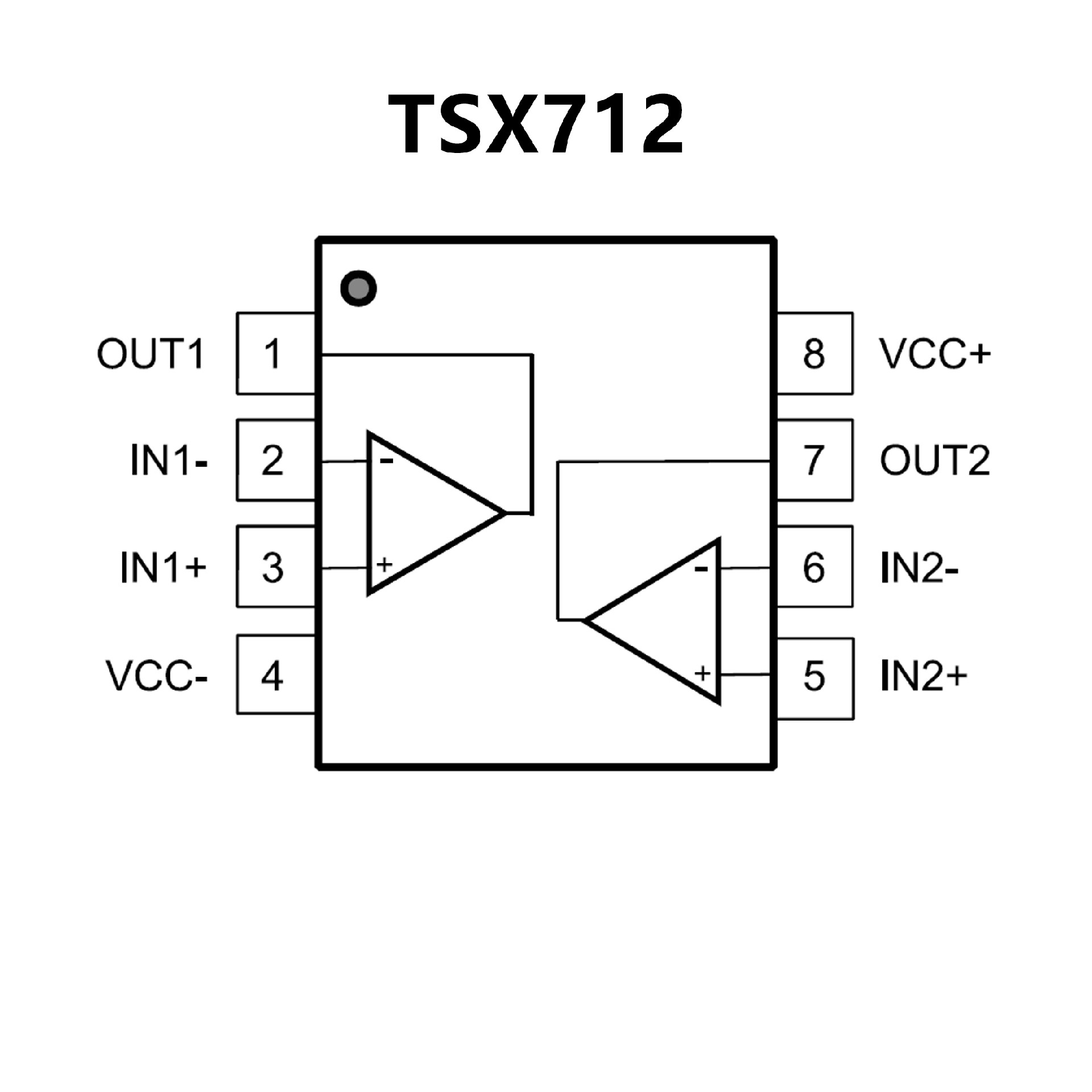

? Low input offset voltage: 200 μV max
? Rail-to-rail input and output
? Low current consumption: 800 μA max
? Gain bandwidth product: 2.7 MHz
? Low supply voltage: 2.7 - 16 V
? Unity gain stable
? Low input bias current: 50 pA max
? High ESD tolerance: 4 kV HBM
? Extended temp. range: -40 °C to 125 °C
? Automotive qualification
