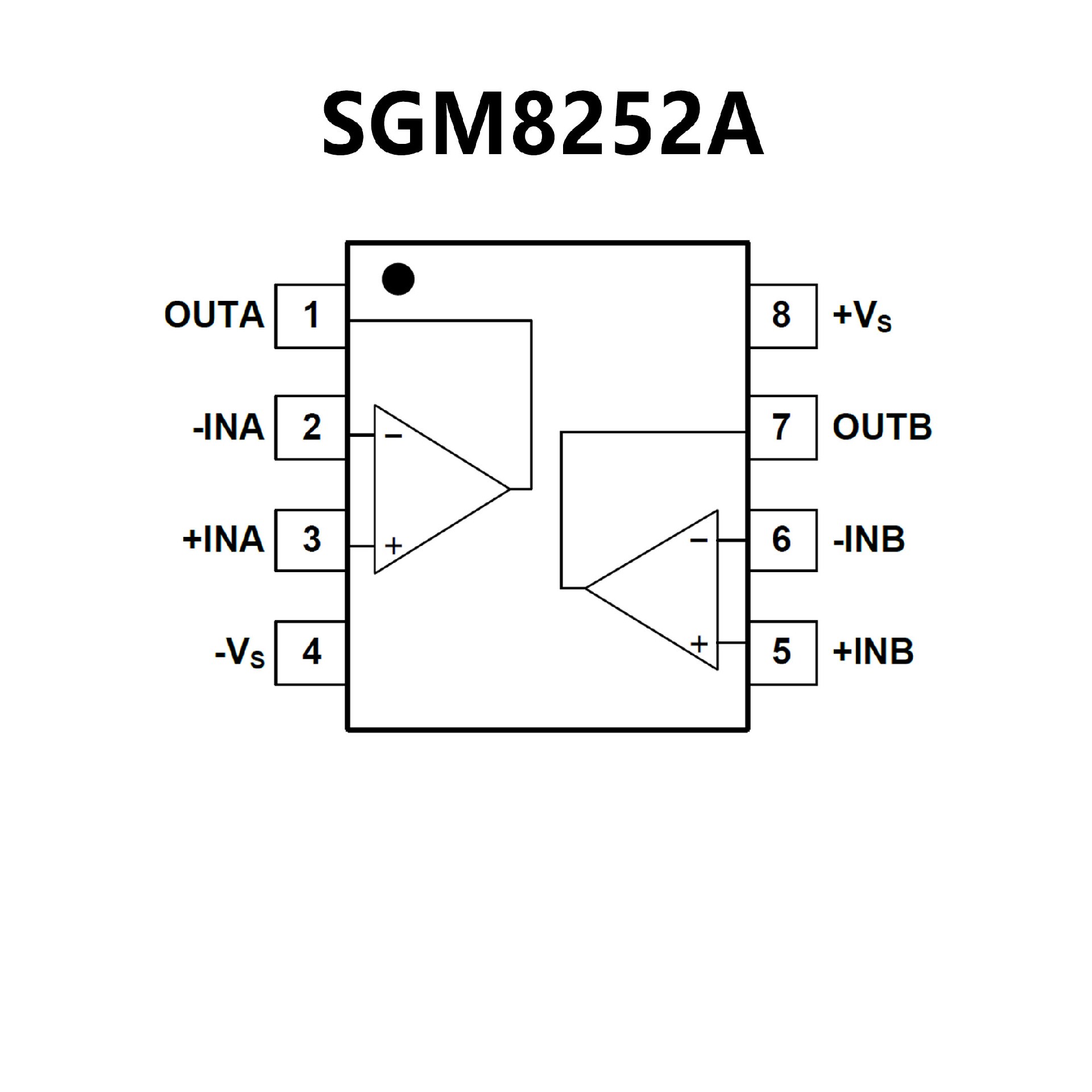

SGM8252A.pdf? Low Offset Voltage: 18μV (MAX)
? Rail-to-Rail Output Swing
? 4.5V to 36V Single Supply Operation
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 135dB (TYP)
? 0.1Hz to 10Hz Noise: 0.4μVP-P
? Input Voltage Noise Density: 20nV/Hz at 1kHz
? Gain-Bandwidth Product: 2.8MHz
? Low Supply Current: 450μA/Amplifier (TYP)
? Overload Recovery Time: 3μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

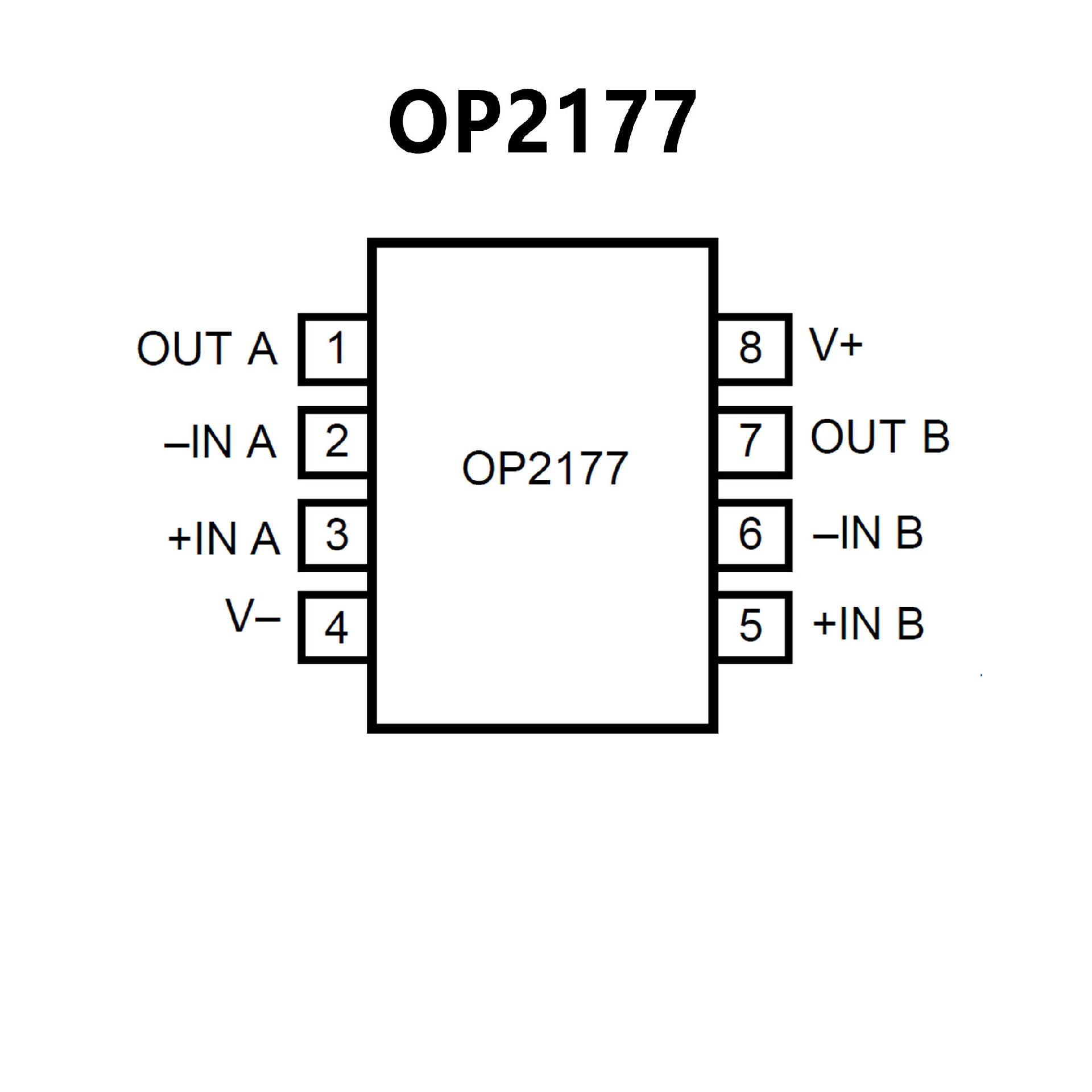

? Low offset voltage: 60 μV maximum Very low
offset voltage drift: 0.7 μV/°C maximum
? Low input bias current: 2 nA maximum
? Low noise: 8 nV/√Hz typical CMRR, PSRR,
and AVO > 120 dB minimum
? Low supply current: 400 μA per amplifier
? Dual supply operation: ±2.5 V to ±15 V
? Unity-gain stable
? No phase reversal
? Inputs internally protected beyond supply voltage
