8MHz,High Voltage,High Precision,Low Noise,Rail-to-Rail Output Operational Amplifier.
SGM8249-4XS14G
SGM8249-4XS14G.pdf
SGM8249-4XS14G.pdfFEATURES
? Low Offset Voltage: 2μV (TYP), 12μV (MAX)
? Rail-to-Rail Output Swing
? Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
? Open-Loop Voltage Gain: 150dB (TYP)
? PSRR: 150dB (TYP)
? CMRR: 140dB (TYP)
? Input Voltage Noise Density: 12nV/Hz at 1kHz
? Gain-Bandwidth Product: 8MHz
? Low Supply Current: 3.2mA (TYP)
? Overload Recovery Time: 0.7μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages

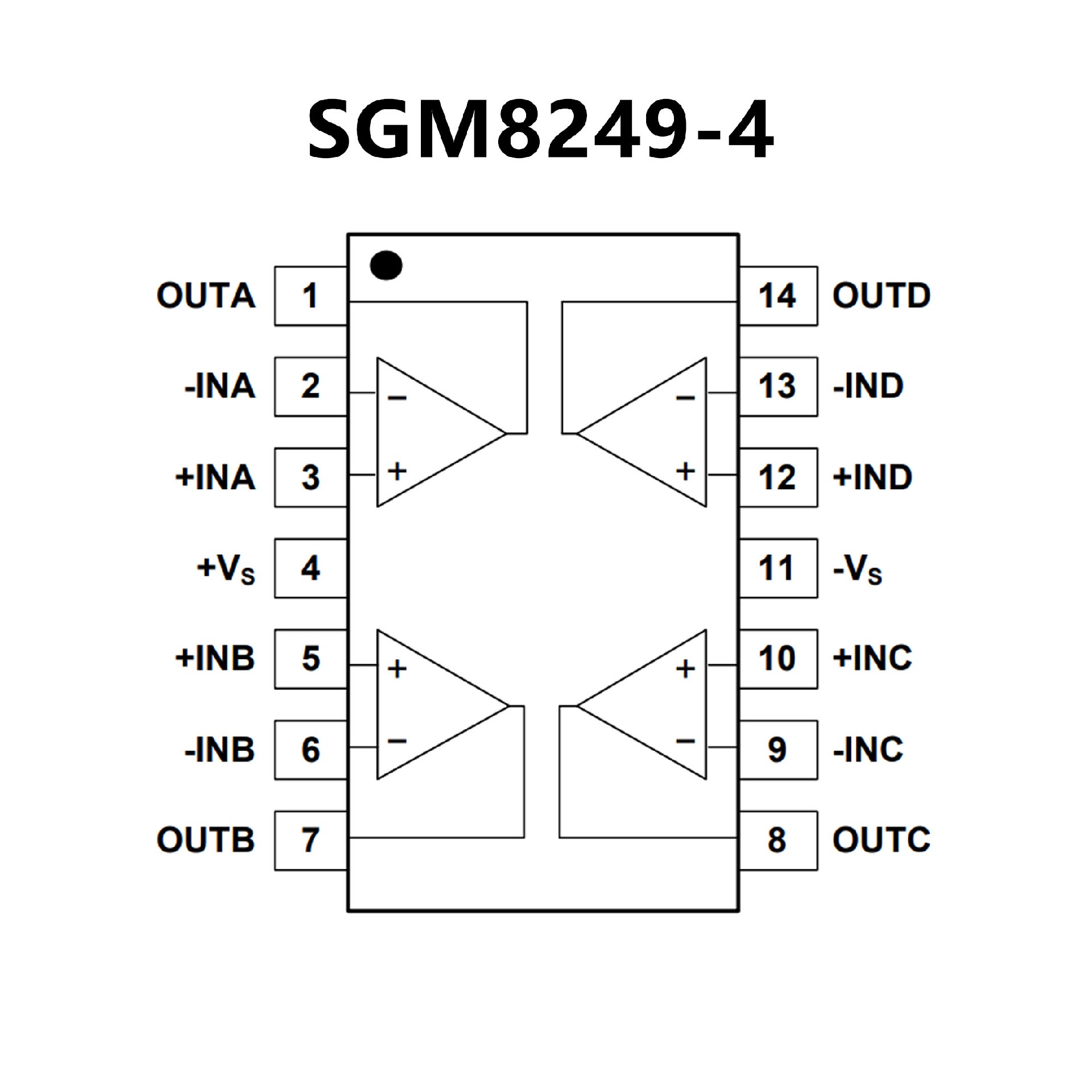

PIN CONFIGUTION
優勢替代
FEATURES
? Low Offset Voltage: ±5 μV
? Low Offset Voltage Drift: ±0.2 μV/°C
? Low Noise: 5.5 nV/√Hz at 1 kHz
? High Common-Mode Rejection: 140 dB
? Low Bias Current: ±5 pA
? Rail-to-Rail Input and Output
? Wide Bandwidth: 10 MHz GBW
? High Slew Rate: 20 V/μs
? Low Quiescent Current: 1 mA per Amplifier
? Wide Supply: ±2.25 V to ±18 V, +4.5 V to +36 V
? EMI/RFI Filtered Inputs
? Differential Input Voltage Range to Supply Rail
? High Capacitive Load Drive Capability: 1 nF
? Industry Standard Packages:
Single in SOIC-8, SOT-5, and VSSOP-8
Dual in SOIC-8 and VSSOP-8
Quad in SOIC-14 and TSSOP-14

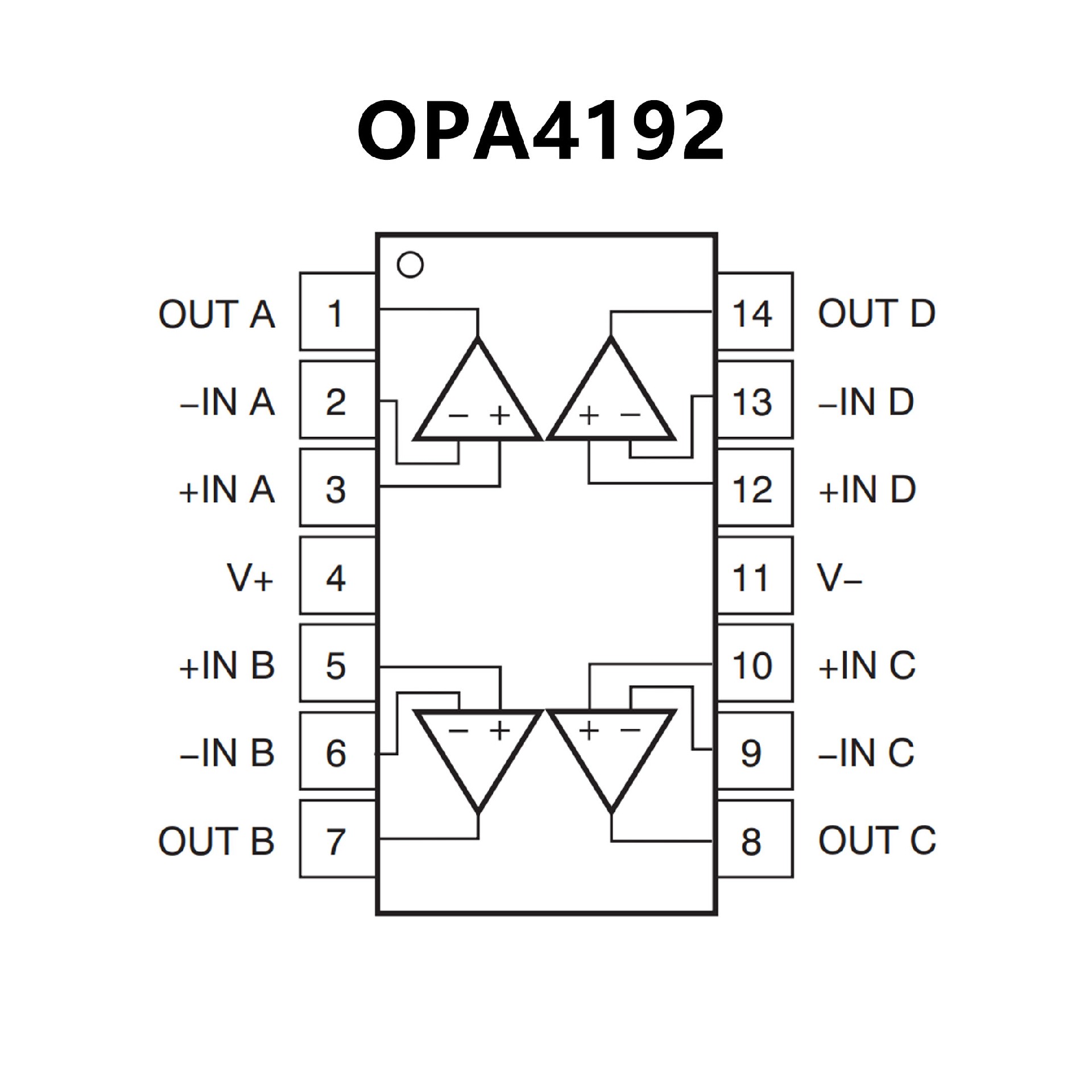

PIN CONFIGUTION
