SGM823-SXN5G.pdf? Ultra-Low Supply Current: < 1μA (TYP)
? Precision Supply-Voltage Monitor
4.63V for SGM823-L
3.08V for SGM823-T
2.93V for SGM823-S
2.63V for SGM823-R
? Guaranteed nRESET Valid at VCC = 1V
? Push-Pull nRESET Output
? Reset Pulse Width: 200ms (TYP)
? Debounced TTL/CMOS-Compatible
? Manual Reset Input
? Watchdog Timer with 1.6s (TYP) Timeout
? Fully Specified over Temperature
? Power-Supply Transient Immunity
? Without External Components
? -40℃ to +125℃ Operating Temperature Range

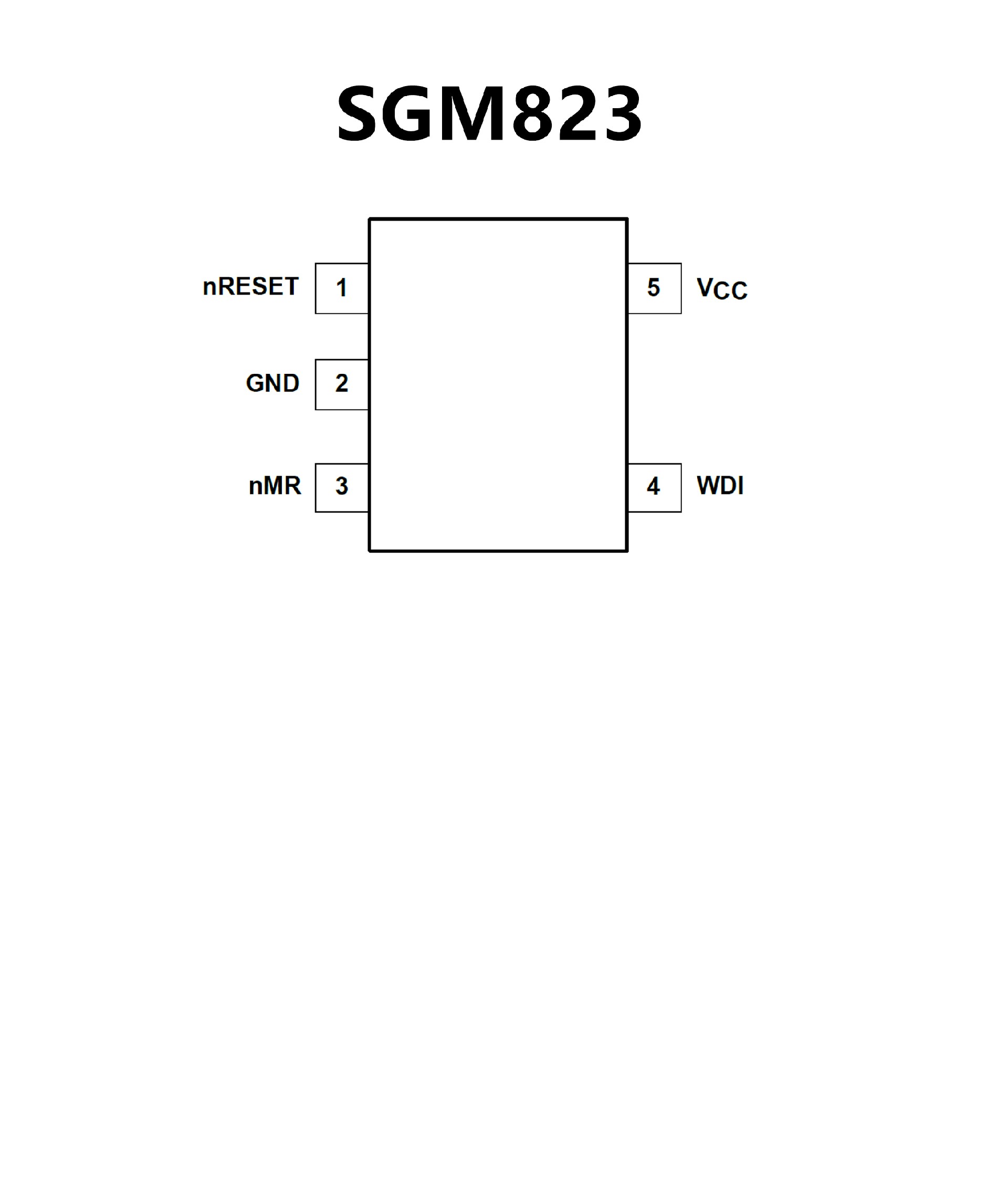

? Available in a Green SOT-23-5 Package
? Precision VCC monitoring of 5, 3.3, 3, or 2.5 V
power supplies
? RST outputs (active low, push-pull or open
drain)
? RST outputs (active high, push-pull)
? Reset pulse width of 1.4 ms, 200 ms and
240 ms (typ.)
? Watchdog timeout period of 1.6 s (typ.)
? Manual reset input (MR)
? Low supply current - 3 μA (typ.)
? Guaranteed RST (RST) assertion down to
VCC = 1.0 V
? Operating temperature: –40 to +85 °C
(industrial grade)
? RoHS compliance
Lead-free components are compliant with the
RoHS directive
