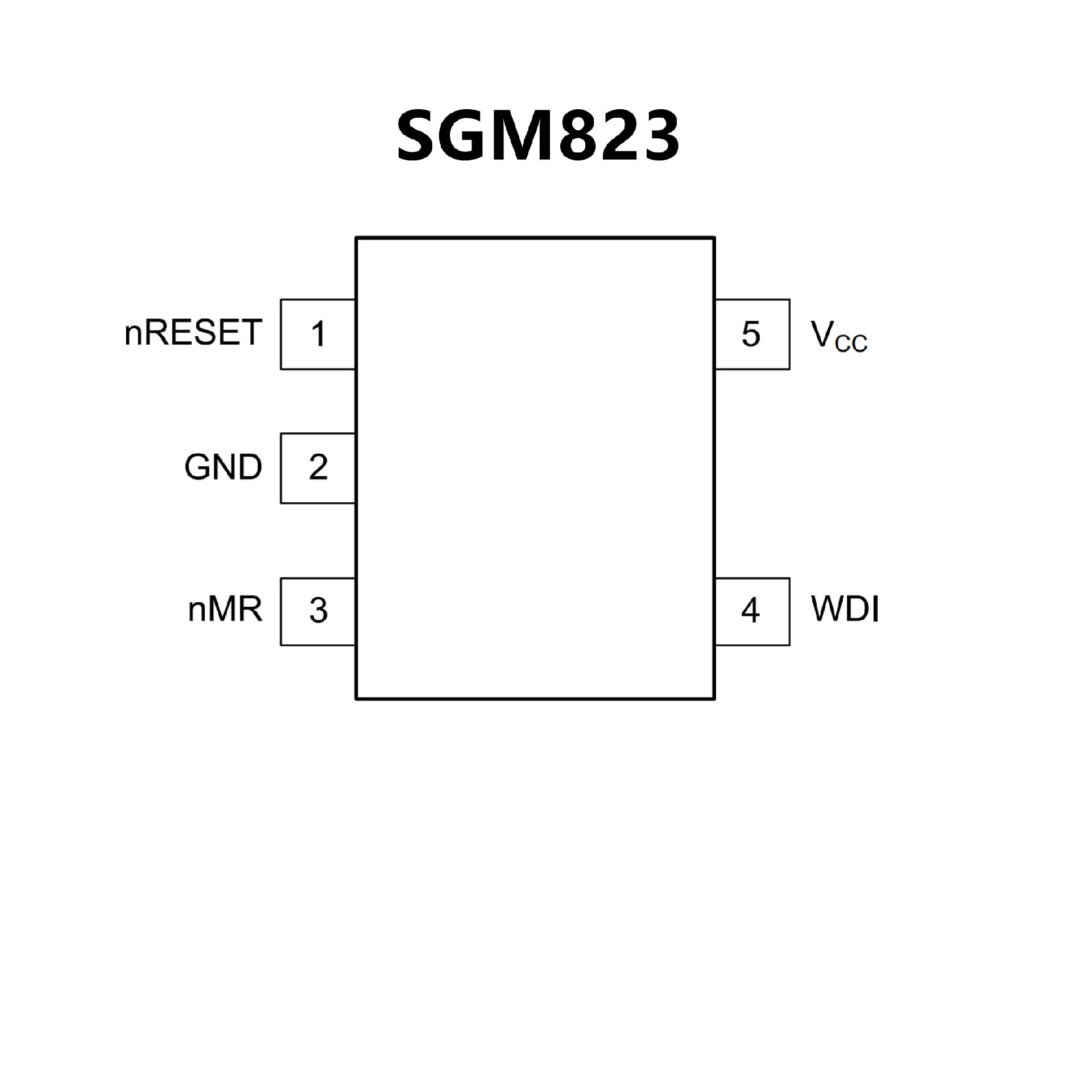

SGM823.pdf? Ultra-Low Supply Current: < 1μA (TYP)
? Precision Supply-Voltage Monitor 4.63V for
SGM823-L3.08V for SGM823-T 2.93V for
SGM823-S 2.63V for SGM823-R
? Guaranteed nRESET Valid at VCC = 1V
? Fully Specified over Temperature
? 200ms Reset Pulse Width
? Power-Supply Transient Immunity
? Watchdog Timer with 1.6s Timeout
? Debounced TTL/CMOS-Compatible
? Manual Reset Input
? No External Components
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5 Package

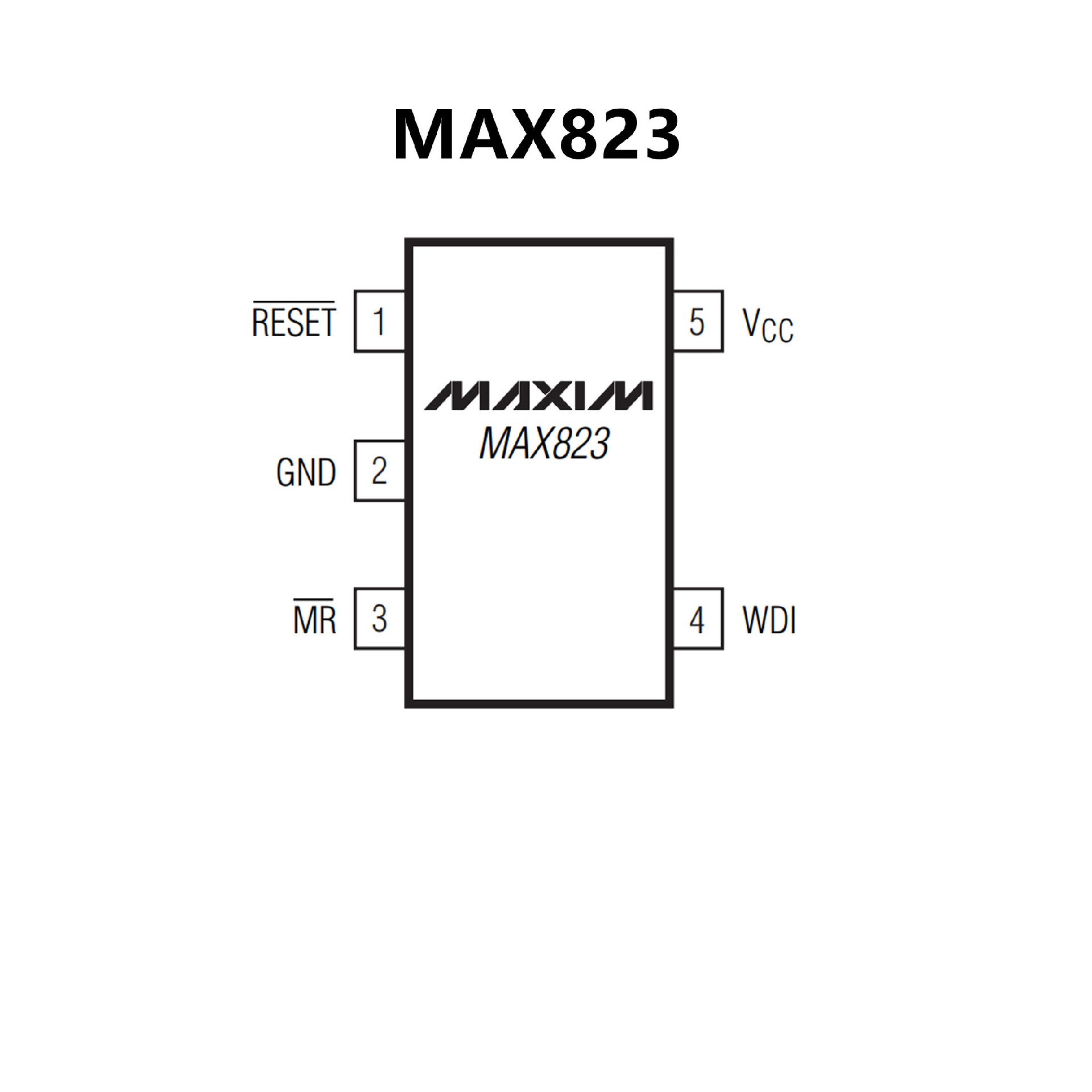

? Precision Monitoring of +2.5V, +3V,
+3.3V, and
+5V Power Supplies
? Operating Current: 6μA (MAX823L/M) (SC70)
2μA (MAX825T/S/R/Z/Y) (SC70)
? Fully Specified Over Temperature
? 140ms min Power-On Reset
? Guaranteed RESET Valid to VCC = 1V
? Power-Supply Transient Immunity
? Watchdog Timer with 1.6s Timeout(MAX823/MAX824)
? Manual Reset Input (MAX823/MAX825)
? No External Components
