Low Noise, High Voltage Operational Amplifiers,SGM8212 Replace IML2122CL.
SGM8212
SGM8212.pdf
SGM8212.pdfFEATURES
? Support Single or Dual Power
Supplies:2.7V to 36V or ±1.35V to ±18V
? Low Noise: 15nV/√Hz at 1kHz
? Input Offset Voltage: 1.8mV (MAX)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 2.5MHz
? Unity-Gain Stable
? Phase Margin: 60° for G = 1 and CL = 10pF
? Low Quiescent Current: 475μA/Amplifier
? High CMRR: 98dB (TYP)
? Low Input Bias Current: 5pA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8212-1 Available in Green
SOT-553-5, SOT-23-5and SOIC-8 Packages
SGM8212-2 Available in Green
SOIC-8 andTDFN-3×3-8L Packages

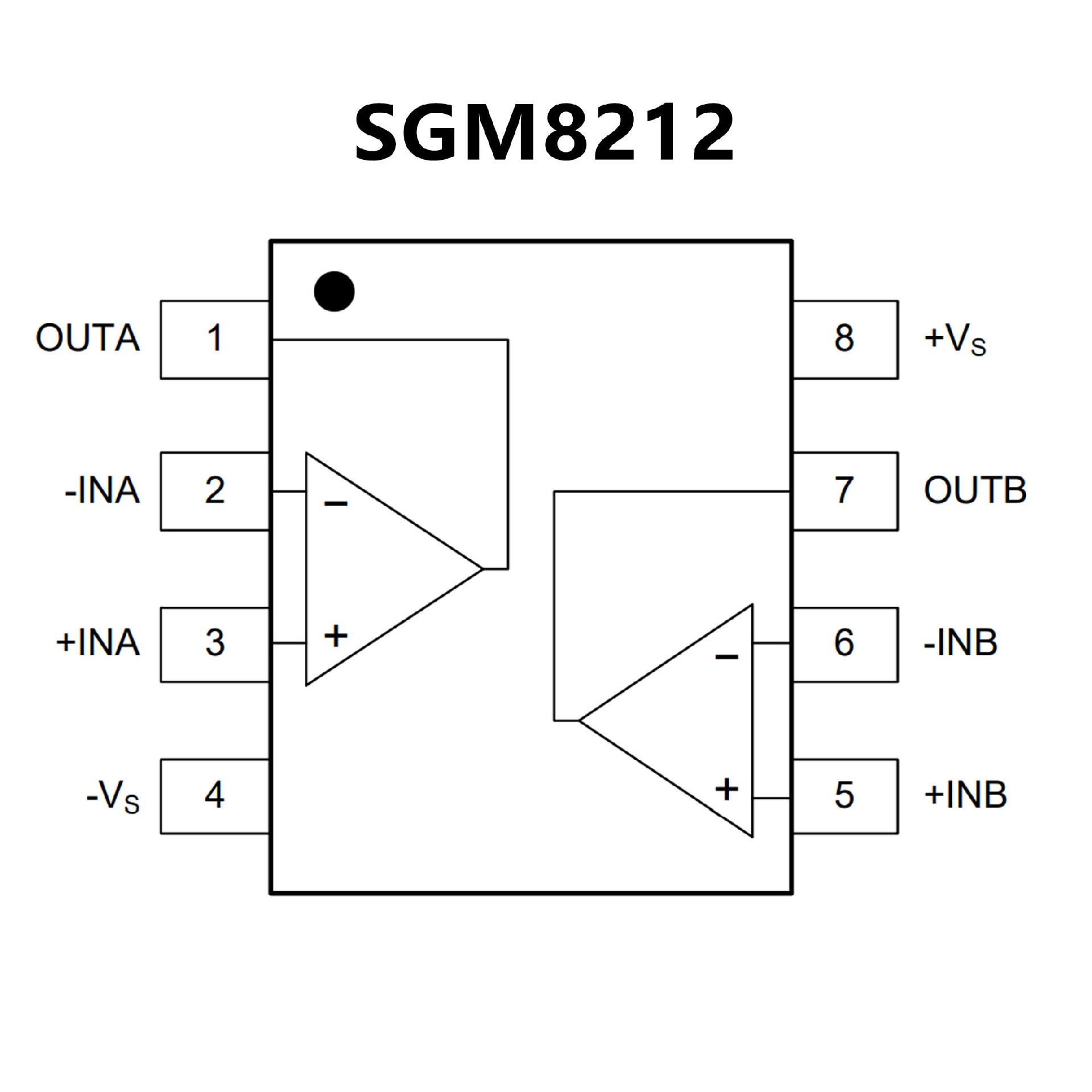

PIN CONFIGUTION
