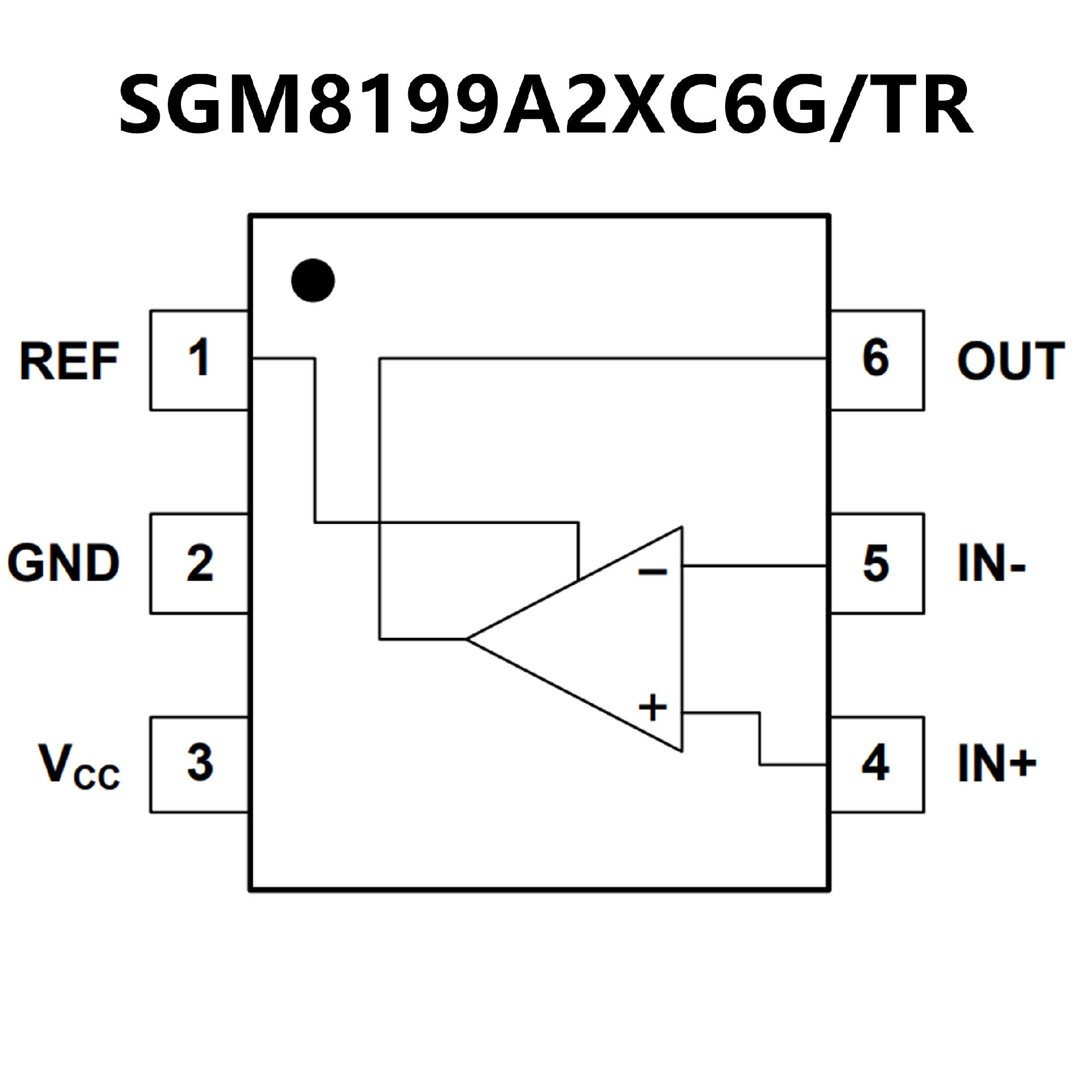

SGM8199A2XC6G.pdf? Wide Common Mode Range: -0.1V to 26V
? Input Offset Voltage
SGM8199A0: 600μV (VCM = 12V, MAX)
SGM8199A1: 350μV (VCM = 12V, MAX)
SGM8199A2: 250μV (VCM = 12V, MAX)
(Enables Shunt Drops of 10mV Full-Scale)
? Gain Error (Maximum Over Temperature)
SGM8199A0: ±0.7
SGM8199A1: ±0.4%
SGM8199A2: ±0.4%
? Choice of Gains:
SGM8199A0 Gain: 20V/V
SGM8199A1 Gain: 50V/V
SGM8199A2 Gain: 100V/V
? Quiescent Current: 85μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SC70-6 Package
? Wide common-mode range: -0.3V to 26V
? Offset voltage: 130μV (Max)
(Enable shunt drops of 10mV full-scale)
? Accuracy
±1.5% Gain error (Max over temperature)
0.5μV/°C Offset drift (Typ)
10ppm/°C Gain drift (Max)
? Choice of Gains:

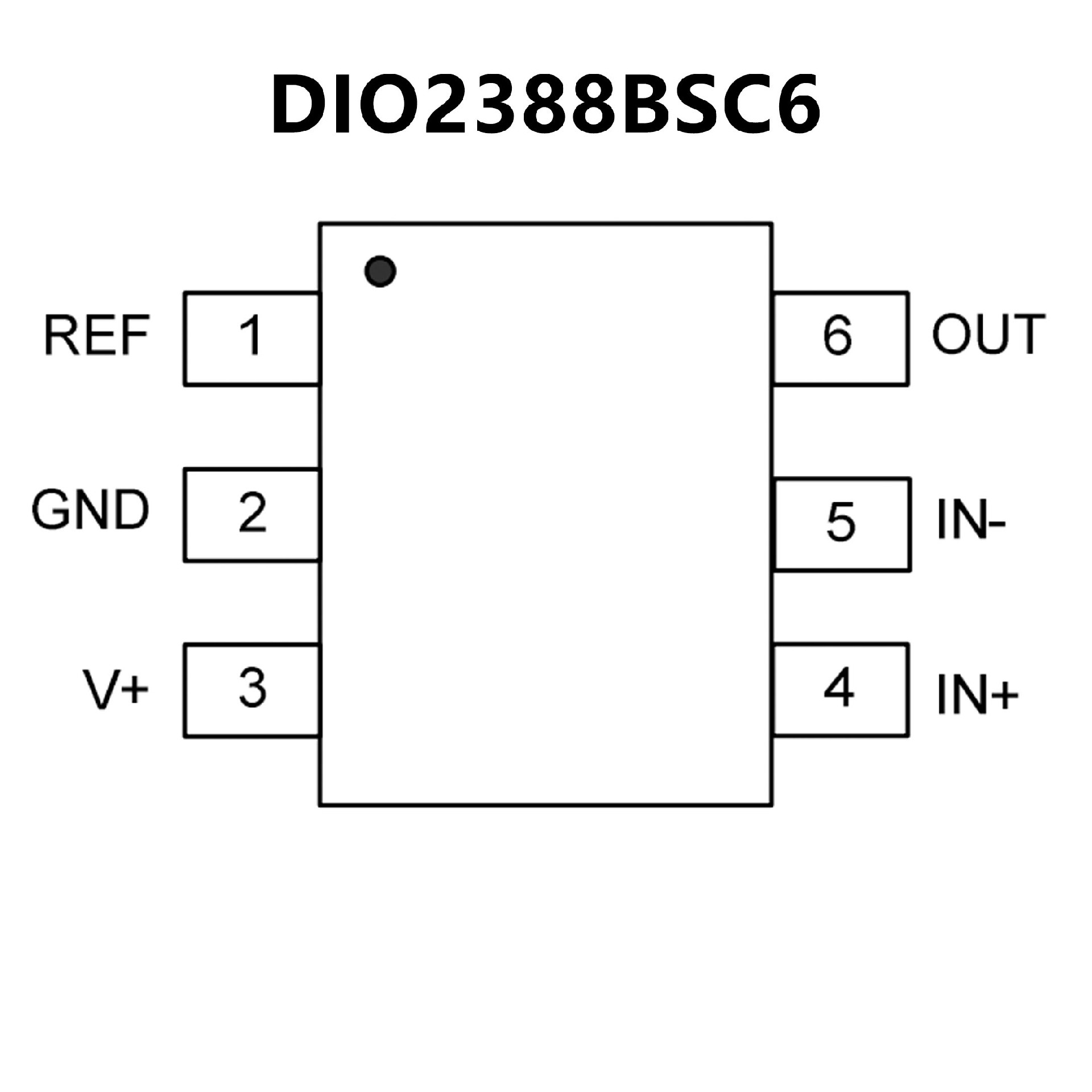

DIO2388A: 50V/V
DIO2388B: 100V/V
? Quiescent current: 100μA (Max)
? Packages: SC70-6, thin DQFN-10
