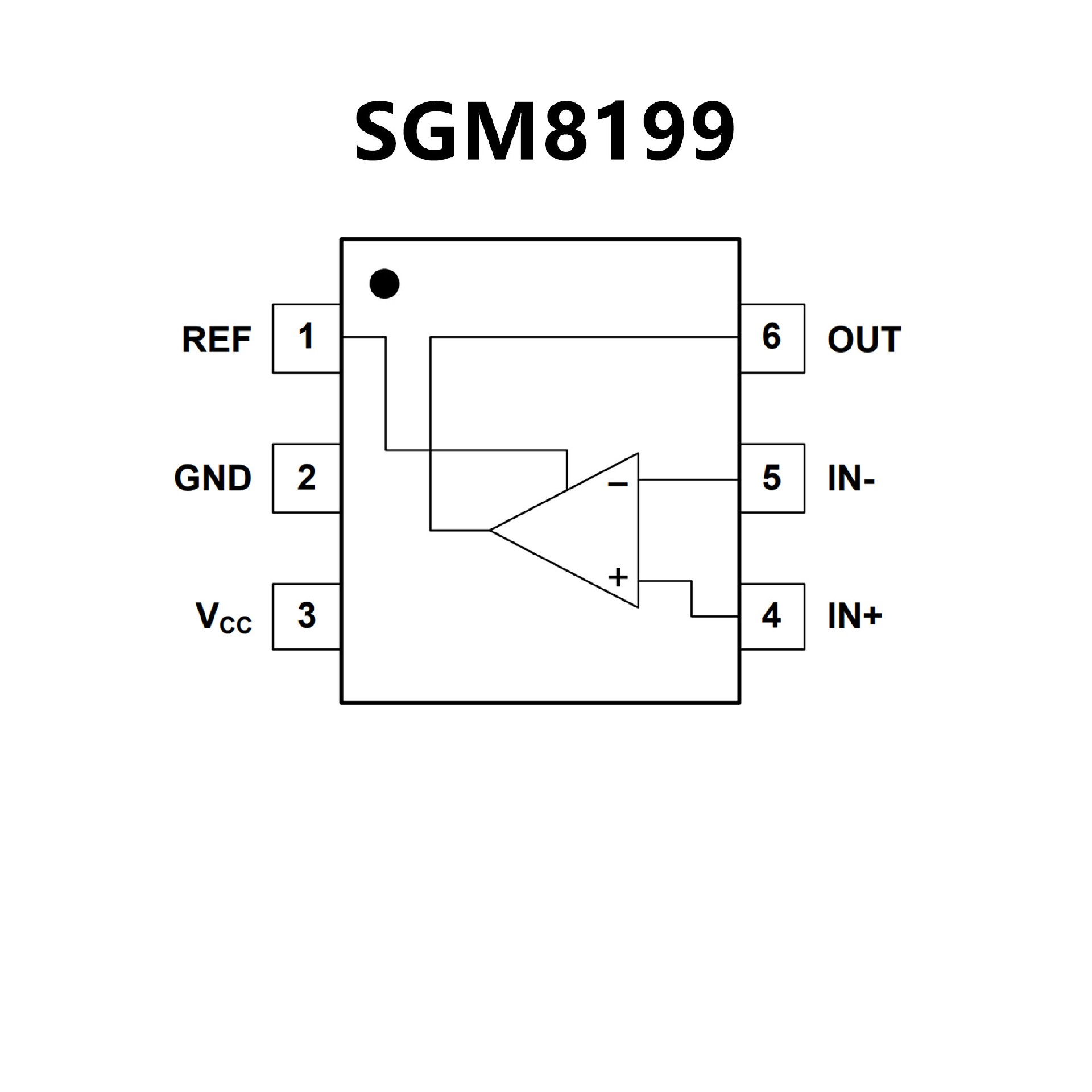

SGM8199.pdf? Wide Common Mode Range: -0.1V to 26V
? Input Offset Voltage
SGM8199A0: 600μV (VCM = 12V, MAX)
SGM8199A1: 350μV (VCM = 12V, MAX)
SGM8199A2: 250μV (VCM = 12V, MAX)
(Enables Shunt Drops of 10mV Full-Scale)
? Gain Error (Maximum Over Temperature)
SGM8199A0: ±0.7%
SGM8199A1: ±0.4%
SGM8199A2: ±0.4%
? Choice of Gains:
SGM8199A0 Gain: 20V/V
SGM8199A1 Gain: 50V/V
SGM8199A2 Gain: 100V/V
? Quiescent Current: 85μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SC70-6 Package

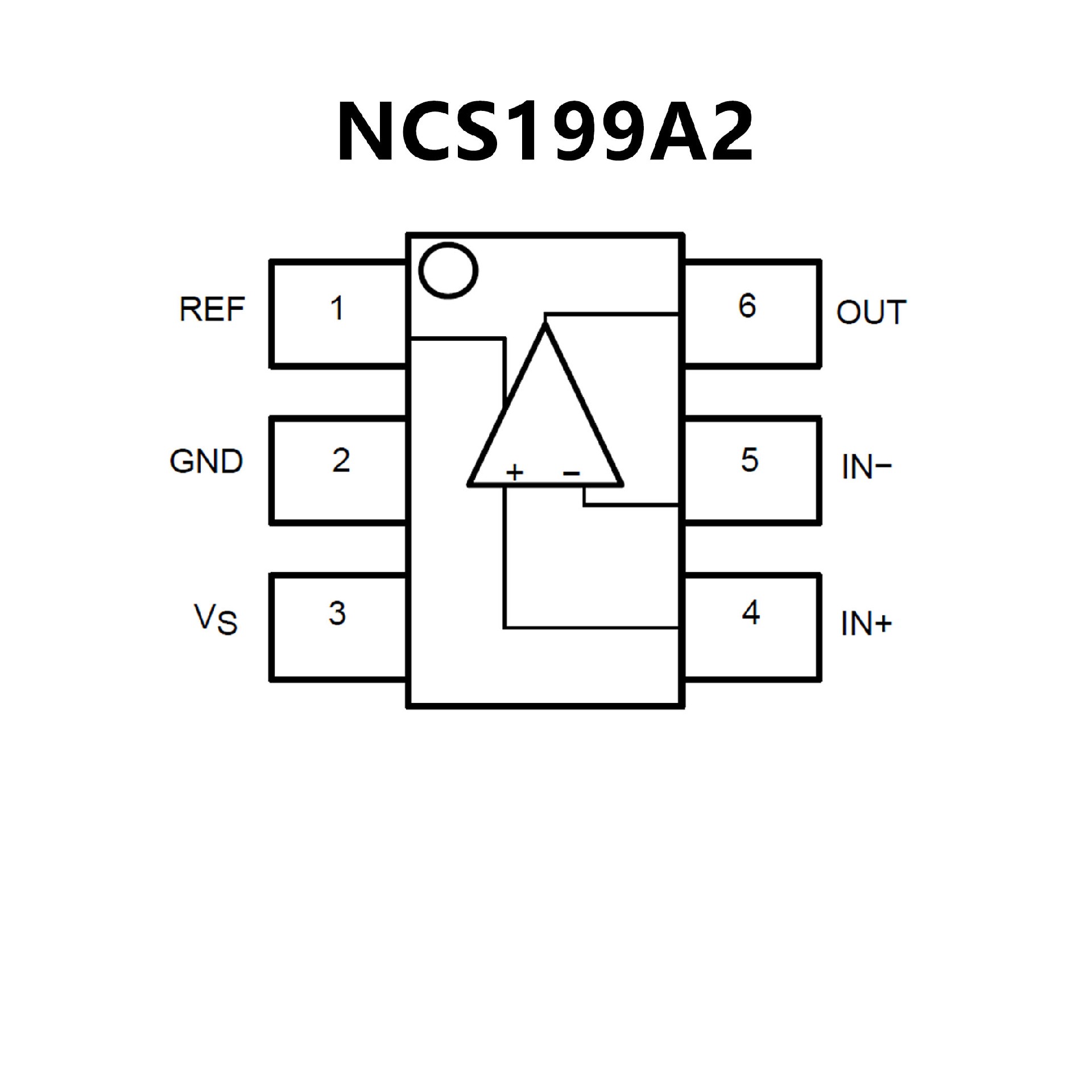

? Wide Common?Mode Input Range ?0.3 V to 26 V
? Supply Voltage Range from 2.7 V to 26 V
? Low Offset Voltage ±150μV Max
? Low Offset Drift (0.5μV/°C)
? Low Gain Error (max 1.5%)
? Rail?to?rail Input and Output Capability
? Low Current Consumption (typ 65μA, 100μA max)
? NCV Prefix for Automotive and Other Applications
Requiring Unique Site and Control Change
Requirements; AEC?Q100 Qualified and PPAP Capable
? These are Pb?free Devices
