Tiny Package, Nano-Power,Precision Current-Sense Amplifier, SGM8188 Replace INA216.
SGM8188
SGM8188.pdf
SGM8188.pdfFEATURES
? Ultra-Low Quiescent Current: 1.2μA (MAX)
? Input Common Mode Range: 1.6V to 28V
? Low Input Offset Voltage: 60μV (MAX)
? Choice of Gains:
SGM8188A0 Gain: 25V/V
SGM8188A1 Gain: 50V/V
SGM8188A2 Gain: 100V/V
SGM8188A3 Gain: 200V/V
? Low Gain Error: ±0.4% (MAX)
? Voltage Output
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green WLCSP-1×1-4B-A Package

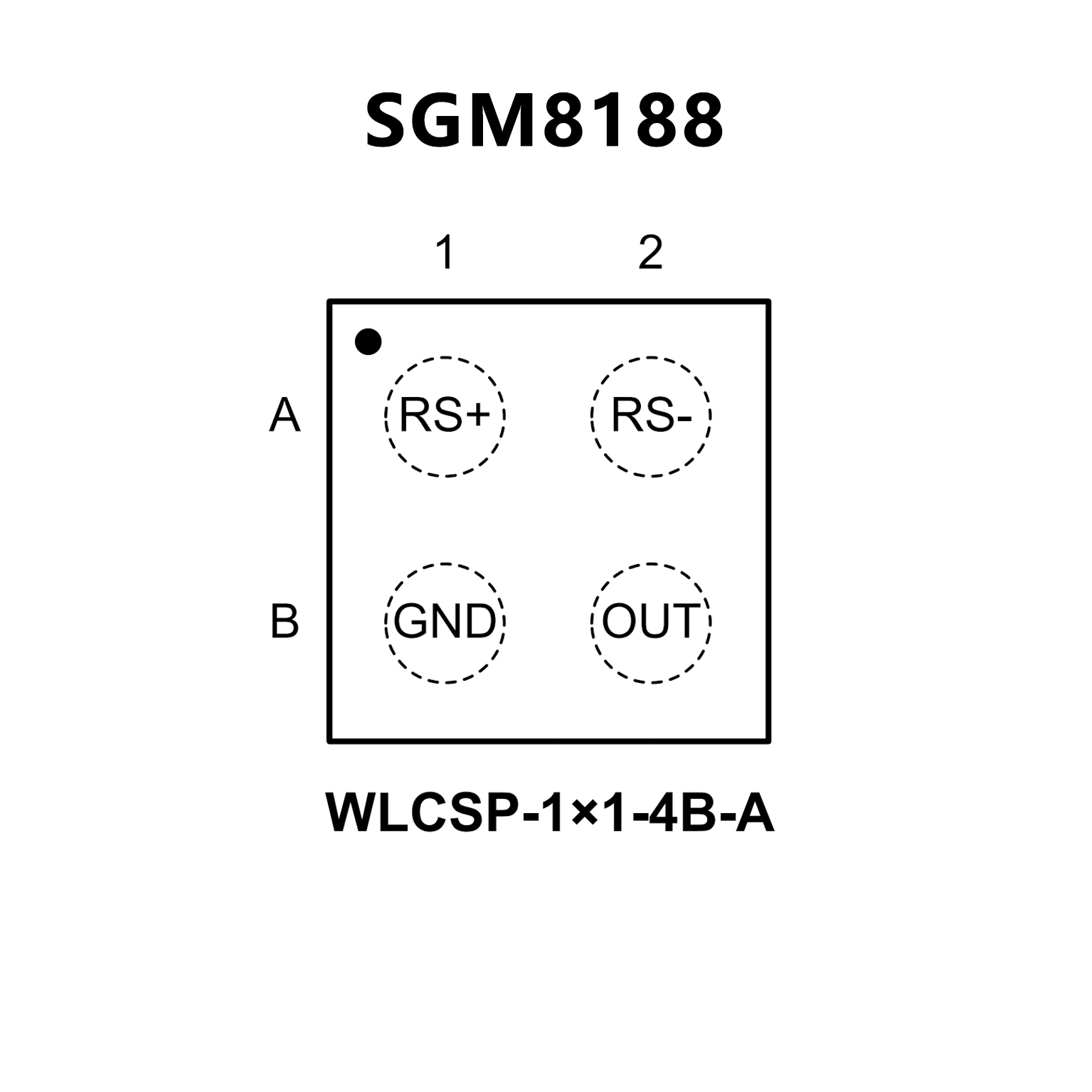

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? CHIP-SCALE PACKAGE
? COMMON-MODE RANGE: +1.8V to +5.5V
? OFFSET VOLTAGE: +30μV
? GAIN ERROR: +0.2% MAX
? CHOICE OF GAINS:
INA216A1:25VNV
INA216A2:50V/V
INA216A3:100V/V
INA216A4:200V/V
? QUIESCENT CURRENT: 13μA
? BUFFERED VOLTAGE OUTPUT: No Additional
Op Amp Needed

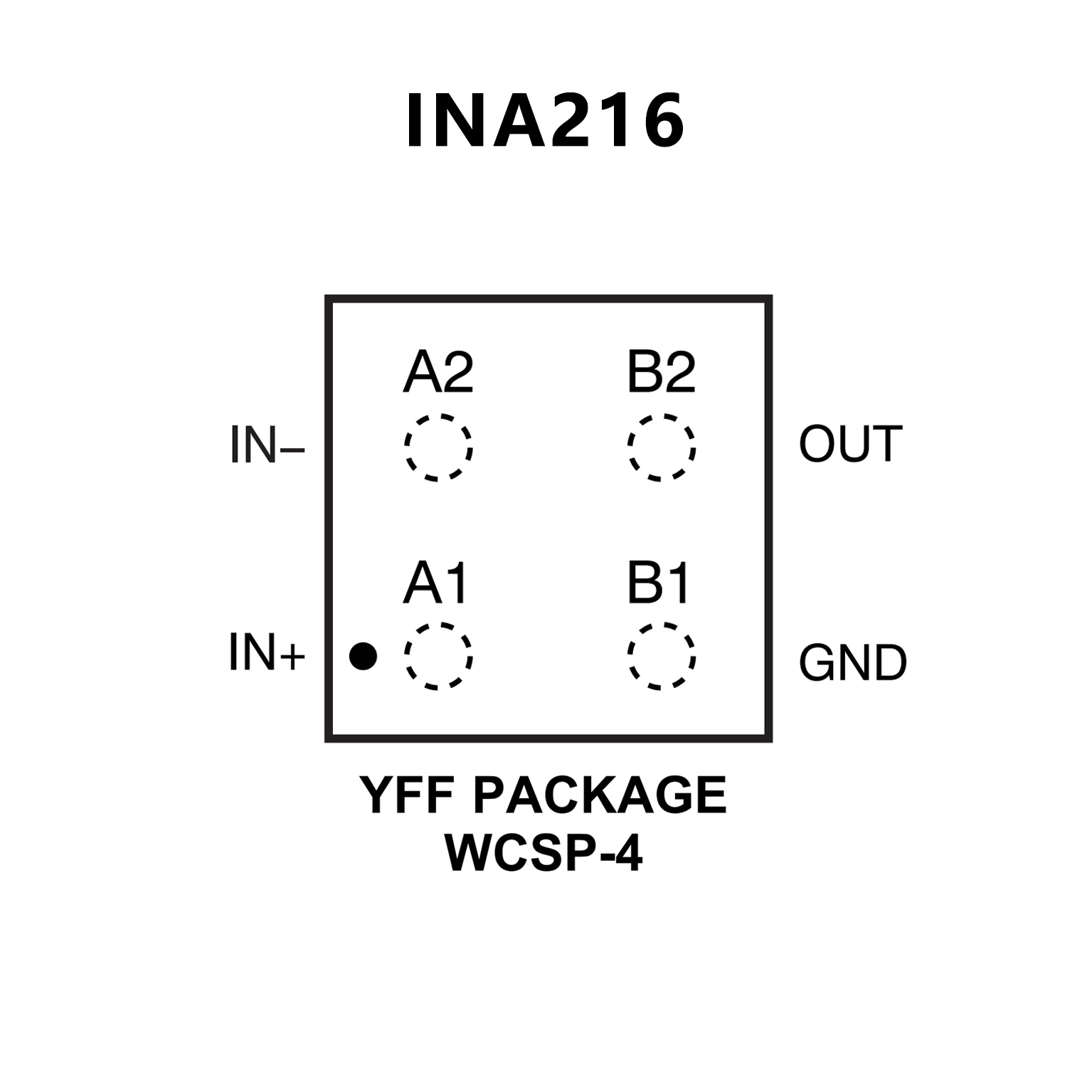

PIN CONFIGUTION
