Nano power operational Amplifier,SGM8141 Replace TP2111.
SGM8141
SGM8141.pdf
SGM8141.pdfFEATURES
? Low Quiescent Current: 380nA (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 5kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and MSOP-8
Packages

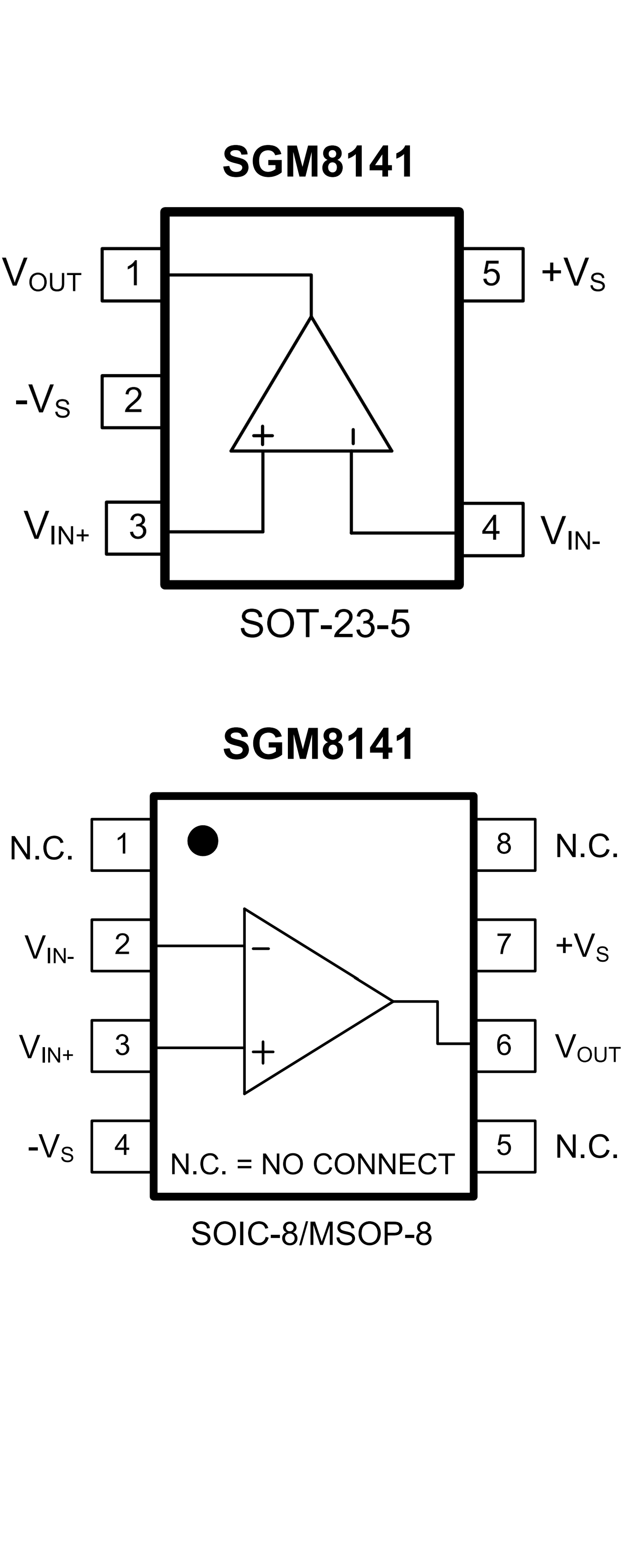

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Ultra-low Supply Current:
300nA Typical / 500nA Maximum per Amplifier
? Stable 10 kHz GBWP with 6 mV/μs Slew Rate
? Offset Voltage: 1.5 mV Maximum
? Ultra-low VOS TC: 0.4 μV/°C
? Ultra-low Input Bias Current: 0.1 fA Typical
? Unity Gain Stable for 1,000 nF Capacitive Load
? High 120 dB Open-Loop Voltage Gain
? Ground-Sensing Input Common-Mode Range
? Outputs Swing Rail-to-Rail
? Outputs Source and Sink 20 mA of Load Current
? No Phase Reversal for Overdriven Inputs
? Ultra-low Single-Supply Operation Down to +1.8V
? Shutdown Current: 3 nA Typical (TP2111N)
? –40°C to 125°C Operation Range
? Robust 8 kV – HBM and 2 kV – CDM ESD Rating
? Green, Popular Type Package

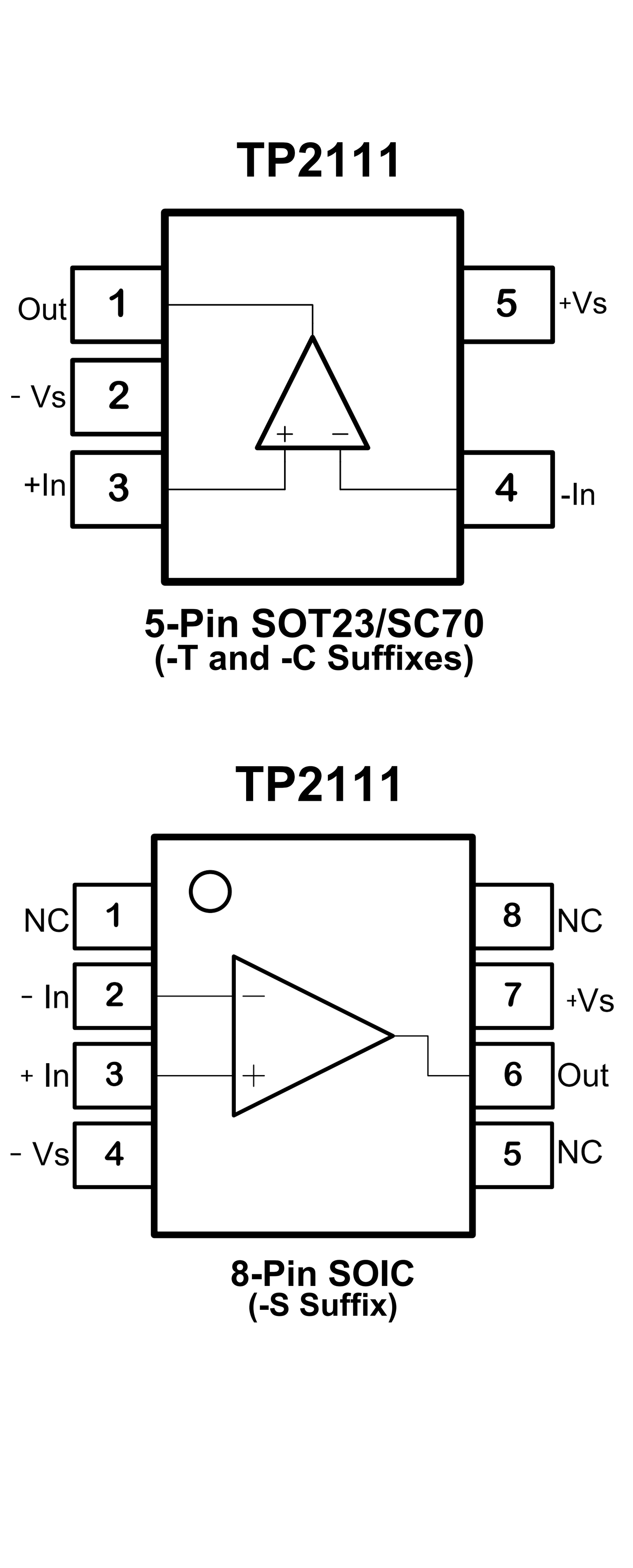

PIN CONFIGUTION
