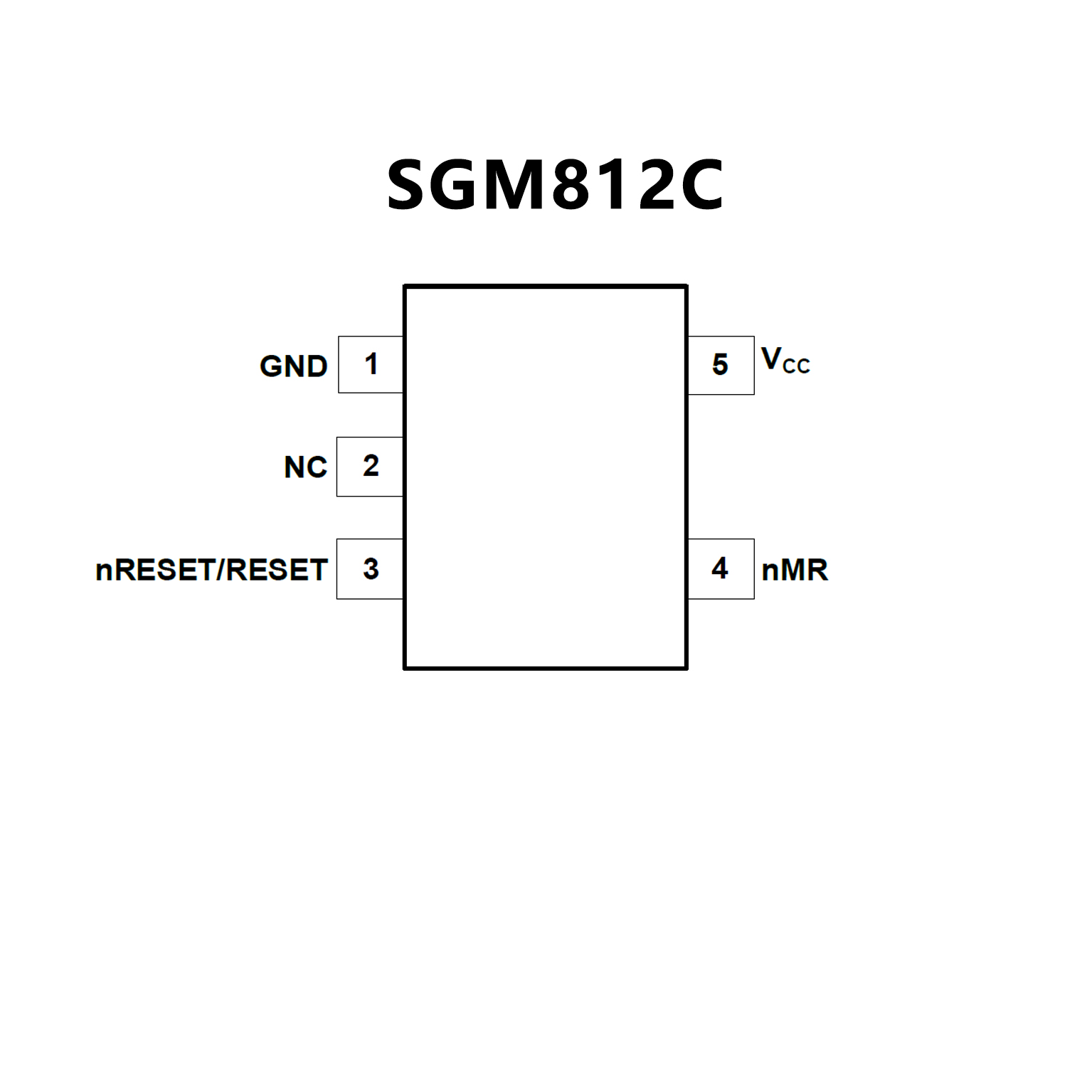

SGM812C.pdf? Superior Upgrade for MAX811/MAX812 and
ADM811/ADM812
? Full Specified over Temperature
? Low Power Consumption: 13μA (TYP)
? Precision Voltage Monitor: 1.8V, 2.5V, 3V,
3.3V and 5V Options
? Reset Assertion Down to 1V VCC
? 150ms (MIN) Power-On Reset
Logic Low nRESET Output (SGM811)
Logic High RESET Output (SGM812)
? Manual Reset Input
? Available in Green SOT-143 and SOT-23-5 Packages
? Integrated Voltage Monitor Increases
System Robustness with Added Manual Reset
? Precision Monitoring of 3V, 3.3V, and
5V Power-Supply Voltages
? 140ms Min Power-On-Reset Pulse Width

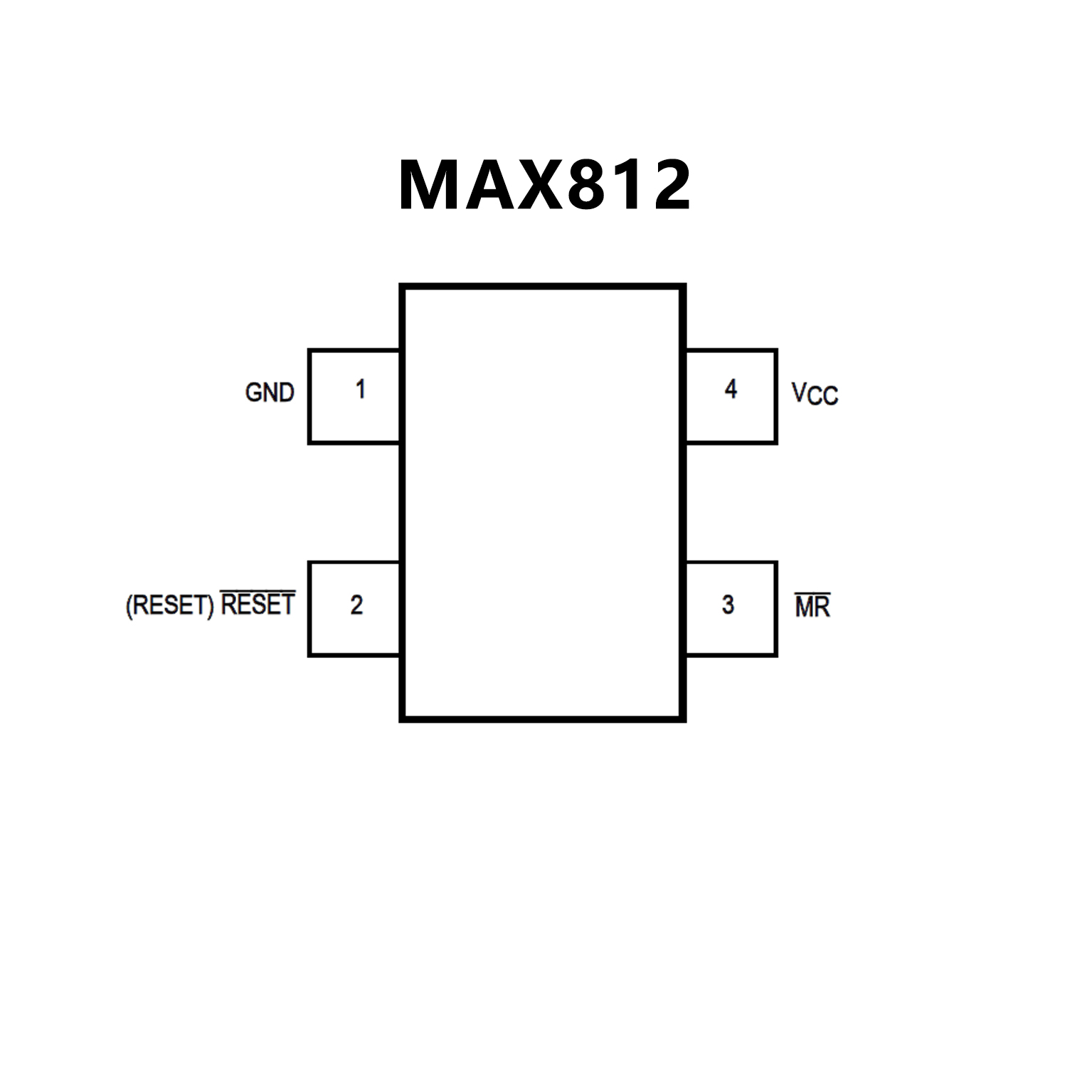

? RESET Output (MAX811), RESET Output(MAX812)
? Guaranteed Over Temperature
? Guaranteed RESET Valid to VCC = 1V (MAX811)
? Power-Supply Transient Immunity
? Saves Board Space
? No External Components
? 4-Pin SOT143 Package
? Low Power Consumption Simplifies
Power-Supply Requirements
? 6μA Supply Current
