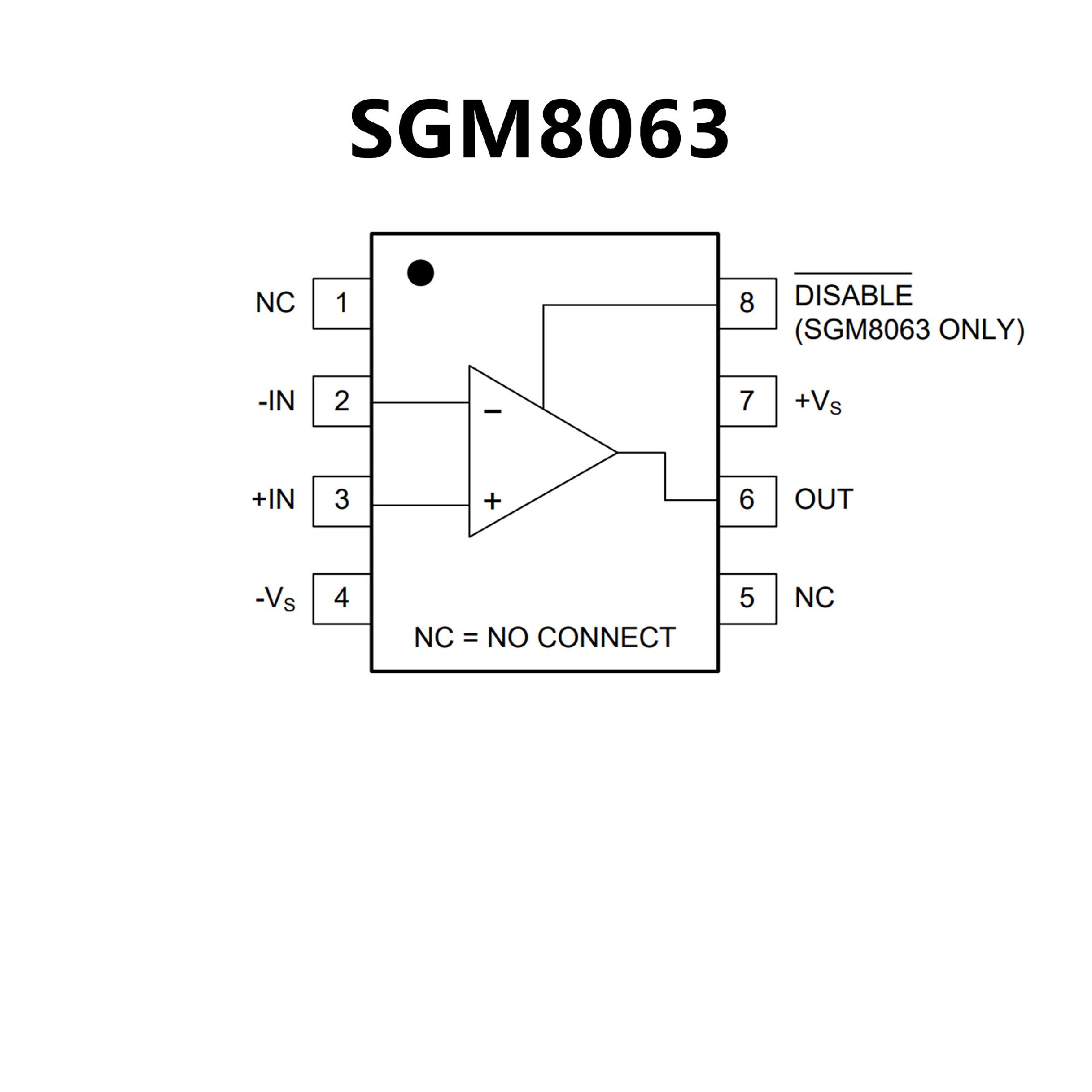

SGM8063.pdf? Low Cost
? Rail-to-Rail Output
? Input Offset Voltage: 8mV (MAX)
? High Speed:
500MHz, -3dB Bandwidth (G = +1)
420V/μs, Slew Rate
16ns Settling Time to 0.1% with 2V Step
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.2V to 3.8V with VS = 5V
? Excellent Video Specs (RL = 150Ω, G = +2):
Gain Flatness: 0.1dB to 80MHz
Diff Gain: 0.015%, Diff Phase: 0.05 Degree
? Low Supply Current:
8.2mA/Amplifier (TYP)
75μA Shutdown Current for SGM8063
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8061 Available in Green SOT-23-5 and
SOIC-8 Packages
SGM8062 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8063 Available in Green SOT-23-6 and
SOIC-8 Packages

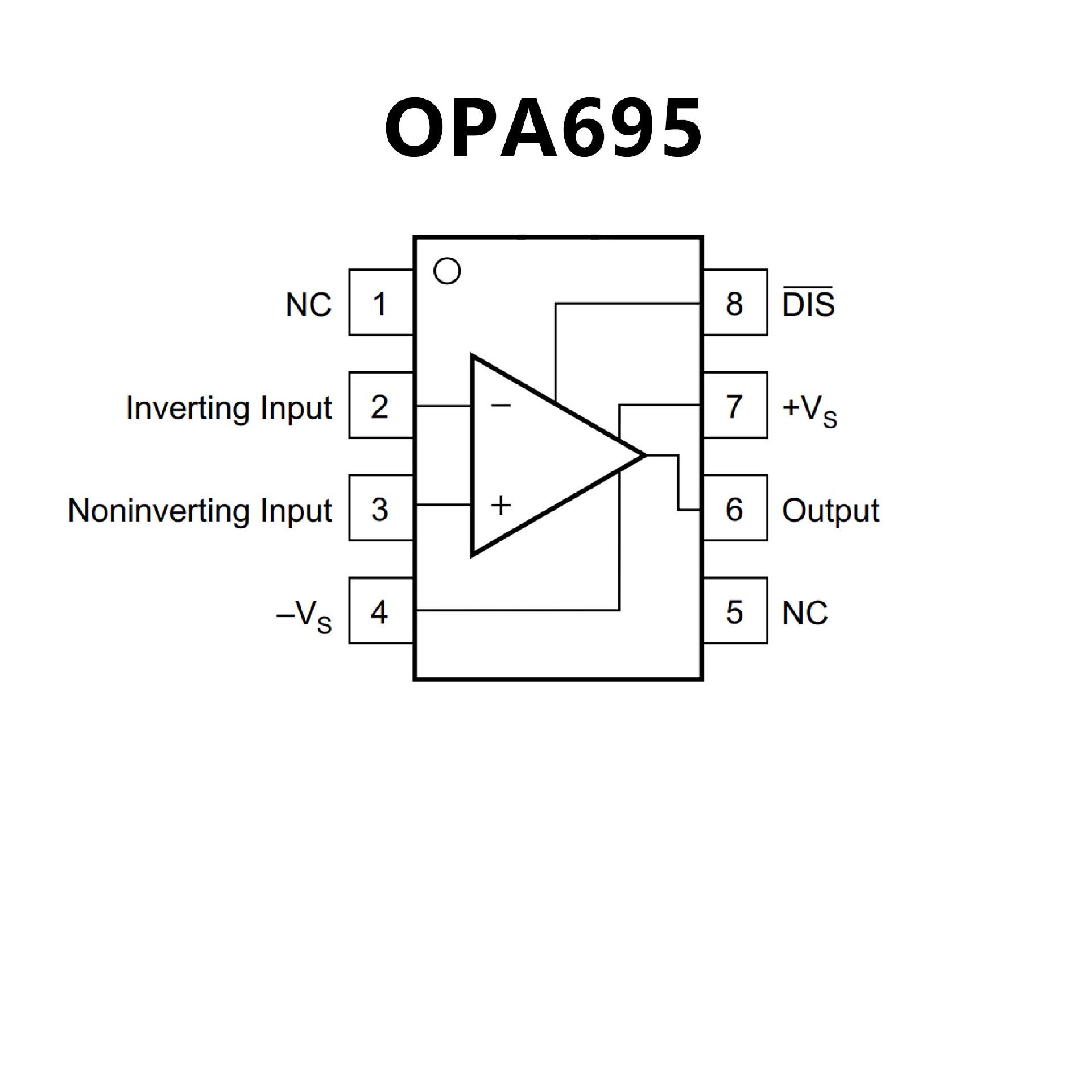

? Gain = +2 Bandwidth (1400 MHz)
? Gain = +8 Bandwidth (450 MHz)
? Output Voltage Swing: ±4.2 V
? Ultra-High Slew Rate: 4300 V/μs
? 3RD-Order Intercept: > 40 dBm (f < 50 MHz)
? Low Power: 129 mW
? Low Disabled Power: 0.5 mW
? Packages: SOIC-8, VSSOP-8, SOT23-6
