High Speed Operational Amplifier, Replace ADA4891-2
SGM80582
SGM80582.pdf
SGM80582.pdfFEATURES
● Unity-Gain Bandwidth: 220MHz
● Wide Bandwidth: 100MHz GBP
● High Slew Rate: 160V/μs
● Low Noise: 7nV/ Hz at 1MHz
● Rail-to-Rail Input and Output
● High Output Current: 150mA (TYP)
● Excellent Video Performance:
- Diff Gain: 0.01%, Diff Phase: 0.1°
- 0.1dB Gain Flatness: 30MHz
● Low Input Bias Current: 2pA
● Quiescent Current: 4.5mA/Amplifier (TYP)
● 2.5V to 5.5V Single Supplies or ±1.25V to ±2.75V
Dual Power Supplies
● -40℃ to +125℃ Operating Temperature Range
● Small Packaging:
MSOP-8 and SOIC-8 Packages

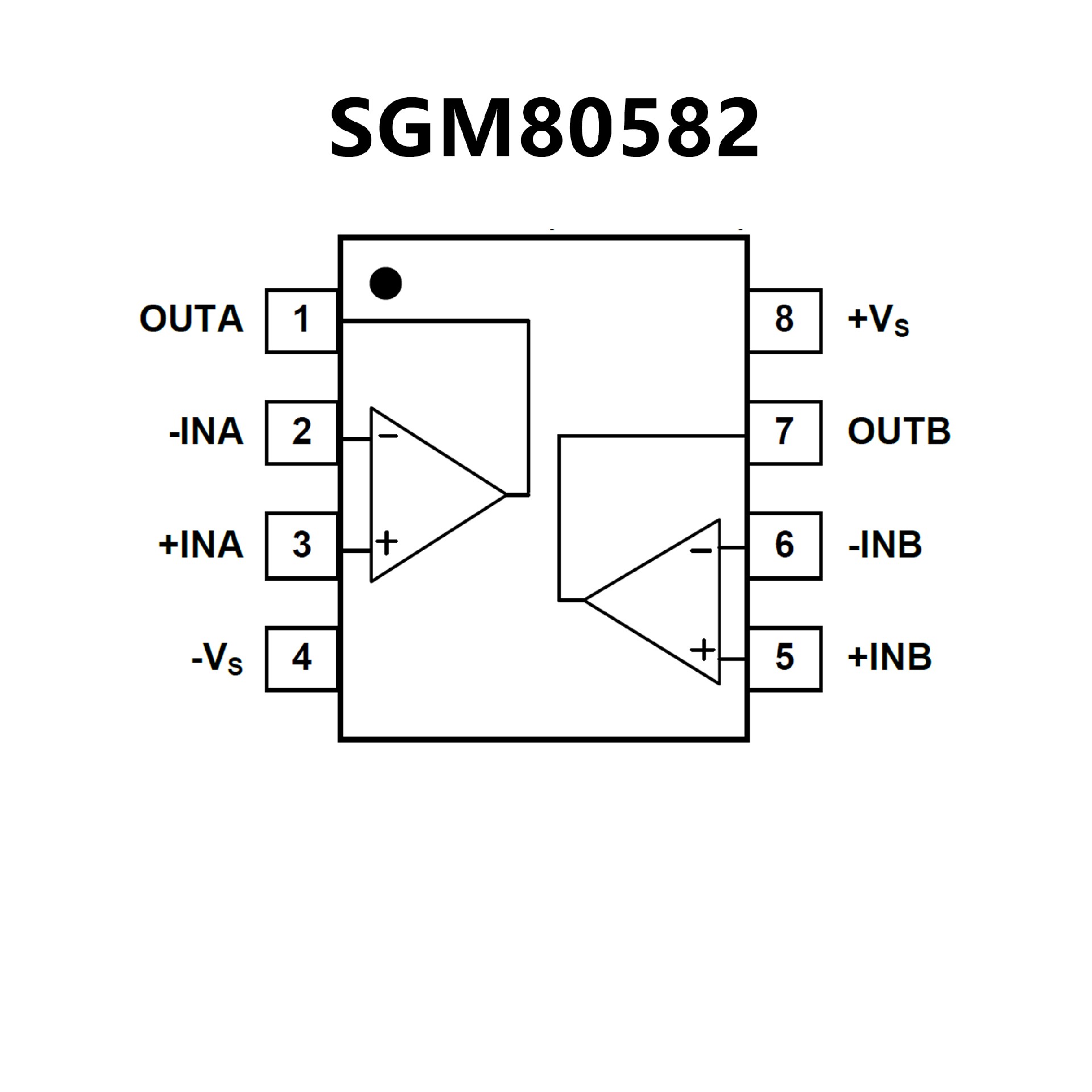

PIN CONFIGUTION
優勢替代
FEATURES
● Qualified for automotive applications
● High speed and fast settling
- 3dB bandwidth: 220 MHz (G = +1)
- Slew rate: 170 V/μs
- Settling time to 0.1%: 28 ns
● Video specifications (G = +2, RL = 150 Ω)
- 0.1 dB gain flatness: 25 MHz
- Differential gain error: 0.05%
- Differential phase error: 0.25°
● Single-supply operation
- Wide supply range: 2.7 V to 5.5 V
- Output swings to within 50 mV of supply rails
● Low distortion: 79 dBc SFDR at 1 MHz
● Linear output current: 125 mA at ?40 dBc
● Low power: 4.4 mA per amplifier
PIN CONFIGUTION
