Nano Power Operational Amplifier, SGM8044 Replace TP2124.
SGM8044
SGM8044.pdf
SGM8044.pdfFEATURES
? Low Quiescent Current: 670nA/Amplifier (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 15kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-14, TSSOP-14 and
TQFN-3×3-16L Packages
PIN CONFIGUTION
優勢替代
FEATURES
? Supply Current: 950nA Maximum /Amplifier
? Stable 18kHz GBWP with 10mV/μs Slew Rate
? Offset Voltage: 1.5mV Maximum
? Ultra-low VOS TC: 0.5μV/°C
? Ultra-low Input Bias Current: 1fA Typical
? High 120dB Open-Loop Voltage Gain
? Unity Gain Stable for 1,000nF Capacitive Load
? Rail-to-Rail Input/Output Voltage Range
? Outputs Source and Sink 20mA of Load Current
? No Phase Reversal for Overdriven Inputs
? Ultra-low Single-Supply Operation Down to +1.8V

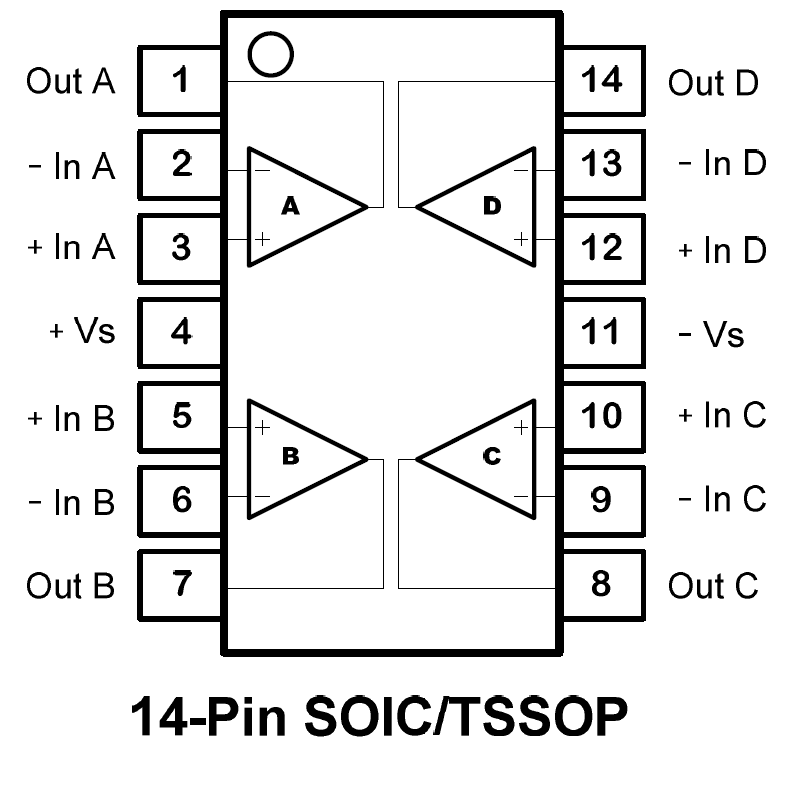

PIN CONFIGUTION
