Nano Power Operational Amplifier, Replace OPA369
SGM8041
SGM8041.pdf
SGM8041.pdfFEATURES
? Low Quiescent Current: 710nA (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 14.5kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5, SOIC-8 and MSOP-8
Packages

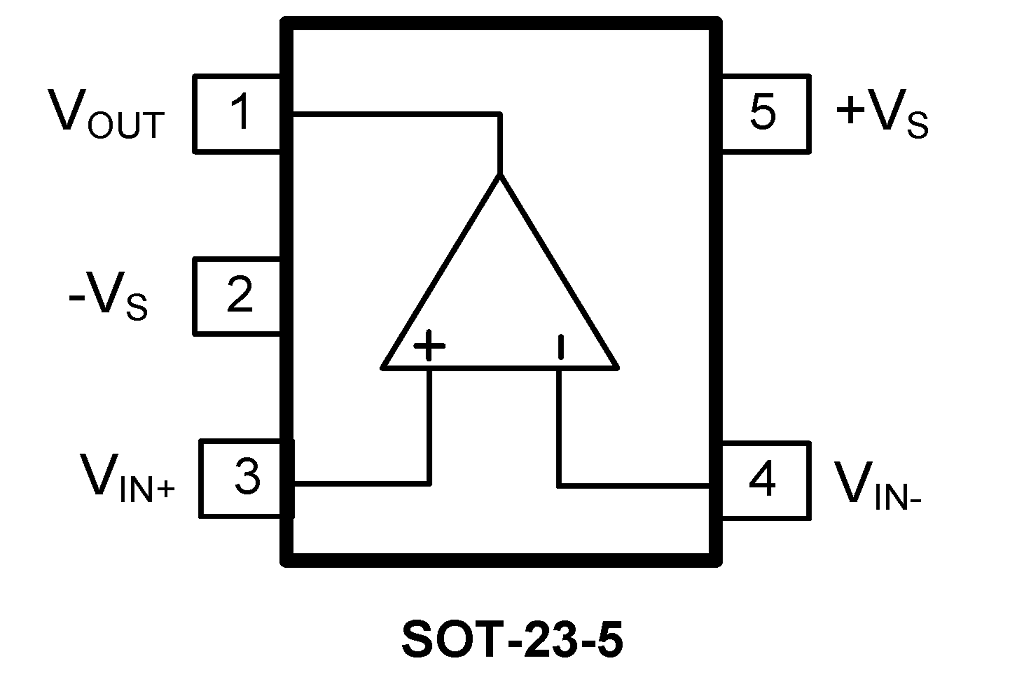

PIN CONFIGUTION
優勢替代
FEATURES
? nanoPOWER:
– OPA369: 800nA
? LOW OFFSET VOLTAGE: 250mV
– ZERO-CROSSOVER
? LOW OFFSET DRIFT: 0.4mV/°C
? DC PRECISION:
– CMRR: 114dB
– PSRR:106dB
– AOL: 134dB
? GAIN-BANDWIDTH PRODUCT: 12kHz
? SUPPLY VOLTAGE: 1.8V to 5.5V

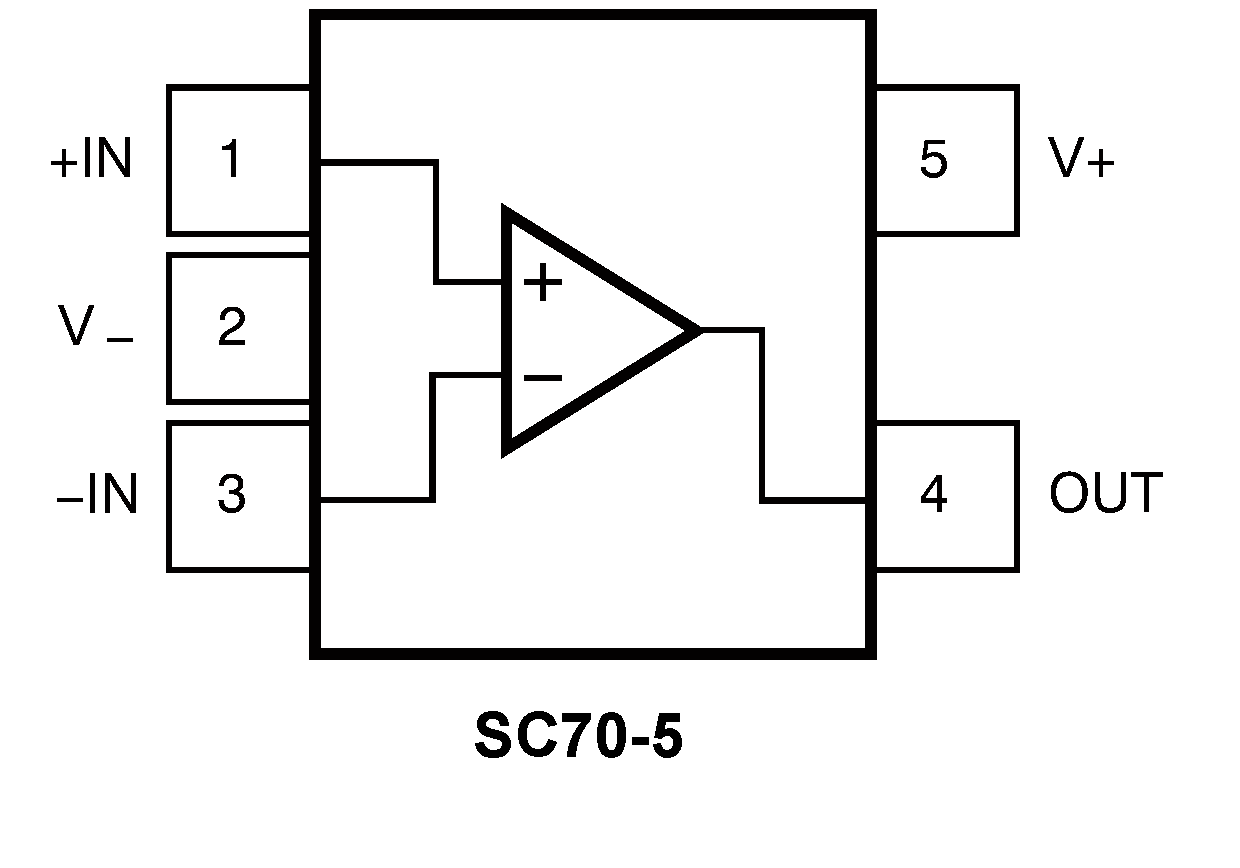

PIN CONFIGUTION
