SGM803B-SXN3G.pdf? Precision Voltage Monitor: 3V, 3.3V and 5V Options
? Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
? Fully Specified over Temperature
? VCC Transient Immunity
? Low Power Consumption: 300nA (TYP)
? Reset Assertion Down to 1V VCC
? 150ms Power-On Reset (MIN)

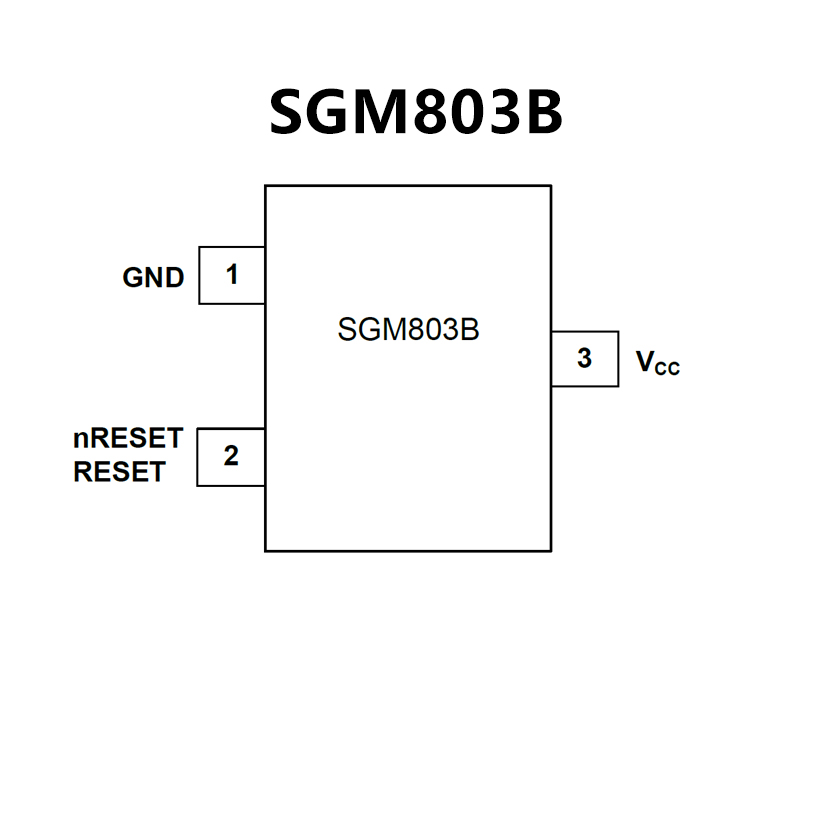

Open-Drain nRESET Output (SGM803B)
Push-Pull nRESET Output (SGM809B)
Push-Pull RESET Output (SGM810B)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging
SGM803B Available in SOT-23-3 and SOT-23
SGM809B Available in SOT-23-3 and SOT-23
SGM810B Available in SOT-23-3 and SOT-23
? Ensured RESET/RESET for VDD = 0.7 V to 6 V
? Fixed time delay: 40 μs, 10 ms, 50 ms, 100 ms,
200 ms, 400 ms
? Supply current (IDD): 250 nA (typical)
1 μA (maximum for VDD = 3.3 V)
? Output topology:
TLV809E: push-pull, active-low

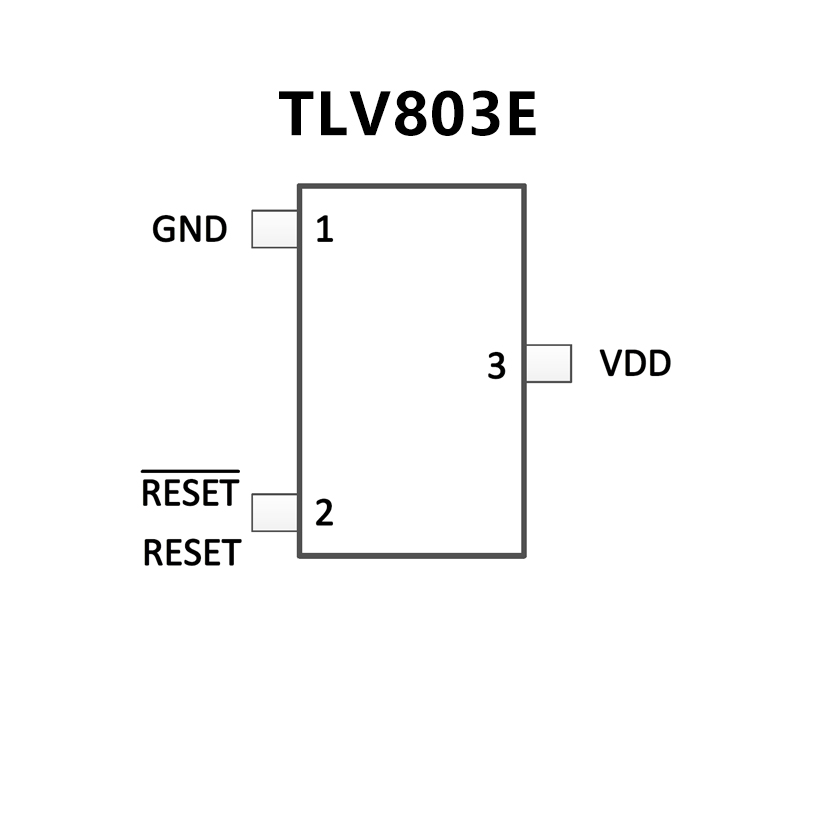

TLV803E: open-drain, active-low
TLV810E: push-pull, active-high
? Under voltage detection:
High accuracy: ±0.5% (typical)
(VIT–): 1.7 V, 1.8 V, 1.9 V, 2.25V, 2.4 V, 2.64 V,
2.93 V, 3.08 V, 3.3V, 4.2V, 4.38 V, 4.55V, 4.63 V
? Package:
SOT23-3 (DBZ) (with pin 1 = GND)
SOT23-3 (DBZ) (with pin 1 = RESET/RESET)
SOT23-3 (DBZ) (with pin 3 = GND)
SC-70 (DCK)
X2SON-5 (DPW)
? Temperature range: –40°C to +125°C
? Pin-to-pin compatible with MAX803/809/810,
APX803/809/810
