Octal Bus Transceivers with 3-State Outputs,SGM7SZ245XTS20G Replace SN74AHCT245.
SGM7SZ245XTS20G
SGM7SZ245XTS20G.pdf
SGM7SZ245XTS20G.pdfFEATURES
? Wide Operating Voltage Range: 1.8V to 5.0V
? High-Current 3-State Outputs Drive Bus
LinesDirectly or Up to 15 LSTTL Loads
? Low Power Consumption, ICC: 13μA (MAX)
? Typical tPD = 8.9ns at 5.0V
? ±20mA Output Drive at 5.0V
? Low Input Current: ±8μA (MAX)
? Available in Green TSSOP-20, TQFN-5.5×3.5-24Land
TQFN-3×3-20L Packages

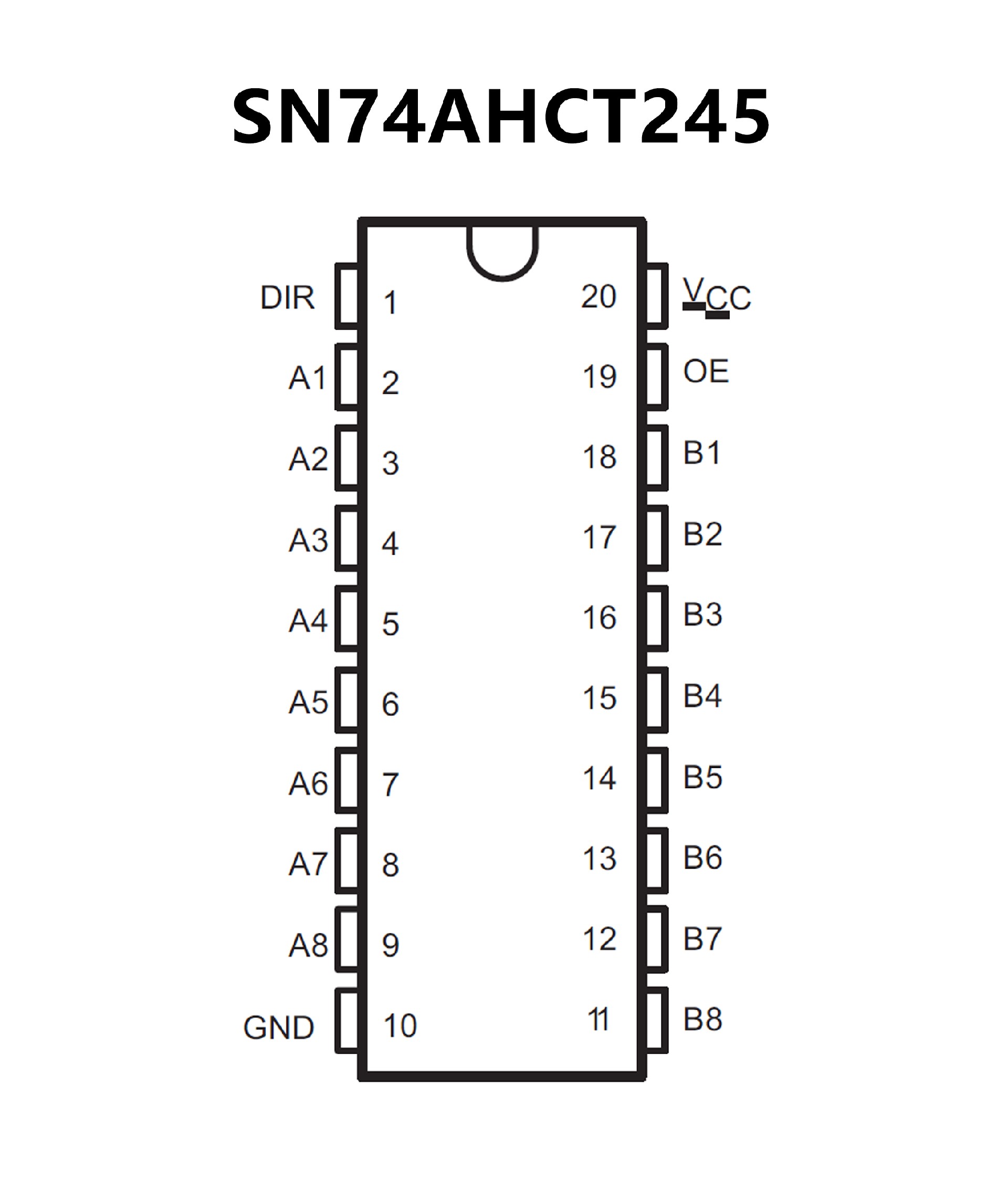

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Inputs Are TTL-Voltage Compatible
? Latch-Up Performance Exceeds 250 mA Per JESD 17
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
? On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production Processing
Does Not Necessarily Include Testing of All Parameters.

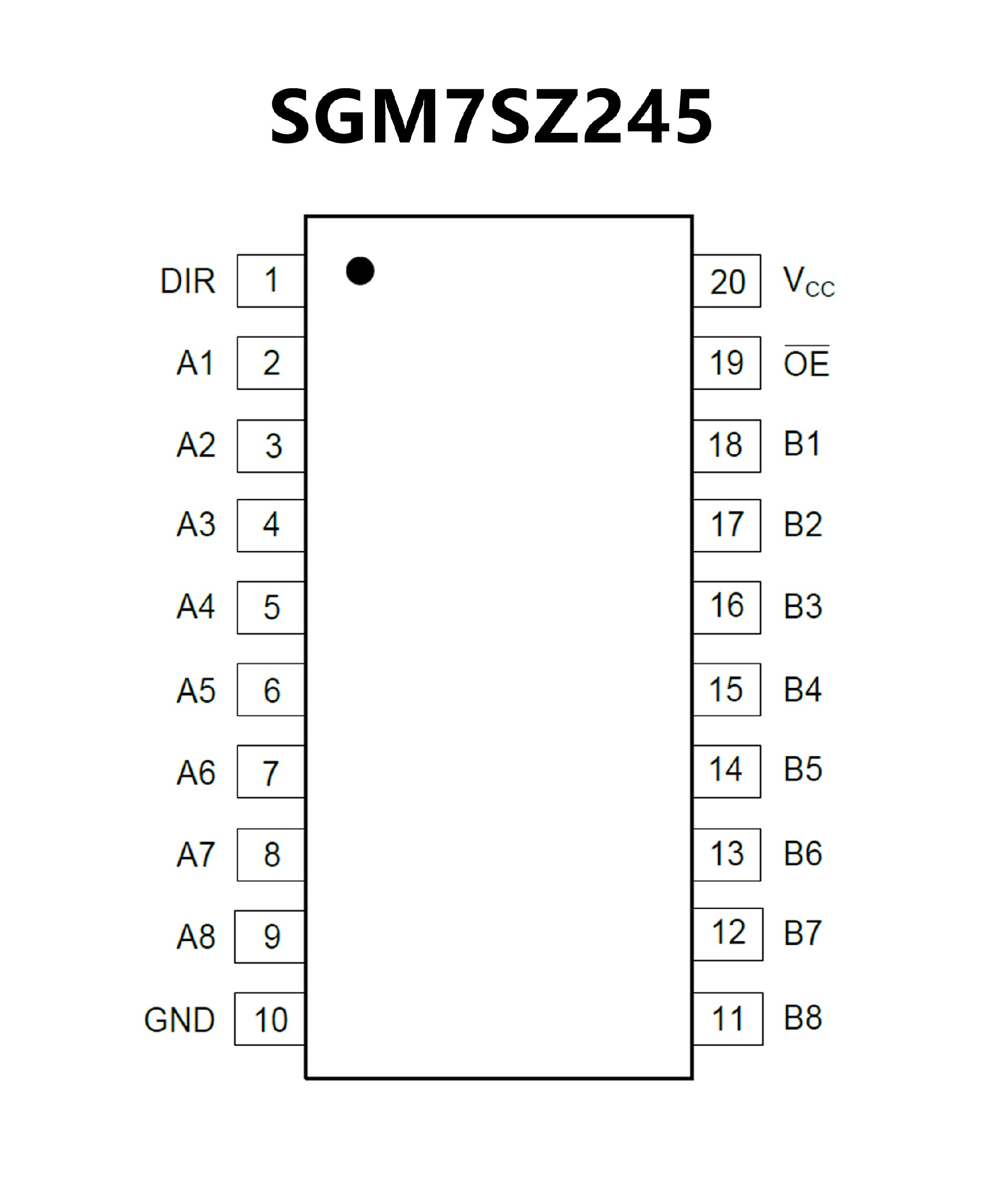

PIN CONFIGUTION
